KH754 UV-VIS Spectrophotometer

Name: KH754 UV-VIS Spectrophotometer
Brand: KINGDAK
SKU: 141460642
Availability: InStock

Shanghai Kingdak Industries Co., Ltd.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shanghai, China

Brand Name:

KINGDAK

Model Number:

KH754

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shanghai, China

Brand Name KINGDAK

Model Number KH754

Size 455*430*220

Weight 17.5kg

Wavelength Range 325~1100nm

Specifications

USB data communication
Entry wavelength by keyboard
Internal 6 common working wavelength
ISO

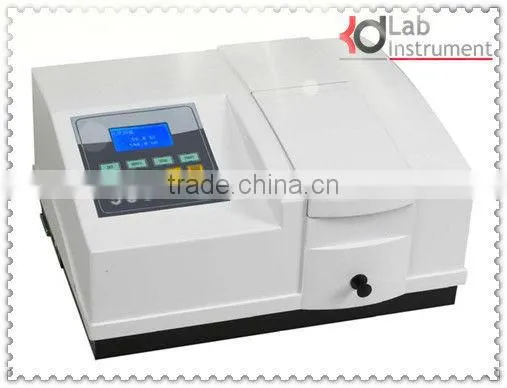

KH754 UV-VIS Spectrophotometer

Features:

High UV-Vis performance between 190 and 1100 nm

Entry wavelength by keyboard

Single-point curve calibration and multi-point curve calibration (up to 12 points)

Display of fitting degree of curve fitting and concentration data with up to 50 sets of curve parameters storage

Display of concentration data with up to 200 sets of data storage

Concentration factor setting and concentration direct reading

Dark current calibration / wavelength calibration/system clock management

USB data communication

Software: UV-Solution 2.0

Specification:

Technique parameter
Optical System	Single beam, C-T type, 1200 lines/mm grating
Detector	Silicon photo diode
Monitor	128×64 LCD
Light Source	Tungsten lamp (socket type, 20W / 12V, 2000 hours) Deuterium lamp (1000 hours) Could set the switch wavelength of light
Spectral Bandwidth	2nm
Wavelength Range	190~1100nm( step interval 0.1nm)
Wavelength Accuracy	±1.0nm( Auto-calibration when starting )
Wavelength Repeatability	0.5nm
Stability	±0.002A/h
Stray Light	≤0.15%T(at 220,340nm)
Photometric Range	T:-1.0~200.0% ,A:-0.5~3.000Abs,F:0~9999,C:0~9999
Photometric Accuracy	±0.5%T
Photometric Repeatability	0.2%T
Bright current	≤0.5%T
Dark current	≤0.2%T
Data Output	USB interface, LPT parallel printer interface
Power Requirement	220V±10% 50Hz,150VA
Dimensions	455×430×220 mm
Gross Weight	22.5 kg
Net Weight	17.5kg
