Specifications
USB data communicationEntry wavelength by keyboard
Internal 6 common working wavelength
ISO

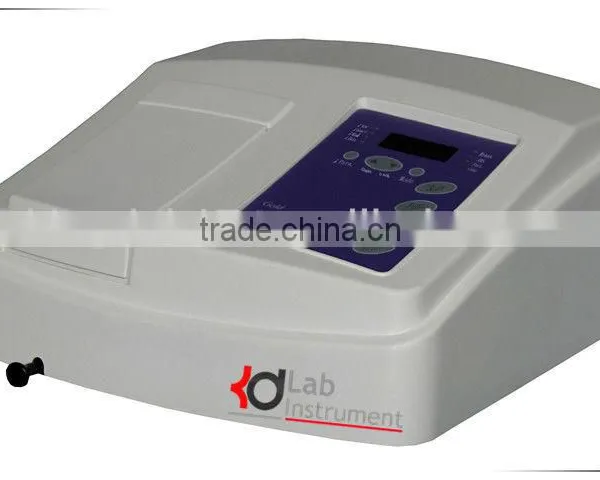

GS53 GS54 UV-VIS spectrophotometer
DESCRIPTION
1.Japanese Hamamatsu L2D2 steady,high-luminosity,more than 3000hours lifetime Deuterium lamp,Japanese more than 10000hours lifetime Halogen-Tungsten Lamp,Hamamatsu 1226 UV-receiver;patent compages technology of lamp parts.
2.Automatically wide range of wavelength scanning & dynamics scanning.
3.Non-spherical optical path of light source, CT grating monochromator.
4.Large sample compartment,4-positions sample cuvette rack,optional 5cm optical length rectangular cuvettes.
5.With a special software for spectrogram scanning & quantitative data processing , operating prompt with menu .
6.built-in RS-232C serial port interface & standard parallel print port .
Gold S54 Wavelength accuracy:±2nm(GS53);±1nm(GS54)
Wavelength range:200~1000nm(GS53;GS54)
Bandwidth:4nm(GS53);2nm(GS54)
FEATURE
The Gold S53/54 UV-Visible spectrophotometer is a 2nm spectral slit width concise easy-operated general use spectrophotometric instrument with wide rang of wavelength. It can measure transmittance,absorbance and direct reading within the wavelengths of 200-1000 nm. This instrument is widely used in medical science and hygiene, clinical analysis, biochemistry, petroleum chemical industry, environmental monitoring and quality control department for qualitative and quantitative analyses.
SPECIFICATION
Optical system Diffraction grating C-T monochromator
Wavelength range 200~1000nm(GS53; GS54)
Light source Hamamatsu L2D2 long life high stable deuterium & tungsten lamp combination
Receiver: Hamamatsu 1226 UV receiver
Wavelength accuracy ±2nm(GS53) ; ±1nm(GS54)
Wavelength repeatability 0.5 nm
Transmittance accuracy ±0.5% (NBS SRM930D)
Transmittance repeatability 0.3%
Spectrum bandwidth 2nm
Stray light: ≤0.2%(360nm, NaNO2) (220nm, NaI)
Display scales: (T) 0.0~199.9%
(A) -0.3~2.999
(F) 1~9999
(C) 0~9999
Power 1Hz±22V 50Hz±source: 220V
RS-232C serial port interface & standard parallel print port
Standard Package:
1.Gold S53/54 Spectrophotometer 1 set
2.1cm rectangular cuvette(crystal) 1 case(2 pcs)
3.1cm rectangular cuvette(glass) 2 case(4 pcs)
4.4 position cuvette rack 1 pc
5.Power cable 1 pc
6.Operating manual 1 pc
7.Certification of quality 1 pc
8.Packing list 1 pc
9.Fuse (2A) 2 pcs
10.Qualitative-quantitative data processing software package of spectrophotometer for matching with PC
Optional Accessories & Spare Parts
Fuse (2A/3A)
Light source with pre-aligned lamp rack( halogen lamp, deuterium lamp)
Rectangular cuvette 1, 2, 3, 5 cm(glass),1 cm(quartz hermetical)
5 cm optical path cuvette rack
RS232C serial interface cable
Optional PC
Jet printer
Printer cable
10.Praseodymium-neodymium optical filter
11.Holmium oxide optical filter
Payment Terms
1. All the payments required before
2.Time of delivery: within 7 days after receipt of payment
3.Term of payment: company account or west union
4.100% T/T Payment in advance
5.Validity: 30 working days
