Specifications
1. Various type & Convenient installation2. Reasonable price and Reliable quality3. Energy conservation and environment
1. Various type & Convenient installation
2. Reasonable price and Reliable quality
3. Energy conservation and environment protection
4. All products through the ISO certification

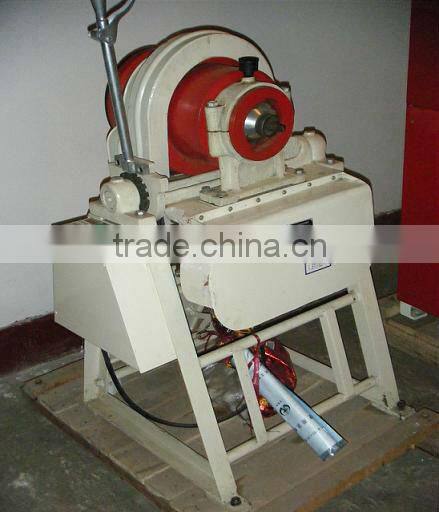

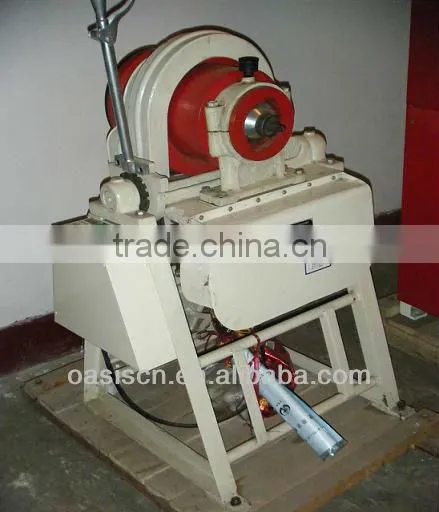

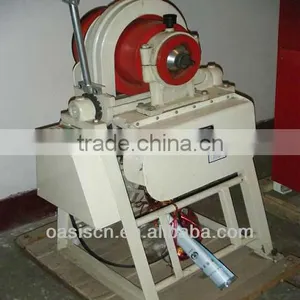

XMB Rod Mill is applicable to lab. wet fine grinding of ore and other materials. Steel ball may be used instead of steel rod in the ball mill. In rod grinding, fine product particle fractions are relatively uniform with rare occurrence of over grinding and high efficiency. In general, rod grinding is introduced for test on ore for separation and manual fine grinding of placer materials.
The grinding equipment, a large amount of feeding, discharging, electric cylinder control, no manual, can also be replaced by steel balls to use bar
Model |
Unit |
XMB160/200 |
XMB200/400 |
XMB240/300 |
|||||||||
drum size |
mm |
160/200 |
200/240 |
240/300 |
|||||||||
Volume |
L |
4.02 |
7.5 |
13.57 |
|||||||||
Capacity |
g |
300-800 |
500-1000 |
1000-5000 |
|||||||||
Feed size |
mm |
2 |
2 |
3 |
|||||||||
Output size |
mm |
0.074 |
0.074 |
0.074 |
|||||||||
Drum speed |
r/min |
120 |
110 |
96 |
|||||||||
rower |
kw |
0.25 |
0.55 |
0.55 |
|||||||||
|
millingmedium
|
steel bar |
diameter |
Mm |
18 |
20 |
15 |
18 |
22 |
15 |
18 |
22 |
||
ength |
Mm |
185 |
225 |
286 |
|||||||||
|
quantity
|
|
10 |
9 |
17 |
9 |
9 |
33 |
13 |
6 |
||||
|
weight
|
Kg |
3.55 |
4.09 |
4.9 |
4.2 |
4.9 |
12.7 |
7.48 |
5.0 |
||||
steel ball |
diameter |
mm |
20 |
25 |
30 |
20 |
25 |
30 |
20 |
25 |
30 |
||
|
quantity
|
100 |
26 |
5 |
136 |
52 |
29 |
290 |
115 |
37 |
||||
|
weight
|
kg |
3.3 |
1.7 |
0.56 |
4.4 |
3.3 |
3.7 |
9.57 |
7.37 |
4.1 |
|||
Overall dimensions |
mm |
1052/530/1160 |
1052/615/1160 |
1052/615/1160 |
|||||||||
Weight |
kg |
91 |
150 |
162 |
|||||||||
