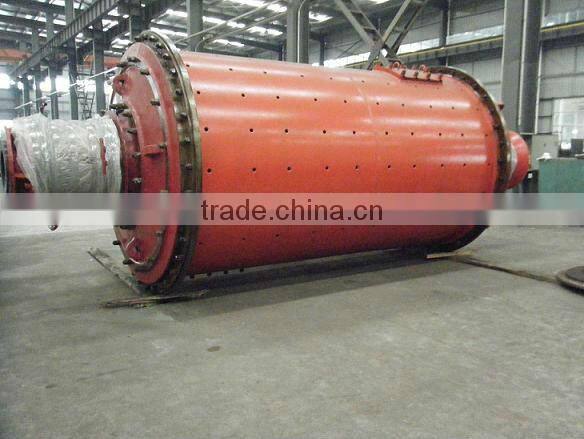

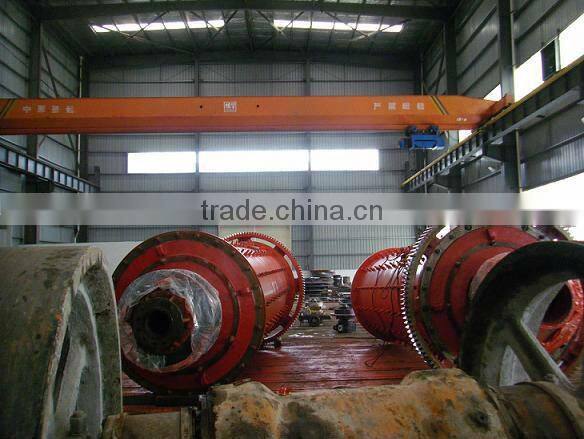

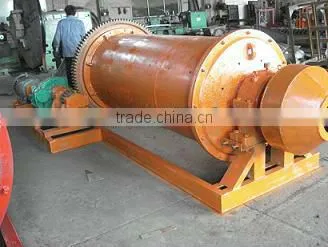

Help CenterHigh Efficiency Ball Mill/Ore Powder Grinder/Cone Energy Ball Mill/Industry Ball Mill/Tube Ball Mil
Related Products
-
Rectangle Compartment Side Way Action Type Jig/aw-Tooth Wave Jig/Saw Tooth Wave Duplex Jig/Saw-Tooth Wave Ladder Jig/Gravity JigUS$ 1 - 9,000MOQ: 1 Set -
Rectangle Compartment Side Way Action Type Jig/aw-Tooth Wave Jig/Saw Tooth Wave Duplex Jig/Saw-Tooth Wave Ladder Jig/Gravity JigUS$ 1 - 9,000MOQ: 1 Set
-
Spiral Concentrator/Gravity Concentration Equipment/Gravity Separation Plant/Gravity Separation Process/Gravity Mineral ConcentUS$ 1 - 9,000MOQ: 1 Set
-
Mix Leaching Tank/Mineral Mixing Tank/Mineral Product Agitation Barrel/ Ore Slurrry Agitating Vessel /Economical Agitating VesseUS$ 1 - 9,000MOQ: 1 Set
-
Hydro Cyclone Separator/ Hydro Cyclone Cluster/ Mineral Hydro-CycloneUS$ 1 - 9,000MOQ: 1 Set
1. Longer linning service life
2. Low energy consuming
3. Energy conservation and environment protection
4. All products through the ISO certification
The device is suitable for mineral processing, chemical, coal, cement, refractory materials, grinding and other departments to do
The series MQZ-type ball mill is a technical innovation
The characters of the tube energy-saving ball mill
The discharging part is designed as a cone type ,which increase the capacity and enforces the material at the discharging end to be reclassified, and the balls are reclassified too, that is the nearer to the end, the smaller are the balls ,increasing repeated milling effect.
Model |
Unit |
MQZ0909 |
MQZ0918 |
MQZ1224 |
MQZ1228 |
MQZ1530 |
MQZ1836 |
MQZ2442 |
Diameter Shell |
mm |
900 |
900 |
1200 |
1200 |
1500 |
1800 |
2400 |
Length Shell |
mm |
900 |
1800 |
2400 |
2400 |
3000 |
3600 |
4200 |
Revolution Shell |
r/min |
37.1 |
37.1 |
31.7 |
31.7 |
30.9 |
26.8 |
23 |
Effective Volume |
m3
|
0.45 |
0.9 |
2.2 |
2.5 |
5 |
12.6 |
16.2 |
Load of ball |
t |
0.9 |
1.5 |
3.96 |
4.24 |
8.6 |
23.5 |
31 |
Capacity |
t/h |
0.24-2.14 |
0.22-1.07 |
0.26-6.15 |
0.3-6.5 |
2.8-9 |
9-44 |
11-119 |
Power |
kw |
7.5 |
11 |
45 |
55 |
80 |
180 |
320 |
Weight |
t |
4.7 |
6.1 |
11.7 |
12.7 |
17.7 |
43.7 |
69 |
