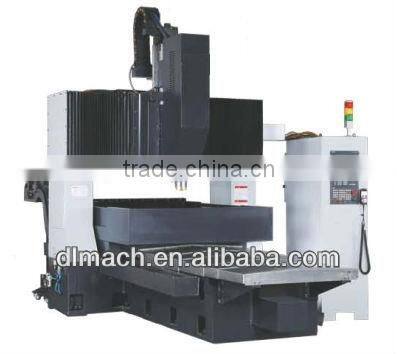

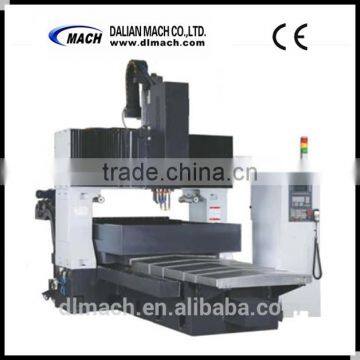

GDC1216 CNC Gantry-type milling & drilling machining center
1.Specification:
Specifications |
Units |
GDC1216 |
GDC1220 |
GDC1230 |
X-axis travel |
mm |
1600 |
2000 |
3000 |
Y-axis travel |
mm |
1250 |
1250 |
1250 |
Z-axis travel |
mm |
500 |
500 |
500 |
Worktable size |
mm |
1250×1600 |
1250×2000 |
1200×3000 |
Max.load of worktable |
kg |
1600 |
2200 |
2400 |
Number of T-slot |
qty |
7 |
7 |
7 |
Width of T-slot |
mm |
22 |
22 |
22 |
Distance between the adjacent T-slot |
mm |
160 |
160 |
160 |
Distance between the two columns |
mm |
1600 |
1600 |
1600
|
Distance from spindle nose to worktable surface |
mm |
150~650 |
150~650 |
150~650 |
Spindle taper |
|
ISONO.50 |
ISONO.50 |
ISONO.50 |
Feed speed |
mm/min |
4000 |
4000 |
4000 |
X,Y axis rapid feed |
mm/min |
12000 |
12000 |
12000 |
Z axis rapid feed |
mm/min |
8000 |
8000 |
8000 |
Spindle motor power(continuous/S6-60%) |
kW |
12 |
12 |
12 |
Spindle speed |
rpm |
10~3000 |
10~4000 |
10~4000 |
Torque of spindle |
N.m |
230 |
230 |
230 |
Positioning accuracy |
mm |
±0.015 |
±0.015 |
±0.015 |
Repeat positioning accuracy |
mm |
0.0075 |
0.0075 |
0.0075 |
Machine weight |
kg |
10000 |
11500 |
15000 |
Standard configuration:
1.SIEMENS 828D CNC system
2.Tool magazine capability 10 tools
3.Chain-type chip removal system
Optional configuration:
1.FANUC 0i MD CNC system
2.Rotary-type tool magazine capability 24 tools
3.Spindle system with ZF gearbox
4.Tool inner cooling function

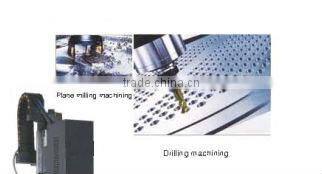

2. Parts of Machine:
3. About our company:
We are one of biggest manufacturer of producing CNC milling machine, Universal Milling Machine, CNC Lathe, etc in China. Our factory entered the top 8 machine tool builders in the world. Our universal milling machine sell to more than 100 countries and regions worldwide
....
