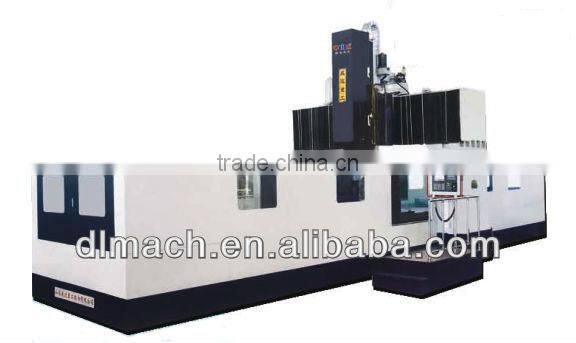

GMC2040 CNC fixed beam gantry-type machining center
1.Specification:
GMC2040 CNC fixed beam gantry-type machining center | |||
| Specifications | Units | GMC2040 | |
| X-axis travel | mm | 4200 | |
| Y-axis travel | mm | 2500 | |
| Z-axis travel | mm | 1000 | |
| Worktable size | mm | 2000×4000 | |
| Max. load of worktable | kg | 12000 | |
| Number of T-slot | qty | 9 | |
| Width of T-slot | mm | 28 | |
| Distance between the adjacent T-slot | mm | 200 | |
| Distance between the two colums | mm | 2600 | |
| Distance from spindle nose to worktable surface | mm | 200~1200 | |
| Spindle taper | BT50 | ||
| Feed speed | X,Y axis | mm/min | 1~4000 |
| Z axis | mm/min | 1~2000 | |
| Rapid speed | X,Y axis | mm/min | 12000 |
| Z axis | mm/min | 8000 | |
| Spindle moter power | kw | 18.5/22 | |
| Spindle speed | rpm | 30~3200 | |
| Positioning accuracy X,Y,Z | mm | ±0.032/0.0280.022 | |
| Repeat positioning accuracy X,Y,Z | mm | ±0.015/0.014/0.012 | |
Standard configuration:
1.FANUC 0i MD CNC system
2.Chain-type tool magazine capability 32 tools
3.Transverse helical chip conveyor
Optional configuration:
1. SIEMENS 828D or MITSUBISHI M70 CNC system
2. Chain-type tool magazine capability 40 tools
3.Provide side milling head on the right column
4.Combined longitudinal and transverse chip conveyor

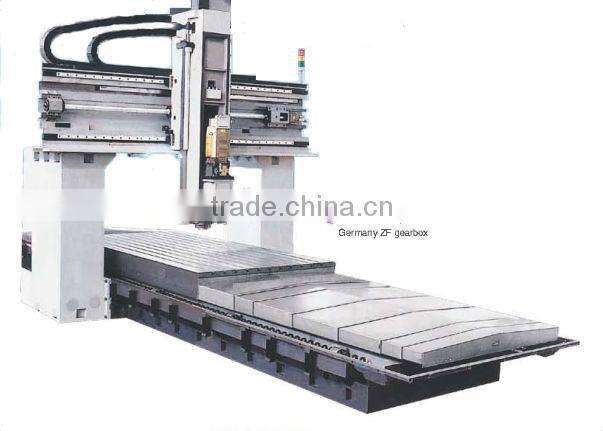

2. Parts of Machine:
3. About our company:
We are one of biggest manufacturer of producing CNC milling machine, Universal Milling Machine, CNC Lathe, etc in China. Our factory entered the top 8 machine tool builders in the world. Our universal milling machine sell to more than 100 countries and regions worldwide
...
