GMC1630A CNC vertical and horizontal gantry-type machining center
1.Specification:
SPECIFICATION |
UNIT |
GMC1630A |
|
TABLE SIZE |
MM |
3000×1600 |
|
TABLE TRAVEL(X,Y,Z) |
MM |
3200×2000×1000 |
|
HORIZONTAL MILLING HEAD CROSS TRAVEL |
MM |
500 |
|
HORIZONTAL MILLING HEAD VERTICAL TRAVEL |
MM |
500 |
|
MAX LOAD OF WORKTABLE |
KG |
8000 |
|
NO./WIDTH OF T-SLOT |
MM |
7-28H8 |
|
GANTRY WIDTH |
MM |
2100 |
|
SPINDLE TAPER(H/V) |
|
BT50 |
|
SPINDLE SPEED RANGE |
R/MIN |
10-3200 |
|
DISTANCE FROM SPINDLE NOSE TO TABLE SURFACE |
MM |
200-1200 |
|
DISTANCE FROM HORIZONTAL SPINDLE AXIS TO TABLE SURFACE |
MM |
0-500 |
|
FEED SPEED |
X,Y |
MM/MIN |
1-4000 |
Z,V,W |
1-2000 |
||
RAPID FEED SPEED |
X,Y |
MM/MIN |
1-12000 |
Z,V,W |
8000 |
||
POWER OF SPINDLE MOTOR(H/V) |
KW |
15/18.5 |
|
POSITIONING ACCURACY(X,Y,Z,V,W) |
MM |
0.032,0.028,0.022,0.02,0.02 |
|
REPEAT POSITIONING ACCURACY(X,Y,Z,V,W) |
MM |
0.015,0.014,0.012,0.01,0.01 |
|
OVERALL DIMENSION |
MM |
9130×5100×4600 |
|
MACHINE WEIGHT |
KG |
33000 |
|
Standard configuration:
1.FANUC 0i MD CNC system
2.Chain-type tool magazine capability 32 tools
Optional configuration:
1. FAUNC 31I OR SIEMENS 828D CNC system
2. Chain-type tool magazine capability 40 tools
3. Automatic chip removal system

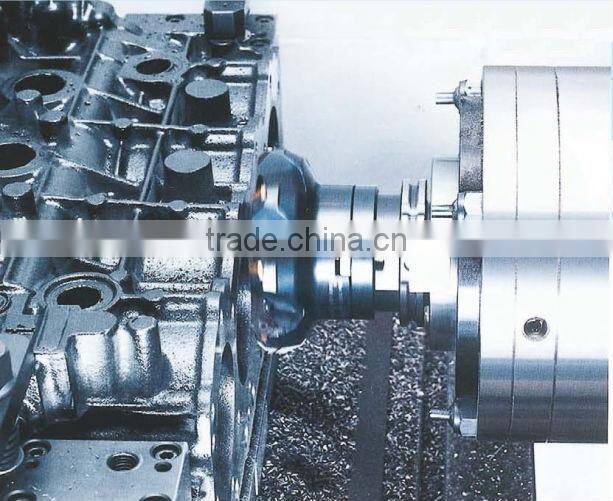

2. Parts of Machine:
3. About our company:
We are one of biggest manufacturer of producing CNC milling machine, Universal Milling Machine, CNC Lathe, etc in China. Our factory entered the top 8 machine tool builders in the world. Our universal milling machine sell to more than 100 countries and regions worldwide
....
