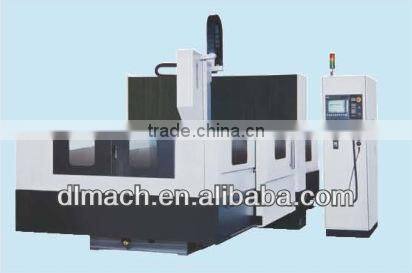

GDC2030 CNC Gantry-type milling & drilling machining center
1.Specification:
SPECIFICATION | UNIT | GDC2030 | |
X TRAVEL | MM | 3000 | |
Y TRAVEL | MM | 2000 | |
Z TRAVEL | MM | 500 | |
TABLE SIZE(L*W) | MM | 2000×3000 | |
MAX. LOAD OF TABLE | KG | 6000 | |
NO./WIDTH /DISTANCE OF T-SLOT | QTY/MM/MM | 9/28/200 | |
DISTANCE OF TWO COLUMNS | MM | 2400 | |
DISTANCE FROM SPINDLE NOSE TO TABLE SURFACE | MM | 150-650 | |
SPINDLE TAPER | ISONO.50 | ||
FEED SPEED | MM/MIN | 4000 | |
RAPID FEED | X,Y | MM/MIN | 12000 |
Z | 8000 | ||
SPINDLE MOTOR POWER | KW | 12 | |
SPINDLE SPEED | RPM | 10-4000 | |
TORQUE OF SPINDLE | N.M | 230 | |
POSITIONING ACCURACY | MM | ±0.015 | |
REPEAT POSITIONING ACCURACY | MM | 0.0075 | |
MACHINE WEIGHT | KG | 10000 | |
Standard configuration:
1. SIEMENS 828D CNC system
2. Tool magazine capability 10 tools
3. Chain-type chip removal system
Optional configuration:
1.FANUC 0i MD CNC system
2.Rotary-type tool magazine capability 24 tools
3.Spindle system with ZF gearbox
4.Tool inner cooling function
2. Parts of Machine:
3.About our company:
We are one of biggest manufacturer of producing CNC milling machine, Universal Milling Machine, CNC Lathe, etc in China. Our factory entered the top 8 machine tool builders in the world. Our universal milling machine sell to more than 100 countries and regions worldwide
...
