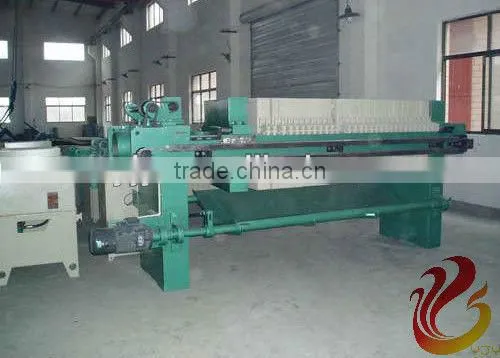

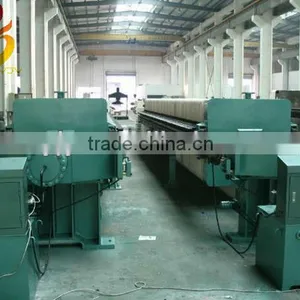

Help CenterFilter Press for Mine Sludge
Related Products
-
PP Polypropylene Membrane Filter PressUS$ 1,000 - 80,000MOQ: 1 Unit -
Plastic Hydraulic Filter PressUS$ 1,000 - 80,000MOQ: 1 Unit
-
Automatic Membrane Filter Press Designed for Different Minging Concentrate FilteringUS$ 1,000 - 80,000MOQ: 1 Unit
-
Granite Slurry Filter PressUS$ 1,000 - 80,000MOQ: 1 Unit
-
PP Polypropylene Membrane Filter PressUS$ 1,000 - 80,000MOQ: 1 Unit
Specifications
1.Automatic Hydraulic maintaining pressure2.Excellent sealability of filter plate
3.ISO9001:2008&CE
4.Energy saving
5.Servi
Application of Filter press
Filter press is a kind of solid-liquid separation machine.The chamber filter press is suitable for textile applications, pharmaceuticals,chemical filtration metal precipitation ,food industry & removing water from sewage and hazardous waste.
Classification
1. According to cake discharging type: automatic and manual
2. According to pressing type: automatic and manual
3. According to material of plate: polypropyline, membrane and stainless steel
Components

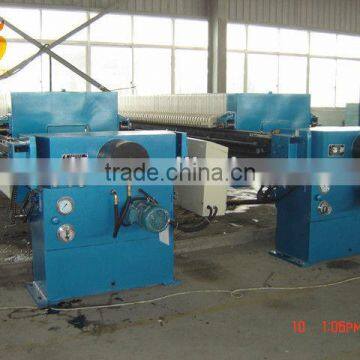

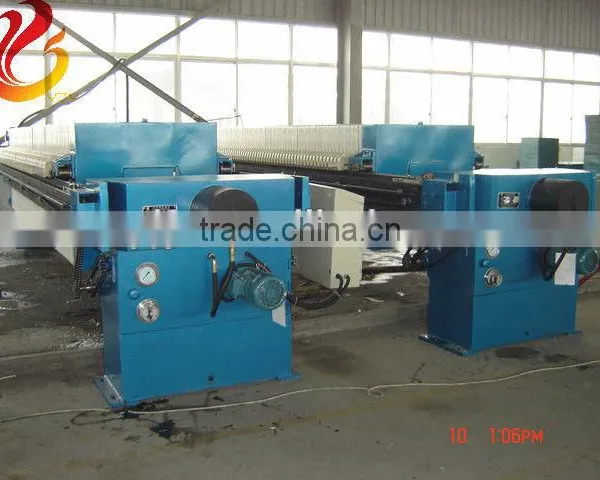

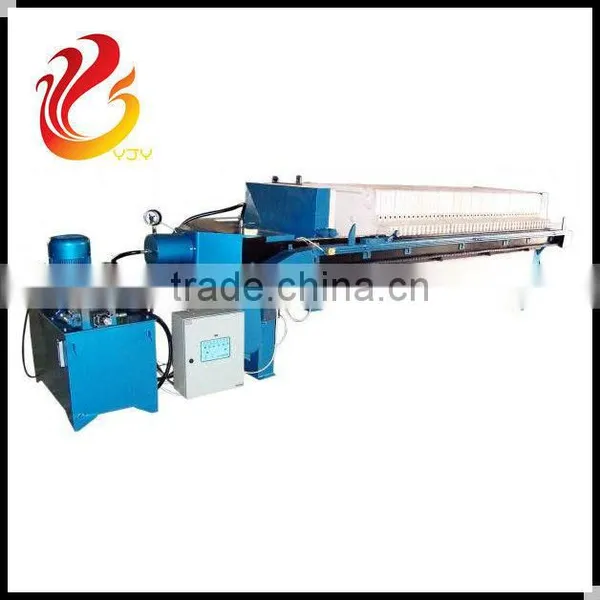

It consists of frame, filter plate, filter cloth, control cabinet, hydraulic station, etc.
Working principle
1. pressing device (cylinder piston rod or screw) drive pressing plate forward to push all media plates together till thust plate
2. stop pressing and feed solution mixed solid and liquid, when find liquid coming out become less, stop feeding
3.start to make pressing plate backward
4. separate each media plate and the cake down

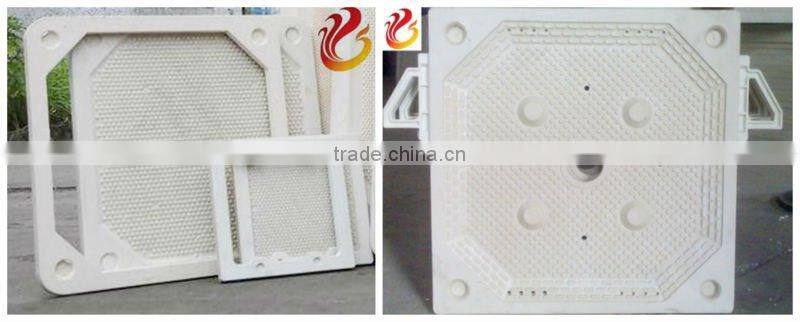

Filter plate size
320*320, 450*450, 630*630, 800*800, 1000*1000, 1250*1250, 1500*1500, 2000*2000
Parameters of Filter Press
Form |
filter press model |
filter area(m2) |
size (mm) |
cake thickness (mm) |
qty of plate |
chamber volume(L) |
filter pressure(Mpa) |
size |
weight (kg) |
||
length (mm) |
width (mm) |
height (mm) |
|||||||||
320 |
XS1/320-30U |
1 |
320*320 |
30 |
4 |
15 |
1 |
1200 |
660 |
650 |
340 |
XS2/320-30U |
2 |
9 |
31 |
1515 |
390 |
||||||
XS3/320-30U |
3 |
14 |
46 |
1755 |
440 |
||||||
