Specifications
Crusher Feeder1. High durability
2. Easy to operate
3. Perfect service after sale
4. With ISO9001 certificate
Most Popular and Famous Brand Crusher Feeder
Brief Introduction and Application of Crusher Feeder:
1) During processing the Crusher Feeder can send various materials into the crushers in the given time, separating the raw materials primarily.
2) Crusher Feeder is widely used in metallurgy, coal ore, construction material, etc.
Structure and Working Principle of Crusher Feeder:
GZD series Crusher Feeder is made by the body, exciter, spring support, drives, etc. Feed tank vibration source is the vibration exciter, exciter by two eccentric axis (active and passive) and the gear pair formed by the electric motor through the V-belt driven driving shaft, then take the initiative to the shaft by passive shaft gear meshing rotation, active and passive counter rotating shaft at the same time, so that tank vibration, so that a continuous flow of materials to achieve the purpose of conveying materials.
Advantages of Crusher Feeder:
1. To eliminate the blocking material, enhanced screening effect;
2. Has a longer service life;
3. Four sets of spring support to make work more stable;
4. To control the output remotely through the control switch.
Main Technical Parameters of Crusher Feeder:
Model |
Tank size(mm) |
Max. feed lump size(mm) |
Capacity(t/h) |
Motor Power(kW) |
Dimensions(mm) |
Weight(kg) |
GZD-850×3000 |
850×3000 |
400 |
80-120 |
5.5 |
3110×1800×1600 |
3895 |
GZD-960×3800 |
960×3800 |
500 |
120-210 |
11 |
3850×1950×1630 |
4000 |
GZD-950×4900 |
950×4900 |
500 |
120-240 |
15 |
4957×2277×2150 |
5004 |
GZD-1100×4200 |
1100×4200 |
580 |
200-430 |
15 |
4400×2050×1660 |
4800 |
GZD-1100×4900 |
1100×4900 |
580 |
120-280 |
15 |
4957×2400×2150 |
5320 |
GZD-1100×5900 |
1100×5900 |
580 |
200-350 |
22 |
6000×2500×2150 |
6130 |
GZD-1200×4800 |
1200×4800 |
600 |
280-500 |
22 |
5200×2050×1700 |
5500 |
GZD-1300×4900 |
1300×4900 |
750 |
450-600 |
22 |
5200×2350×1750 |
6000 |
GZD-1300×6000 |
1300×6000 |
650 |
400-560 |
22 |
6082×2580×2083 |
7800 |

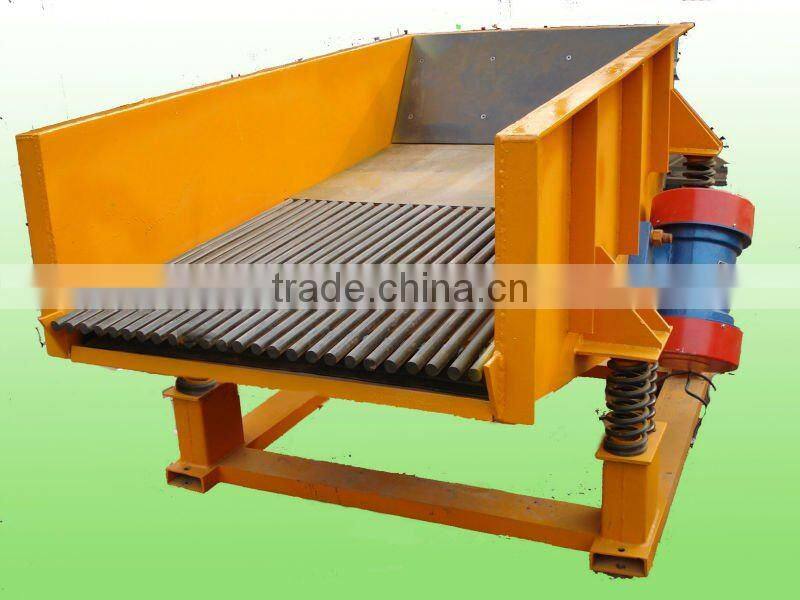

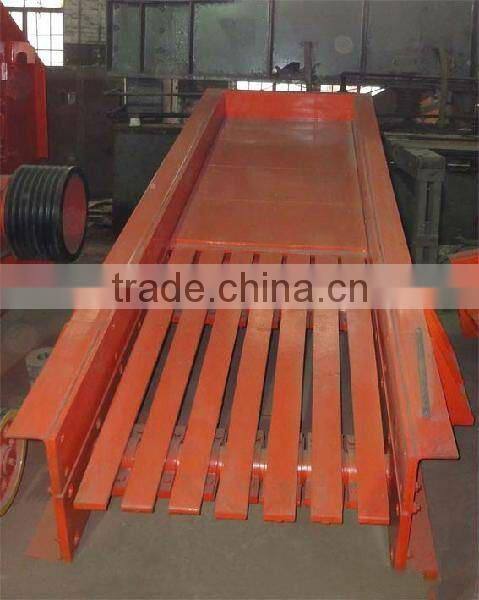

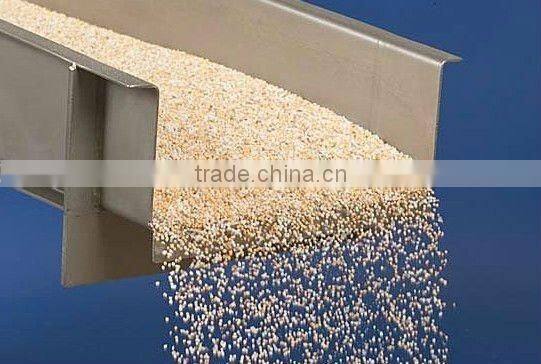

Pictures of Crusher Feeder:
Warranty of Crusher Feeder:
1. One Year (Calculated from the goods arrived the destination port.) If any parts (excluding easily damaging parts) are found defective in quality in the first year, we shall replace it free-of-cost. After one year, parts can be replaced on favorable payment basis.We can send our engineer to provide the installation and trial run in your place. But the relevant cost shall be bear in your account (round trip air ticket, board and lodging).
2. Our professional service includes: Free training, Guidance Installation and Debugging.
3. If you have any question, please contact us freely. Our after-sales service team on-line will do the best to accomplish your sincere requirement on time.
