Specifications
Crusher Feeder1. Advance technics
2. Easy adjustment
3. Best performance
4. With ISO9001 certificate

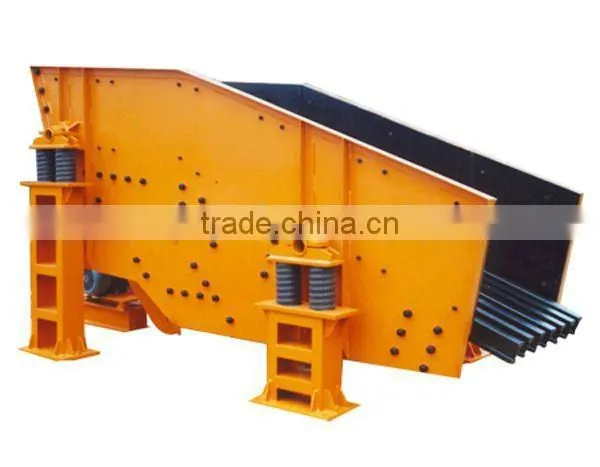

Hot Selling and Fair Price Crusher Feeder
Brief Introduction of Crusher Feeder:
Crusher Feeder is a kind of linear direction feeding equipment. It can send the stuff into the crusher continuously. It makes a feature of smooth vibrating, reliable in operation, long service life and suitable for feeding.
Application of Crusher Feeder:
1. Crusher Feeder is mainly used for continuously and evenly feeding coarse crusher, screening fine aggregate, and thus enhances crusher capacity.
2. Crusher Feeder can also roughly screen the materials.
3. Crusher Feeder has been widely used for crushing and screening in the industries of mine, metallurgy, building materials, chemical engineering, beneficiation, coal mine, etc.
4. Crusher Feeder is widely used in mining, building-material, silicate and chemical industry in the crushing and screening plants.
Structure and Working Principle of Crusher Feeder:
There are two eccentric shafts rotating at high speed at the same time from opposite directions, thus the strong centrifugal force is formed. The component forces of centrifugal force along the vibrating direction will always overlap each other, then counteract with that of vertical force from vibrating direction, then exciting force along single direction is formed to drive the feeder vibrate along straight line. When materials are fed into the feeder, they may be thrown up and move like para curve, then fall down. The materials will move forward on the slope surface of the feeder.
Features of Crusher Feeder:
1. The crusher feeder features double screening and embodies the functions of dirt removing, screening and feeding. It is characterized by even feeding, excellent continuity and adjustable vibrating force.
2. Smooth operation, great feeding capacity and high efficiency.
3. Eccentric block is the vibration source which features smooth operation, low noise, little electricity consumption, excellent adjustability and causes no material clashing.
Main Technical Parameters of Crusher Feeder:
Model |
Tank size(mm) |
Max. feed lump size(mm) |
Capacity(t/h) |
Motor Power(kW) |
Dimensions(mm) |
Weight(kg) |
GZD-850×3000 |
850×3000 |
400 |
80-120 |
5.5 |
3110×1800×1600 |
3895 |
GZD-960×3800 |
960×3800 |
500 |
120-210 |
11 |
3850×1950×1630 |
4000 |
GZD-950×4900 |
950×4900 |
500 |
120-240 |
15 |
4957×2277×2150 |
5004 |
GZD-1100×4200 |
1100×4200 |
580 |
200-430 |
15 |
4400×2050×1660 |
4800 |
GZD-1100×4900 |
1100×4900 |
580 |
120-280 |
15 |
4957×2400×2150 |
5320 |
GZD-1100×5900 |
1100×5900 |
580 |
200-350 |
22 |
6000×2500×2150 |
6130 |
GZD-1200×4800 |
1200×4800 |
600 |
280-500 |
22 |
5200×2050×1700 |
5500 |
GZD-1300×4900 |
1300×4900 |
750 |
450-600 |
22 |
5200×2350×1750 |
6000 |
GZD-1300×6000 |
1300×6000 |
650 |
400-560 |
22 |
6082×2580×2083 |
7800 |
Warranty of Crusher Feeder:
1. One Year (Calculated from the goods arrived the destination port.) If any parts (excluding easily damaging parts) are found defective in quality in the first year, we shall replace it free-of-cost. After one year, parts can be replaced on favorable payment basis.We can send our engineer to provide the installation and trial run in your place. But the relevant cost shall be bear in your account (round trip air ticket, board and lodging).
2. Our professional service includes: Free training, Guidance Installation and Debugging.
3. If you have any question, please contact us freely. Our after-sales service team on-line will do the best to accomplish your sincere requirement on time.
