Top Quality and High Efficiency Vibratory Feeder

Specifications

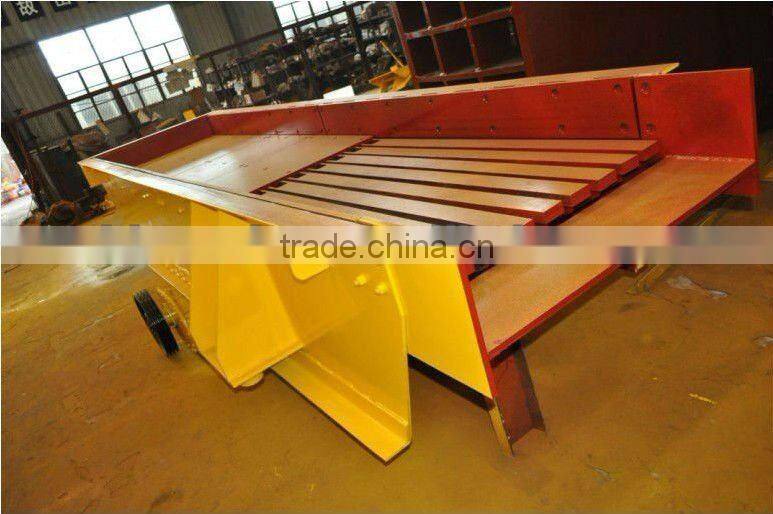

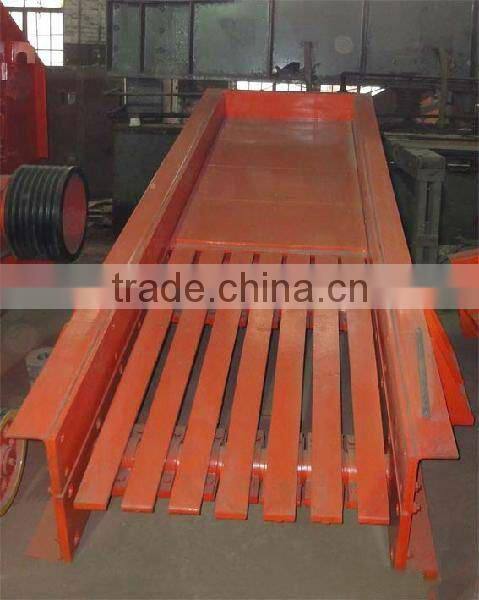

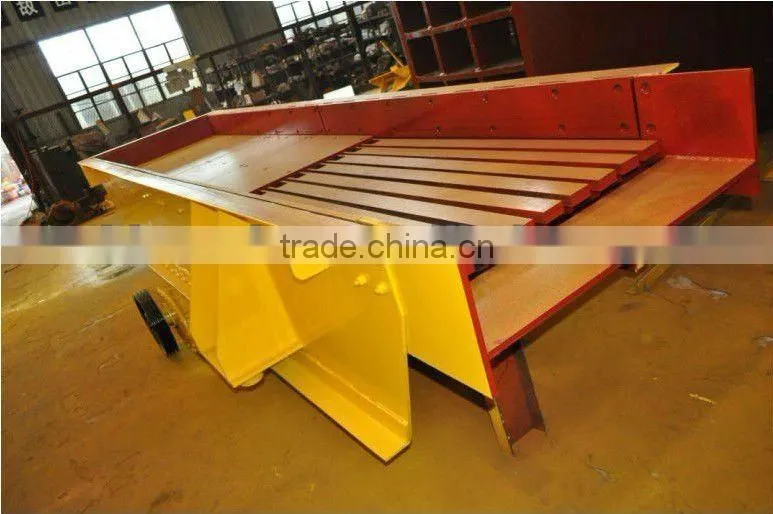

Vibratory Feeder
1. Stable working conditions
2. Environmental machine
3. Nice performance
4. With ISO9001 certificate

Vibratory Feeder

Brief Introduction and Application of Vibratory Feeder:

1) Vibratory Feeder is a kind of linear direction feeding equipment. It can send the stuff into the crusher continuously. It makes a feature of smooth vibrating, reliable in operation, long service life and suitable for feeding.

2) Vibratory Feeder is widely used in mining, building-material, silicate and chemical industry in the crushing and screening plants.



Structure and Working Principle of Vibratory Feeder:

GZD series Vibrating Feeder is made by the body, exciter, spring support, drives, etc. Feed tank vibration source is the vibration exciter, exciter by two eccentric axis (active and passive) and the gear pair formed by the electric motor through the V-belt driven driving shaft, then take the initiative to the shaft by passive shaft gear meshing rotation, active and passive counter rotating shaft at the same time, so that tank vibration, so that a continuous flow of materials to achieve the purpose of conveying materials.



Features of Vibratory Feeder:

1.The vibratory feeder features double screening and embodies the functions of dirt removing, screening and feeding. It is characterized by even feeding, excellent continuity and adjustable vibrating force.

2.Smooth operation, great feeding capacity and high efficiency.

3.Eccentric block is the vibration source which features smooth operation, low noise, little electricity consumption, excellent adjustability and causes no material clashing.



Main Technical Parameters of Vibratory Feeder:

Model	Tank size(mm)	Max. feed lump size(mm)	Capacity(t/h)	Motor Power(kW)	Dimensions(mm)	Weight(kg)
GZD-850×3000	850×3000	400	80-120	5.5	3110×1800×1600	3895
GZD-960×3800	960×3800	500	120-210	11	3850×1950×1630	4000
GZD-950×4900	950×4900	500	120-240	15	4957×2277×2150	5004
GZD-1100×4200	1100×4200	580	200-430	15	4400×2050×1660	4800
GZD-1100×4900	1100×4900	580	120-280	15	4957×2400×2150	5320
GZD-1100×5900	1100×5900	580	200-350	22	6000×2500×2150	6130
GZD-1200×4800	1200×4800	600	280-500	22	5200×2050×1700	5500
GZD-1300×4900	1300×4900	750	450-600	22	5200×2350×1750	6000
GZD-1300×6000	1300×6000	650	400-560	22	6082×2580×2083	7800



Warranty of Vibratory Feeder:

1. One Year (Calculated from the goods arrived the destination port.)  If any parts (excluding easily damaging parts) are found defective in quality in the first year, we shall replace it free-of-cost. After one year, parts can be replaced on favorable payment basis.We can send our engineer to provide the installation and trial run in your place. But the relevant cost shall be bear in your account (round trip air ticket, board and lodging).



2. Our professional service includes: Free training, Guidance Installation and Debugging.



3. If you have any question, please contact us freely. Our after-sales service team on-line will do the best to accomplish your sincere requirement on time.
