Specifications
Crusher Feeder1. Advanced technology
2. Strict quality control system
3. Perfect service after sale
4. With ISO9001
Low Price and Best Performance Crusher Feeder
Brief Introduction and Application of Crusher Feeder:
1) Crusher Feeder is a kind of linear direction feeding equipment. It can send the stuff into the crusher continuously. It makes a feature of smooth vibrating, reliable in operation, long service life and suitable for feeding.
2) Crusher Feeder is widely used in mining, building-material, silicate and chemical industry in the crushing and screening plants.
Structure and Working Principle of Crusher Feeder:
GZD series Crusher Feeder is made by the body, exciter, spring support, drives, etc. Feed tank vibration source is the vibration exciter, exciter by two eccentric axis (active and passive) and the gear pair formed by the electric motor through the V-belt driven driving shaft, then take the initiative to the shaft by passive shaft gear meshing rotation, active and passive counter rotating shaft at the same time, so that tank vibration, so that a continuous flow of materials to achieve the purpose of conveying materials.
Main Technical Parameters of Crusher Feeder:
Model |
Tank size(mm) |
Max. feed lump size(mm) |
Capacity(t/h) |
Motor Power(kW) |
Dimensions(mm) |
Weight(kg) |
GZD-850×3000 |
850×3000 |
400 |
80-120 |
5.5 |
3110×1800×1600 |
3895 |
GZD-960×3800 |
960×3800 |
500 |
120-210 |
11 |
3850×1950×1630 |
4000 |
GZD-950×4900 |
950×4900 |
500 |
120-240 |
15 |
4957×2277×2150 |
5004 |
GZD-1100×4200 |
1100×4200 |
580 |
200-430 |
15 |
4400×2050×1660 |
4800 |
GZD-1100×4900 |
1100×4900 |
580 |
120-280 |
15 |
4957×2400×2150 |
5320 |
GZD-1100×5900 |
1100×5900 |
580 |
200-350 |
22 |
6000×2500×2150 |
6130 |
GZD-1200×4800 |
1200×4800 |
600 |
280-500 |
22 |
5200×2050×1700 |
5500 |
GZD-1300×4900 |
1300×4900 |
750 |
450-600 |
22 |
5200×2350×1750 |
6000 |
GZD-1300×6000 |
1300×6000 |
650 |
400-560 |
22 |
6082×2580×2083 |
7800 |

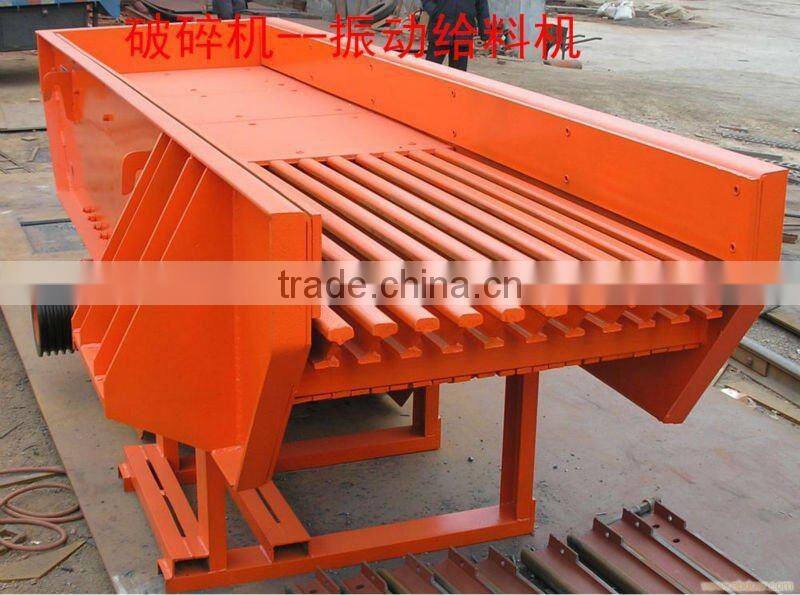

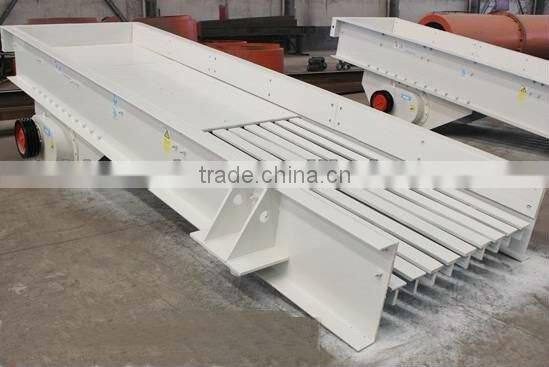

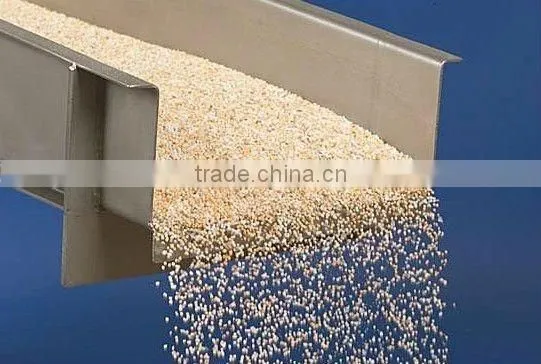

Pictures of Crusher Feeder:
