Specifications
Stone Production Line1. High durability
2. High reliability
3. Stable working conditions
4. With ISO9001
Whole Complete Stone Production Line
Brief Introduction of Stone Production Line:
First the raw materials are regularly conveyed into the elementary-crushing machine by the vibrating feeder,then the belt conveyor transfers the elementary products to impact crusher for secondary crush.
The secondary products will be separated into stone of different sizes by the vibrating screen.
The parts not satisfying the needs will be returned to the impact crusher for further crush.
Features of the Stone Production Line:
The whole line (Stone Crusher Line) is highly automatic and the size of the finished products is even, good-shaped and can be adjustable, with high crushing ratio, low power consumption and high capacity, which is suitable for big, middle and small projects, such as road and bridge construction.
Working Principle of Stone Production Line:

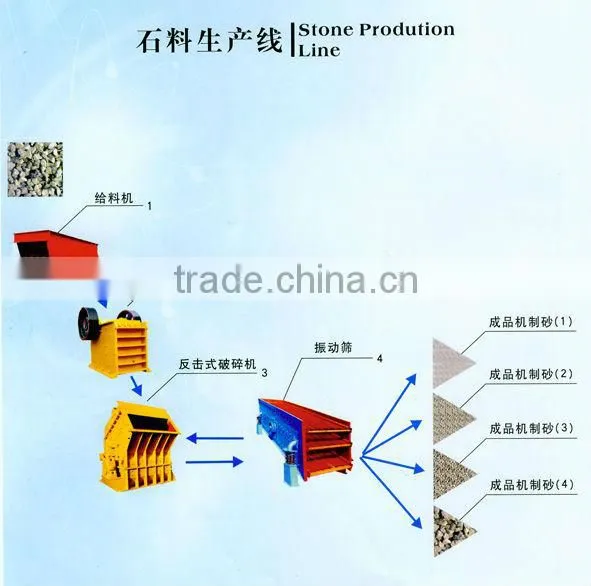

Large stone materials from the storage hopper are evenly and continuously fed into jaw crusher through vibrating feeder for primary crushing; the crushed materials are transported to cone crusher or impact crusher for fine crushing through belt conveyor; then the materials are transported to vibrating screen to be separated into different sizes. The end products with desired sizes will be transported to the final product pile and those with big sizes will return to the cone crusher or impact crusher for re-crushing. This forms closed and continuously automatic cycles. The plant can be equipped with dust removing facilities to protect environment according to customers' requests.
Advantage of Stone Production Line:
1. High degree of automatic operation; the entire production line requires almost no manual operation except for machine starting and stopping, routine maintenance.
2. High productivity, low investment, and good appreciation.
3. Regular end product granularity, good grain shape, and low powder.
4. Adopting high advanced central control system to ensure security and reliable operation of the entire production line.
Main Equipments of Stone Production Line:
The equipments of sand making production line cover feeders, crushers, screens, sand making machine, conveyors, sand washing machine, etc.
Vibrating Feeder:
During processing, the equipment can send various materials into the crushers in the given time, separating the raw materials primarily. It is widely used in metallurgy, coal ore, construction materials, etc.
PE Jaw Crusher:
PE-series of jaw crusher is widely used at home and aboard, for primary crushing of hard rocks and block materials. The large and medium-size crushers are the key products of our company and stand in the front of the industry in the aspect of design and production.
Vibrating Screen:
This series of vibrating screen moves round, it is specially designed for quarry to separate stone into different sizes. It also widely used for classification in mining, construction materials, transportation and energy etc. The series of YK, YZ is the latest model in China. The eccentric shaft vibration exciter and partial block help to adjust amplitude. The material drops down the long time. This machine bears the features of different specifications, reliability, strong exciter, high efficiency, little noise, durability, convenient maintenance and safety.
