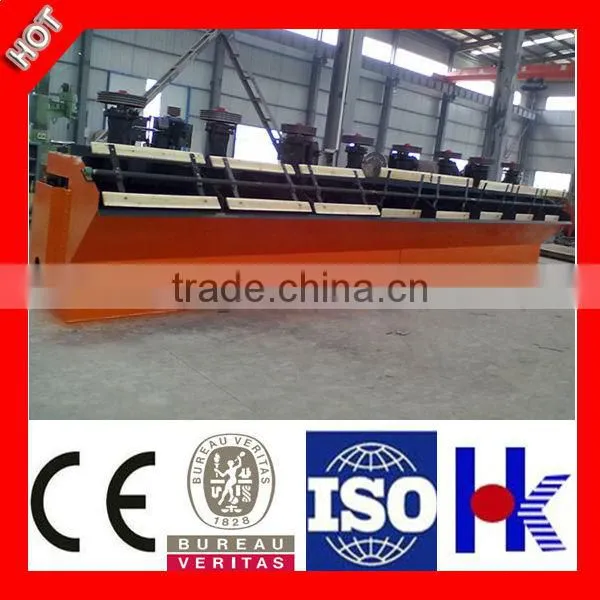

Mineral Selected Machine Flotation Separator

standard export packing like the 20GP/40GP container

Specifications

flotation separator
1. high efficiency
2. standard quality system
3. high flotation rate
4. with ISO/BVCE certificate

Mineral Selected Machine Flotation Separator



Brief Introduction of Flotation Separator

This type of flotation separator is formed by U through solid, hollow shaft inflation, suspension rotor and new type impeller. The cone impeller lean backwards, the blending quantity is big and the pressure head is small, the advantages are: simple structure and low energy consumption. Inside the impeller, there is air distributor, which distributes air into most parts of impeller evenly.



Application of Flotation Separator

SF Flotation Separator is the representative equipment in the flotation production, mainly used in the flotation of nonferrous metals and rare metals, such as copper, gold, silver, zinc, lead, nickel, etc; and nonmetal materials, such as kaolinite, phosphorus, sulfur, etc.



Working Principle of Flotation Separator

When flotation separator works, slurry is inhaled from the bottom of the trough to the space between impellers. Meanwhile, the low pressure air send by fan is sent to this area through the air distributor in the hollow shaft. After sufficient mixing, the slurry is pushed out by the impeller, and then goes to the whole trough. When the froth rises to the stable level, after the enrichment processing, froth overflows to the froth trough from the overflow weir. Another part of ore slurry flows to lower part of impeller for the re-mix with air. The remained slurry flows to the next trough until becomes residue.



Characterisitics of Flotation Separator

Impeller of model SF flotation separator is composed of the dosed double section cones and it can produce strong smutty cycle doumward.Its features are as follows:
(1)The capacity of air suction is large, the power consumption is low.
(2)Every tend has three functions of air suction, slurry suction and flotation simultaneously being unique in flotation return circuit without need for any supplementary equipment, the circuit change is convenient for horizontal location.
(3)The slurry cycle is rational, the settlement of coarse sand can be reduced into full play.
(4)The regulation is convenient to equip auto and electro-controlling arrangements for slutty level.



Main Technical Parameters of Flotation Separator

Model	Impeller   Dia.   (mm)	Capacity   (m3/min)	Impeller    Speed   (r/min)	Motor				Cell Size (L*W*H)    (mm)	Cell     Weight    (t)
				For Impeller		For Scraper
				Model	Power   (Kw)	Model	Power   (Kw)
SF-0.15	200	0.06-0.18	536	Y90L-6	1.5	Y801-4	0.55	500*500*600	0.27
SF-0.37	296	0.2-0.4	386	Y90L-4	1.5	Y801-4	1.1	900*700*750	0.47
SF-0.65	350	0.3-0.9	400	Y132S-6	3	Y90L-6	1.1	700*900*900	0.93
SF-1.2	450	0.6-1.2	312	Y132S2-6	5.5	Y90L-6	1.1	1100*1100*1100	1.37
SF-2.8	550	1.5-3.5	270	Y160L-6	11	Y90L-6	1.1	1700*1600*1150	2.13
SF-4	650	2-4	220	Y200L-8	15	Y100-6	1.5	1850*2050*1200	2.58
SF-8	760	4-8	191	Y250M-8	30	Y100-6	1.5	2200*2900*1400	4.13
SF-10	760	5-10	191	Y250M-8	30	Y100-6	1.5	2200*2900*1400	4.49
