ISO Approved Copper Ore Beneficiation Production Line
Introduction of Copper Ore Beneficiation Production Line
Henan Hongke Heavy Machinery can offer complete sets of selecting Copper Ore Beneficiation Production Line.
The equipments of copper ore beneficiation production line cover feeders, crushers, screens, ball mill, conveyors, agition barrel, seperator, dryer and flotation, etc.
Main Equipments of Copper Ore Beneficiation Production Line
Vibrating Feeder:
During processing, the vibrating feeder can send various materials into the crushers in the given time, separating the raw materials primarily. It is widely used in metallurgy, coal ore, construction materials, etc.
PE Jaw Crusher:
PE-series of jaw crusher is widely used at home and aboard, for primary crushing of hard rocks and block materials. The large and medium-size crushers are the key products of our company and stand in the front of the industry in the aspect of design and production.
Vibrating Screen:
This series of vibrating screen moves round, it is specially designed for quarry to separate stone into different sizes. It also widely used for classification in mining, construction materials, transportation and energy etc. The series of YK, YZ is the latest model in China. The eccentric shaft vibration exciter and partial block help to adjust amplitude. The material drops down the long time. This machine bears the features of different specifications, reliability, strong exciter, high efficiency, little noise, durability, convenient maintenance and safety.
Agitation Barrel:
Flotation Machine:
Flotation Machine is widely used in the roughing, concentration, and reverse flotation of those non-ferrous metal like cuprum, plumbum, zinc, nickel, ferrous metal and nonmetallic mineral.
Ball Mill:
Ball Mill changes the intrinsic grinding machine structure its body and ground plane are an integral whole when fixing. It can be lowered on a plane surface once only use double tire roller axletree can reduce energy cost by 30%. The intrinsic grille pattern forcing evacuation is instead by overfall pattern controlling one. This can improve the milling of the granule and the quantity dealt with is increased by 15-20%.
Spiral Classifier:
Spiral classifier is mainly used to clean mud and dehydrate in mill washing work, with different specific gravity falls at different speed in fluid, by this principle and combined with grinders; spiral separator is used to eliminate dust and water in the mining material, guide for operation: Before starting, firstly check the tightness of all the bolts, then raise the handle to make the machine work without load, after making the deposit move, the machine can work normally. The two ends of the bearing should be always maintained with lubricant.
Magnetic Separator:
Magnetic Separator is suitable for wet magnetic separation of materials such as magnetite, calcined ore, etc. and it can remove the iron in the coal, non-metal and construction industries. The magnetic system is made from high quality ferrite magnetic materials and /or rare earth magnet steel. On the shell surface, the magnet intensity is 100-600mt. The wet type permanent magnet cylindrical separator is commonly used for iron ore separation. It is suitable for separating materials with high magnetism. In recent years, it has been used as concentrating equipment in place of magnetic dewatering cell.

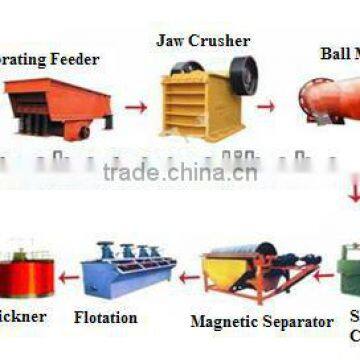

General Process of Copper Ore Beneficiation Production Line
Primary Crushing----Secondary Crushing----Sieving----Third Crushing----Grinding----Classifying----Lower Magnetic Separation----Strong Magnetic Separation----Filtering----Concentrate Ore
Different Select Methods of Copper Ore Beneficiation Production Line
(1) disseminated copper ore flotation
Generally adopt simpler process, after grinding, fineness of 200 mesh accounted for about 50% ~ 70%, and 1 time roughing, 2 ~ 3 times, 1 ~ 2 times of scavenging. If the copper mineral particle size is fine, can consider to use stage grinding process. Dealing with bornite concentrator, mostly adopts the rough concentrate – a selection of stage grinding process, the essence of which is mixed – priority flotation process. By a coarse grinding, roughing, scavenging, grinding rough concentrate again to select again to get the high grade copper concentrate and sulphur concentrate. Coarse grinding fineness of 200 mesh accounted for about 45% ~ 50%, and then grinding fineness of 200 mesh accounted for about 90% ~ 95%.
(2) the density copper ore flotation
Dense copper ore density symbiosis with chalcopyrite and pyrite, pyrite is usually secondary copper mineral activation, pyrite content is higher, difficult to restrain, separation is difficult. Sorting process requirement for copper concentrate and sulphur concentrate at the same time. Usually after copper tailings is the sulphur concentrate. If gangue content more than 20% ~ 20% in ore, in order to get sulphur concentrate still need sorting again. Deal with dense copper ore, often use two paragraphs grinding or stage grinding, grinding fineness requirement is fine. Dosage of reagent dosage is also bigger, xanthate above 100 g/(t the raw ore), lime above 8 ~ 10 kg/(t raw ore).
We can offer complete sets of selecting iron, gold, tungsten, etc equipments.
