Specifications
flotation tank1. high efficiency
2. standard quality system
3. high flotation rate
4. with ISO/BVCE certificate

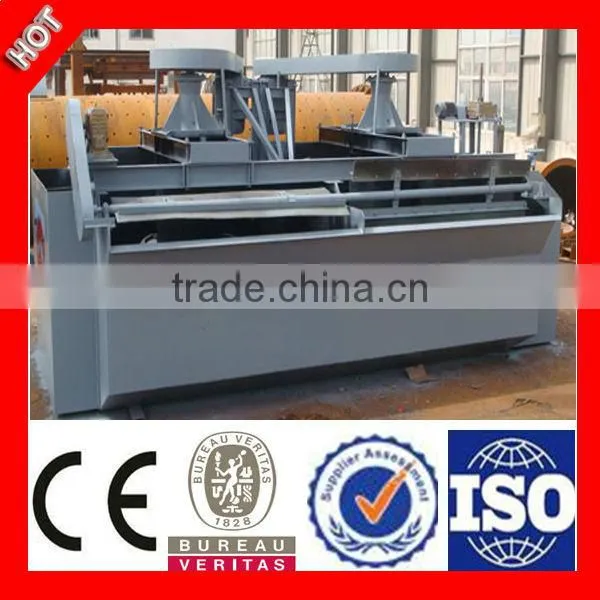

Mineral Selected Machine Flotation Tank
Brief Introduction of Flotation Tank
This type of flotation tank is formed by U through solid, hollow shaft inflation, suspension rotor and new type impeller. The cone impeller lean backwards, the blending quantity is big and the pressure head is small, the advantages are: simple structure and low energy consumption. Inside the impeller, there is air distributor, which distributes air into most parts of impeller evenly.
Application of Flotation Tank
SF Flotation Tank is the representative equipment in the flotation production, mainly used in the flotation of nonferrous metals and rare metals, such as copper, gold, silver, zinc, lead, nickel, etc; and nonmetal materials, such as kaolinite, phosphorus, sulfur, etc.
Working Principle of Flotation Tank
When flotation tank works, slurry is inhaled from the bottom of the trough to the space between impellers. Meanwhile, the low pressure air send by fan is sent to this area through the air distributor in the hollow shaft. After sufficient mixing, the slurry is pushed out by the impeller, and then goes to the whole trough. When the froth rises to the stable level, after the enrichment processing, froth overflows to the froth trough from the overflow weir. Another part of ore slurry flows to lower part of impeller for the re-mix with air. The remained slurry flows to the next trough until becomes residue.
Characterisitics of Flotation Tank
Impeller of model SF flotation tank is composed of the dosed double section cones and it can produce strong smutty cycle doumward.Its features are as follows:
(1)The capacity of air suction is large, the power consumption is low.
(2)Every tend has three functions of air suction, slurry suction and flotation simultaneously being unique in flotation return circuit without need for any supplementary equipment, the circuit change is convenient for horizontal location.
(3)The slurry cycle is rational, the settlement of coarse sand can be reduced into full play.
(4)The regulation is convenient to equip auto and electro-controlling arrangements for slutty level.
Main Technical Parameters of Flotation Tank
| Model
| Impeller Dia. (mm)
| Capacity (m3/min)
| Impeller Speed (r/min)
| Motor
| Cell Size (L*W*H) (mm)
| Cell Weight (t)
| |||
| For Impeller
| For Scraper
| ||||||||
| Model
| Power (Kw)
| Model
| Power (Kw)
| ||||||
| SF-0.15
| 200
| 0.06-0.18
| 536
| Y90L-6
| 1.5
| Y801-4
| 0.55
| 500*500*600
| 0.27
|
| SF-0.37
| 296
| 0.2-0.4
| 386
| Y90L-4
| 1.5
| Y801-4
| 1.1
| 900*700*750
| 0.47
|
| SF-0.65
| 350
| 0.3-0.9
| 400
| Y132S-6
| 3
| Y90L-6
| 1.1
| 700*900*900
| 0.93
|
| SF-1.2
| 450
| 0.6-1.2
| 312
| Y132S2-6
| 5.5
| Y90L-6
| 1.1
| 1100*1100*1100
| 1.37
|
| SF-2.8
| 550
| 1.5-3.5
| 270
| Y160L-6
| 11
| Y90L-6
| 1.1
| 1700*1600*1150
| 2.13
|
| SF-4
| 650
| 2-4
| 220
| Y200L-8
| 15
| Y100-6
| 1.5
| 1850*2050*1200
| 2.58
|
| SF-8
| 760
| 4-8
| 191
| Y250M-8
| 30
| Y100-6
| 1.5
| 2200*2900*1400
| 4.13
|
| SF-10
| 760
| 5-10
| 191
| Y250M-8
| 30
| Y100-6
| 1.5
| 2200*2900*1400
| 4.49 |
