Home > Manufacturing & Processing Machinery > Mining Machinery > Mining Mill > Long Term Supply Good Quality Mine Machine

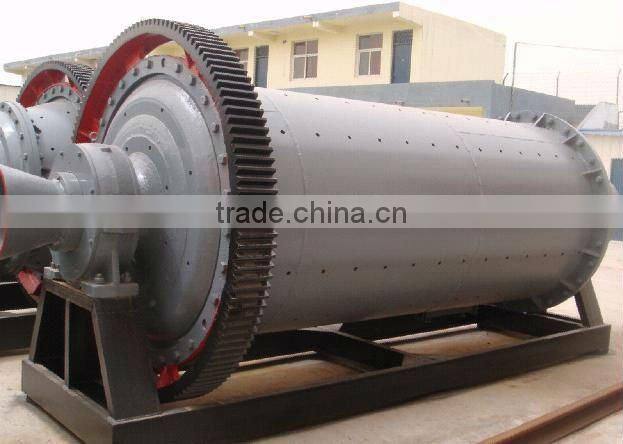

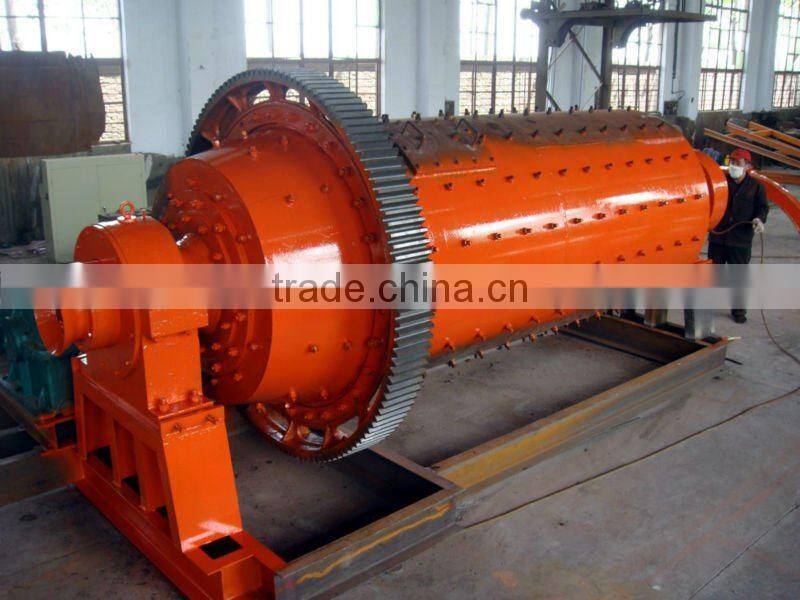

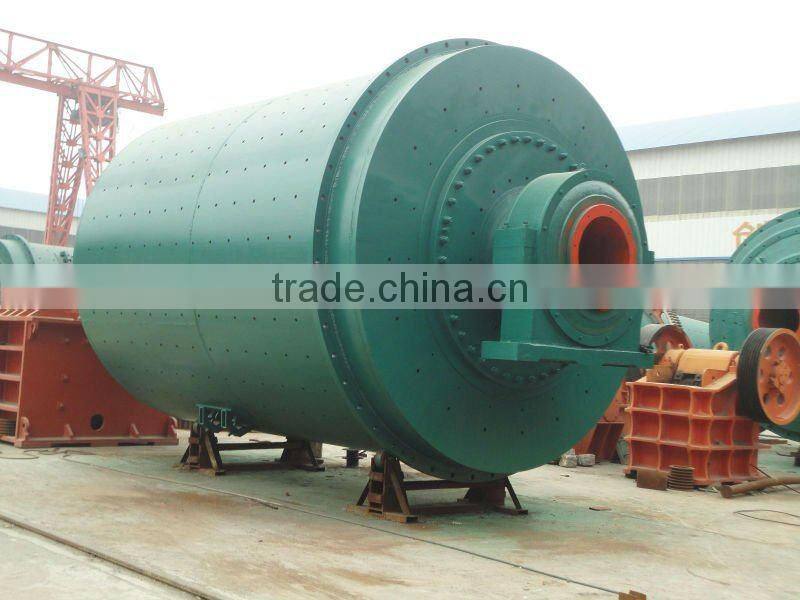

Long Term Supply Good Quality Mine Machine

US$ 1,000 - 788,888 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Ball Mill

Motor Type:

DC Motor

Contact Supplier Request Quote Chat Now

Henan Hongke Heavy Machinery Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin Qingdao Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Ball Mill

Motor Type DC Motor

Power(W) 18.5-800

Capacity(t/h) 0.5-500tons/hour

Place of Origin Henan, China

Brand Name HK

Model Number 220, various kind

Dimension(L*W*H) 1.5*15 m

Weight 3.6-137

Certification CE, ISO

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

Long term supply good quality Mine Machine

1.The Application of Mine Machine

Mine Machine is widely used in building material, chemical industry, etc. There are two ways of grinding: the dry way and the wet way. It can be divided into tabular type and flowing type according to different expelling mine. To use the Ball Mill, the material to be ground is loaded into the Neoprene barrel that contains grinding media. As the barrel rotates, the material is crushed between the individual pieces of grinding media that mix and crush the product into fine powder over a period of several hours.

2.Detailed Description of Mine Macine

Mine Machine is a key equipment to grind the crushed materials, and the ball mill is widely used in powder-making production line including cement, silicate, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal, glass ceramics, etc,.And the ball mill can grind various ores and other materials with dry type and wet type. There are two kinds of ball mill, grate type and overfall type due to different ways of discharging material.

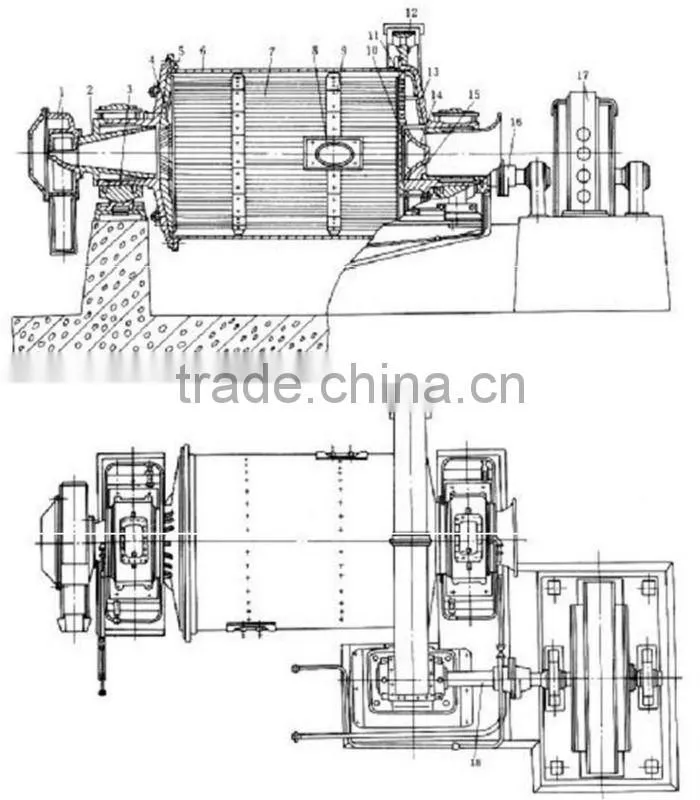

3.Operation Principle of Mine Machine

Mine Machine is a horizontal rotating device transmitted by the outer gear, two-chamber, and grid discharging. The materials are transferred to the first grinding chamber through the quill shaft uniformly. There are ladder liner, ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height to impact and grind the materials. After the coarse grinding in the first chamber, materials enter into the second chamber through separating plate, where there are liner plate mounted and steel ball to make the further grinding. The ground materials are discharged through the discharging board, thus the grinding process completes.

4.Specification of Mine Machine

Model	Rotary Speed (r/min)	The feeding size (mm)	The final Size (mm)	Capacity(t/h)	Main Motor (kw)	Weight (t)
900×1800	38	≤ 20	0.075-0.89	0.65-2	18.9	3.6
900×3000	38	≤ 20	0.075-0.89	1.1-4.8	22	4.6
1200×2400	32	≤ 25	0.075-0.6	1.5-4.8	45	12.5
1200×2800	35	≤ 25	0.074-0.4	1.2-3.7	30	11.5
1200×3000	32	≤ 25	0.074-0.4	1.6-5	45	12.8
1200×4500	32	≤ 25	0.074-0.4	1.6-5.8	55	13.8
1500×3000	27	≤ 25	0.074-0.4	2-5	75	17
1500×4500	27	≤ 25	0.074-0.4	3-6	90	21
1500×5700	27	≤ 25	0.074-0.4	3.5-6	110	24.7
1830×3000	24	≤ 25	0.074-0.4	4-10	180	28
1830×6400	24	≤ 25	0.074-0.4	6.5-15	210	34
1830×7000	24	≤ 25	0.074-0.4	7.5-17	245	36
2200×5500	21	≤ 25	0.074-0.4	10-22	370	48.5
2200×6500	21	≤ 25	0.074-0.4	14-26	380	52.8
2200×7000	21	≤ 25	0.074-0.4	8-36	380	50
2200×7500	21	≤ 25	0.074-0.4	16-29	475	56
2100×2700	24	≤ 20	0.074-0.4	3.5-25	150	33
2100×3500	24	≤ 25	0.074-0.4	4.5-33	180	37
