2200*4500 Energy Saving Ball Mill

2200*4500 Energy Saving Ball Mill thumbnail-1
2200*4500 Energy Saving Ball Mill photo-1
US$ 1,000 - 50,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Ball Mill
Capacity(t/h):
1-45
Contact Supplier Request Quote Chat Now
Henan Hongke Heavy Machinery Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Ball Mill
Capacity(t/h) 1-45
Place of Origin Henan, China
Brand Name HK
Model Number 2200*4500
Ball mill is the key equipment for grinding after the crushing process, which is widely used in the manufacture industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics and can be used for the dry and wet grinding for all kinds of ores and other grind-able materials.
Ball mill Working Principle:

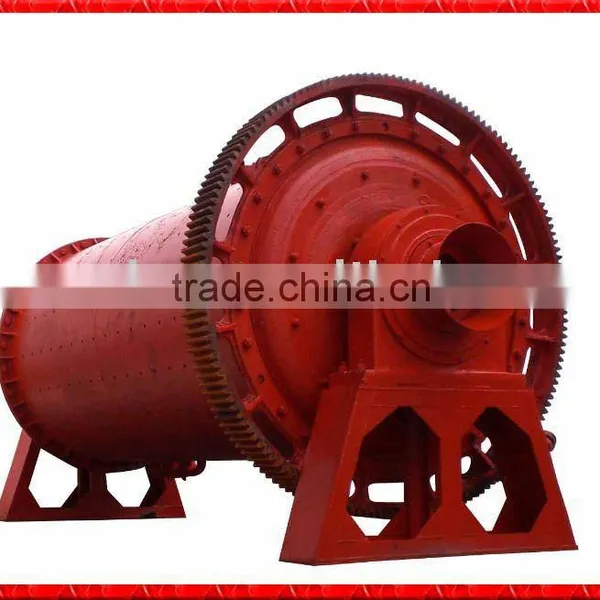

The ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.
Ball mill Series Main Technical parameters

Model
Shell rotation speed(r/min)
Ball load(t)
Feeding size(mm)
Discharging size(mm)
Capacity
Motor power(kw)
Weight(t)
(t/h)
Ø900*1800
36-38
1.5
<=20
0.075-0.89
0.65-2
18.5
4.6
Ø900*3000
36
2.7
<=20
0.075-0.89
1.1-3.5
22
5.6
Ø1200*2400
36
3
<=25
0.075-0.6
1.5-4.8
30
12
Ø1200*3000
36
3.5
<=25
0.074-0.4
1.6-5
37
12.8
Ø1200*4500
32.4
5
<=25
0.074-0.4
1.6-5.8
55
13.8
Ø1500*3000
29.7
7.5
<=25
0.074-0.4
2-5
75
15.6
Ø1500*4500
27
11
<=25
0.074-0.4
3-6
110
21
Ø1500*5700
28
12
<=25
0.074-0.4
3.5-6
130
24.7
Ø1830*3000
25.4
11
<=25
0.074-0.4
4-10
130
28
Ø1830*4500
25.4
15
<=25
0.074-0.4
4.5-12
155
32
Ø1830*6400
24.1
21
<=25
0.074-0.4
6.5-15
210
34
Ø1830*7000
24.1
23
<=25
0.074-0.4
7.5-17
245
36
Ø2100*3000
23.7
15
<=25
0.074-0.4
6.5-36
155
34
Ø2100*4500
23.7
24
<=25
0.074-0.4
8-43
245
42
Ø2100*7000
23.7
26
<=25
0.074-0.4
8-48
280
50
Ø2200*4500
21.5
27
<=25
0.074-0.4
9-45
280
48.5
