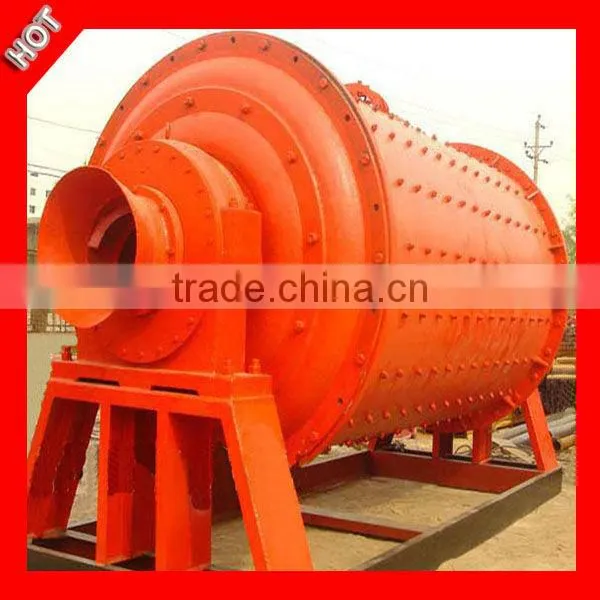

Hot Ball Grinder Mill

Hot Ball Grinder Mill thumbnail-1
Hot Ball Grinder Mill photo-1
US$ 999 - 15,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Ball Mill, dry mill and wet mill
Motor Type:
AC Motor
Contact Supplier Request Quote Chat Now
Henan Hongke Heavy Machinery Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
China main port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, Ball Mill, dry mill and wet mill
Motor Type AC Motor
Power(W) 10KW
Capacity(t/h) 5-90
Place of Origin Henan, China
Brand Name HK
Model Number 1500X5700
Dimension(L*W*H) 2*2*8
Weight 20t
Certification ISO9001
Warranty 3 years
After-sales Service Provided Overseas service center available
 Ball Grinder Mill




1. Brief Introduction of Ball Grinder Mill



1. Ball Grinder Mill is widely used in mining, building materials and chemistry industries.

2. According to the milling way, Ball Mill Machine can be divided into dry and wet types.

    According to ways of discharge, the Ball Mill Machine can be divided into lattice and overflow types or center-discharge and side-discharge types.

    In accordance with the different kinds of support, it can be divided into Bearing Mill Machine and Bushing Mill Machine.

   In accordance with the different kinds of transmission, it can be divided into edge and center types. The mills with the diameter above 3m allocate jacking devices for easy maintenance.

   So the dynamical pressure bearing and the static pressure bearing can operate stable.



 2. Structure of  Ball Grinder Mill



The ball mill machine is composed by feeding part, discharging part, rotary part and driving part (reducer, small driving gear, electric motor and electric control).



Hot Ball grinder mill

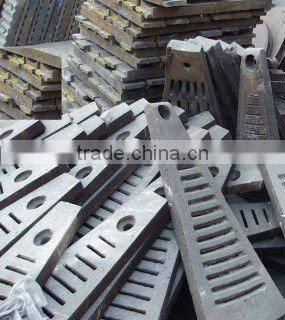

 3. Spare Parts of Ball Grinder Mill

Hot Ball grinder mill Hot Ball grinder mill



4. Application of Ball Grinder Mill

Ball Grinder Mill is widely used in the manufacturing industries, such as cement, silicate, new building material, refractory material, fertilizer,

ferrous metal, nonferrous metal and glass ceramics and can be used for the dry and wet grinding for all kinds of ores and other gradable materials.

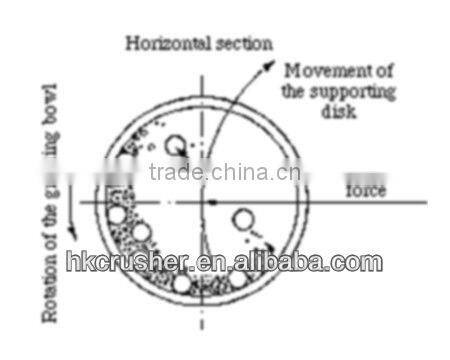

5. Working Principle of Ball Grinder Mill

The ball Grinder mill machine is a horizontal rotating device transmitted by the outer gear.

The materials are transferred to the grinding chamber through the quill shaft uniformly.

There are ladder liner and ripple liner and different specifications of steel balls in the chamber.

The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials.

The ground materials are discharged through the discharging board thus the grinding process is finished.



Hot Ball grinder millHot Ball grinder mill





6. Technical Parameter of Ball Grinder Mill

Model

input size(mm)

Output size(mm)

Weight of ball(t)

Speed of bucket(r/min)

Power(kw)

Capacity(t/h)

Weight(t)

900*1800

≤15

0.075-0.89

1.9

37

15

0.5-2

3.4

900*2100

≤15

0.075-0.4

2.3

37

18.5

0.4-2

3.9

900*3000

≤25

0.075-0.4

3.85

35

30

1.1-2.5

7.78

1200*2400

≤25

0.075-0.4

4.6

35

30

1.3-3.2

8.65

1200*2800

≤25

0.075-0.4

5.4

35

37

1.5-3.7

10.02

1200*4500

≤25

0.075-0.4

8.6

35

45

2.7-6.79

14

1500*3000

≤25

0.047-0.4

9

29

75

3.3-8.2

14.12

1500*3500

≤25

0.047-0.4

10.5

29

75

3.3-8.5

15.64

1500*4500

≤25

0.047-0.4

13.5

29

90

4.5-12

20

1500*5700

≤25

0.047-0.4

17

29

110

2.6-14

21.5

1830*3000

≤25

0.047-0.4

13.5

24

135

4-15

28

1830*3600

≤25

0.047-0.4

14

24

135

4-15

29

1830*4500

≤25

0.047-0.4

20

24

155

4-19

32

1830*7000

≤25

0.047-0.4

31.5

24

210

6-22

37.5

2100*3000

≤25

0.047-0.4

18

22

210

6.4-28

40.79

2100*3600

≤25

0.047-0.4

20

22

210

7-28

42



7. Warranty of Ball Grinder Mill

1. One Year (Calculated from the goods arrived the destination port.)  If any parts (excluding easily damaging parts) are found defective in quality in the first year,

we shall replace it free-of-cost. After one year, parts can be replaced on favorable payment basis. We can send our engineer to provide the installation and trial run in your place.

But the relevant cost shall be bear in your account (round trip air ticket, board and lodging).



2. Our professional service includes: Free training, Guidance Installation and Debugging.



3. If you have any question, please contact us freely. Our after-sales service team on-line will do the best to accomplish your sincere requirement on time.
