Dry grinding ball mill
Applications of Dry grinding ball mill
Ball mill for gold ore is a key equipment for regrinding, it is widely used for the cement, the silicate product, new type building material, fire-proof material, chemical fertilizer, black and non-ferrous metal, glass, ceramics and etc. The ball mill can grind ore or other materials that can be grinded either by wet process or by dry process.
Features of Dry grinding ball mill
1. This type of ball mill is a kind of traditional ball mill, with rolling bearings (Babbit metal bearing bushing seat)
2. Simple structure, and split installation.
3. It is easy to lift it while installing and maintaining.
4. Its feeders are classified into two types: combined feeder and cylinder feeder.
Working principle of Dry grinding ball mill
1. This ball mill is horizontal type and tubular running device, has two warehouses.
2. This machine is grid type and its outside runs along gear.
3. The material enters spirally and evenly the first warehouse of the milling machine along the input material hollow axis by input material device.
Notes for ordering of Dry grinding ball mill
1. While placing your order, please specify the model, quantity, and the rotating direction as well.
2. Since the ball mills are classified into two types: grate ball mill and overflow ball mill, please specify the type.
Technical Specifications of Dry grinding ball mill
Model |
Rotary Speed (r/min) |
The feeding size (mm) |
The final Size (mm) |
Capacity(t/h) |
Main Motor (kw) |
Weight (t) |
900×1800 |
38 |
≤ 20 |
0.075-0.89 |
0.65-2 |
18.9 |
3.6 |
900×3000 |
38 |
≤ 20 |
0.075-0.89 |
1.1-4.8 |
22 |
4.6 |
1200×2400 |
32 |
≤ 25 |
0.075-0.6 |
1.5-4.8 |
45 |
12.5 |
1200×2800 |
35 |
≤ 25 |
0.074-0.4 |
1.2-3.7 |
30 |
11.5 |
1200×3000 |
32 |
≤ 25 |
0.074-0.4 |
1.6-5 |
45 |
12.8 |
1200×4500 |
32 |
≤ 25 |
0.074-0.4 |
1.6-5.8 |
55 |
13.8 |
1500×3000 |
27 |
≤ 25 |
0.074-0.4 |
2-5 |
75 |
17 |
1500×4500 |
27 |
≤ 25 |
0.074-0.4 |
3-6 |
90 |
21 |
1500×5700 |
27 |
≤ 25 |
0.074-0.4 |
3.5-6 |
110 |
24.7 |
1830×3000 |
24 |
≤ 25 |
0.074-0.4 |
4-10 |
180 |
28 |
1830×6400 |
24 |
≤ 25 |
0.074-0.4 |
6.5-15 |
210 |
34 |
1830×7000 |
24 |
≤ 25 |
0.074-0.4 |
7.5-17 |
245 |
36 |
2200×5500 |
21 |
≤ 25 |
0.074-0.4 |
10-22 |
370 |
48.5 |
2200×6500 |
21 |
≤ 25 |
0.074-0.4 |
14-26 |
380 |
52.8 |
2200×7000 |
21 |
≤ 25 |
0.074-0.4 |
8-36 |
380 |
50 |
2200×7500 |
21 |
≤ 25 |
0.074-0.4 |
16-29 |
475 |
56 |
2100×2700 |
24 |
≤ 20 |
0.074-0.4 |
3.5-25 |
150 |
33 |
2100×3500 |
24 |
≤ 25 |
0.074-0.4 |
4.5-33 |
180 |
37 |

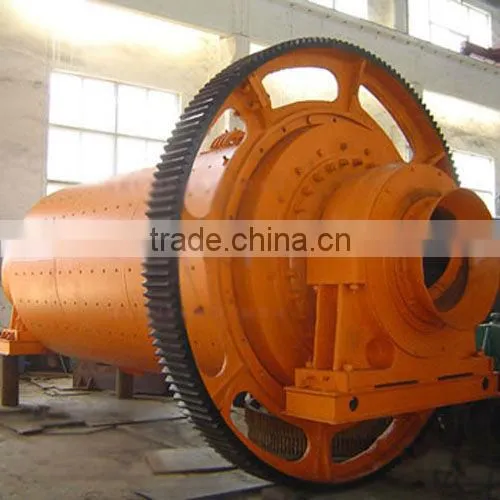

Pictures of Dry grinding ball mill
About us
Henan Hongke Heavy Machinery Co., Ltd is the proffesional and reliable manufacture for Dry grinding ball mill .
