Diesel Engine 300m Depth Trailer Mounted Water Well Drilling Rig

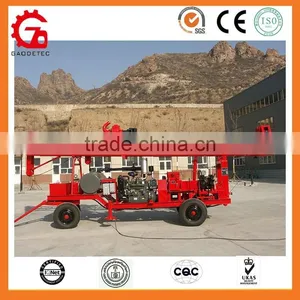

Diesel Engine 300m Depth Trailer Mounted Water Well Drilling Rig photo-1
US$ 10,000 - 100,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, power head driven drill rig
Power Type:
Diesel
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Tianjin Qingdao or other
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Other, power head driven drill rig
Power Type Diesel
Place of Origin Henan, China
Brand Name GEC
Model Number GSD-IIA
Usage Water Well
Voltage Diesel engine
Power(W) 49000
Dimension(L*W*H) 7900*2000*3000mm
Weight 3800kg
Certification ISO,CE
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

Diesel engine 300m depth trailer mounted water well drilling rig



Product Description

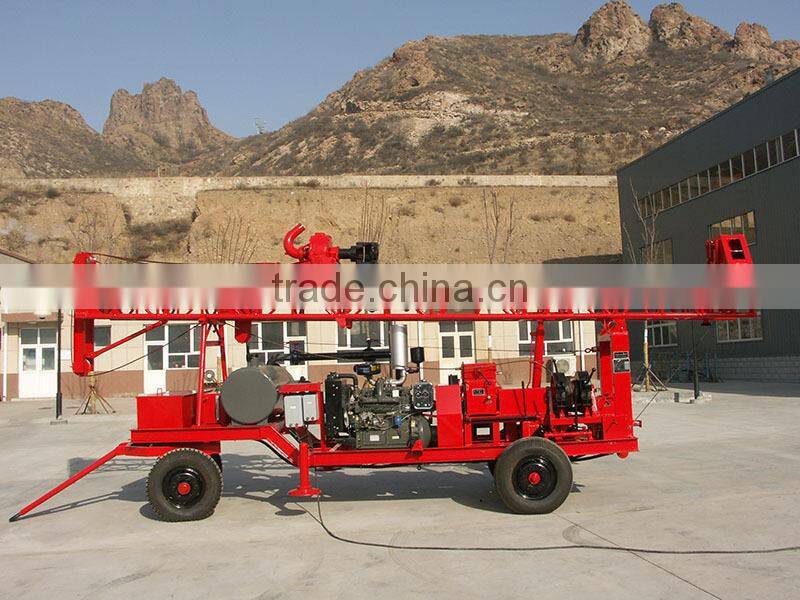

Diesel engine 300m depth trailer mounted water well drilling rig

Application:

  1. Drilling water wells for urban and rural life.
  2. Drilling water wells for agriculture irrigation and industries.
  3. Drilling for geotechnical survey.
  4. Drilling construction engineering holes.
  5. Drilling geothermal pump wells.

 Technical Data:





Specification

GSD-IIA

Drill hole diameter(mm)

90-1200

Drill hole depth (m)

300

Drill rod length (m)

3,4

Drill rod diameter (mm)

73,89,95,133

Drill head inside diameter (mm)

60,80,120

Dimension (mm)

(L×W×H)

Working condition:5300×2000×7200

Transporting condition:7900×2000×3000

Rig weight (kg)

3800

Drilling method

Normal and Reverse Circulation for both mud and air

Impactor

Middle-High-Pressure air

Power head lifting speed m/s)

0.37   0.16

Power head lifting force (kN)

                                45.40   105

Main winch lifting force (kN)

27

Feeding thrust (kN)

2

Power head rotation speed (r/min)

A(Normal:14,23,52,84)(Reverse:8,13,29,47)

B(Normal:32,52,116,188)(Reverse:18,29,65,106)

Pump group flow(m3/h)

LBN20 Pump Group

80

Power

Diesel engine

Rated power(kW)

49

Up-down mast

Hydraulic

Chassis

Trailer with four wheels

Supporting mode

Mechnical screw































































































Accessories

Diesel engine 300m depth trailer mounted water well drilling rig

Application

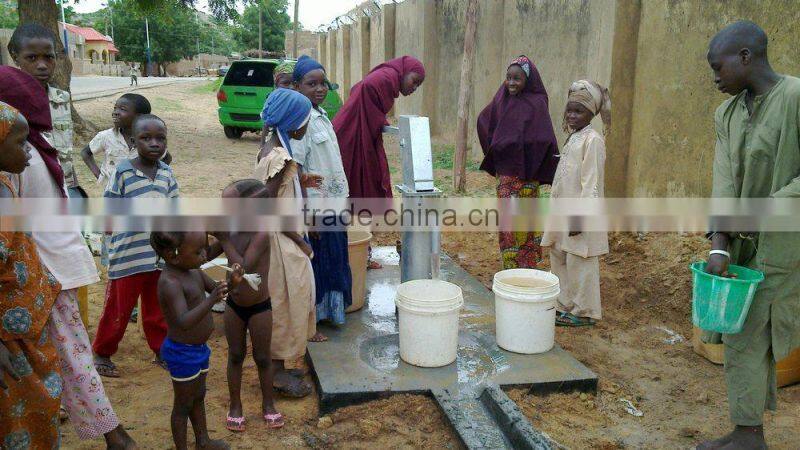

Application sites of diesel engine water well drill rig :

Diesel engine 300m depth trailer mounted water well drilling rig

Diesel engine 300m depth trailer mounted water well drilling rig

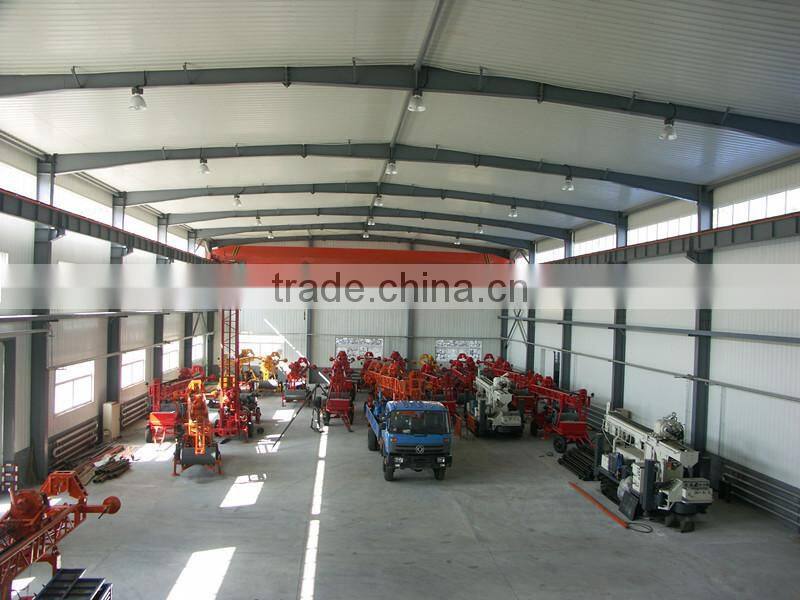

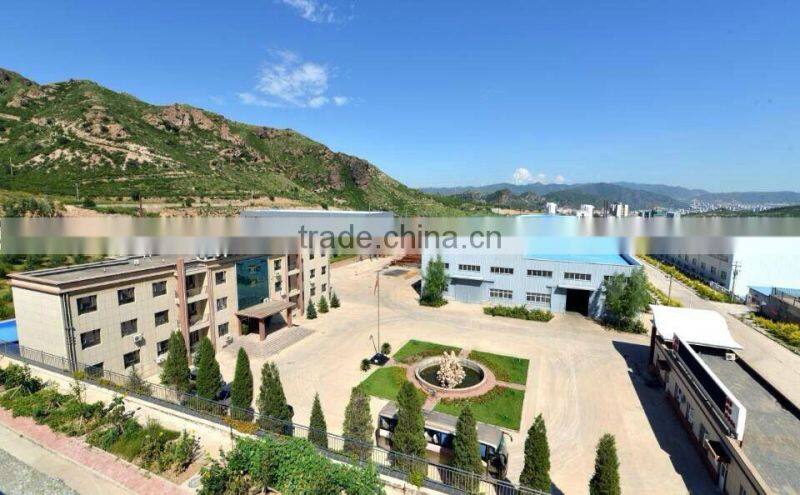

Company Information

Diesel engine 300m depth trailer mounted water well drilling rig

Diesel engine 300m depth trailer mounted water well drilling rig

Diesel engine 300m depth trailer mounted water well drilling rig

Diesel engine 300m depth trailer mounted water well drilling rig

Diesel engine 300m depth trailer mounted water well drilling rig



Certifications

Diesel engine 300m depth trailer mounted water well drilling rig

Trade assurance advantages:
1. Quickly lock trusted seller, saving time and energy;
2. Reduce the risk of online purchasing;
3. If there is a trade disputes, you can complain to Alibaba and get benefits compensation.



We are a member of trade assurance on Alibaba, and our trade assurance amount is USD78000.00 Through trade assurance you can 100% payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.
