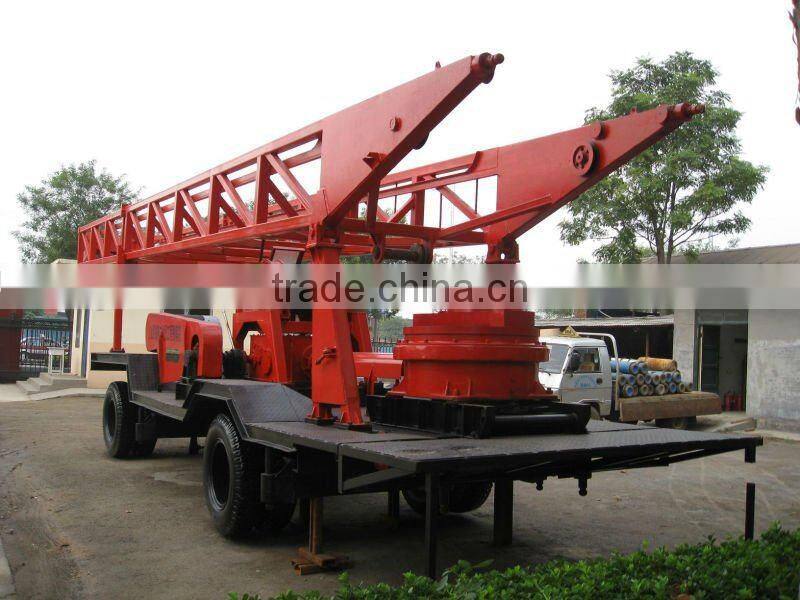

China supplier 1000m depth tractor mounted water well drill rig
Application of water well drill rig:
1.drilling for hydrogeology exploration and foundation pile hole of engineering construction.
2.it can drill soil,gravel layer and bedrock.
Feature of water well drill rig:
1SPT series is a tractor mounted rotary water well drilling rig.
2.Mechanical drive,large through hole diameter of rotary table, large torque.
3.easy operation, compact structure, complete accessories.
Specification of water well drill rig:
| Basic Parameter | ||||
| Model | SPT400 | SPT600 | SPT1000 | SPT1500 |
| Through hole diameter of rotary table | 530mm | 650mm | 650mm | 660mm |
| Drilling depth | 400m | 600m | 1000m | 1500m |
| Slewing speed of rotary table |
forward&reverse: 140,77,44r/min |
forward&reverse: 160,89,41,23r/min |
forward&reverse: 153,89,55,39r/min |
|
| Max.torque of rotary table | 16KN.m | 25KN.m | 25KN.m | 25KN.m |
| main winch single rope pull | 30KN | 50KN | 70KN | 80KN |
| Diesel engine | 100HP | 150HP | 260HP | 350HP |
| Electric motor | 75kw | 110kw | 200kw | 250kw |
| Drill tower effective height | 15.2m | 15.3m | 16m | 16m |
| Dimension | 15.2*2.5*3.6m | 15.3*2.62*3.66m | 16.3*2.62*3.66m | |
| Total weight | 12ton | 15ton | 22ton | 26ton |
Trade assurance advantages:
1. Quickly lock trusted seller, saving time and energy;
2. Reduce the risk of online purchasing;
3. If there is a trade disputes, you can complain to Alibaba and get benefits compensation.
We are a member of trade assurance on Alibaba, and our trade assurance amount is USD78000.00 Through trade assurance you can 100% payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.

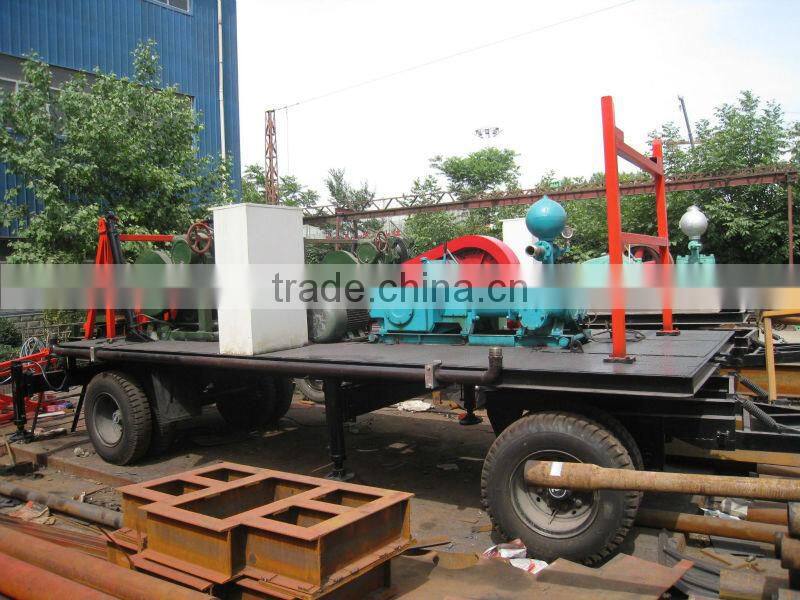

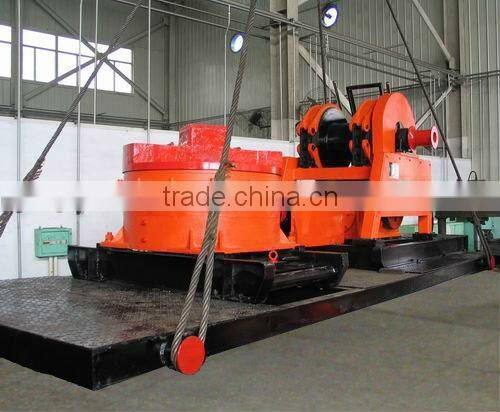

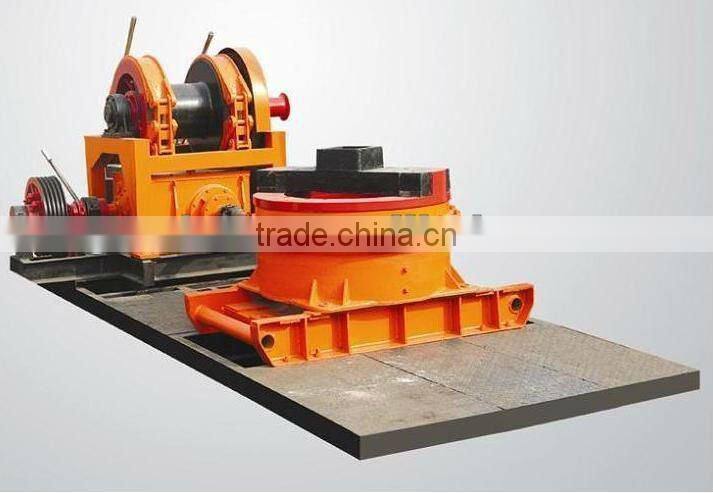

Bulk well drilling rig

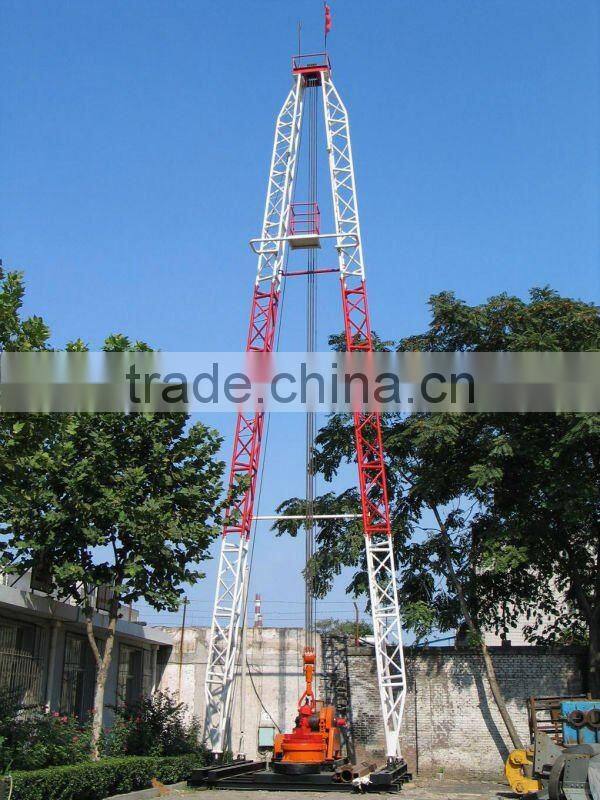

Bulk well drilling rig with tower:
