FD1565 65m Hydraulic Rotary Drilling Rig With CE&ISO

US$ 250,000 - 310,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Rotary Drilling Rig

Power Type:

Diesel

Zhengzhou Gaode Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai or other

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Rotary Drilling Rig

Power Type Diesel

Place of Origin Henan, China

Brand Name GEC

Model Number FD1565 rotary drilling rig

Usage Other, Construction project

Power(W) 133kw

Dimension(L*W*H) 15500*3200*3250mm

Weight 43500kg

Certification ISO

Warranty 1 Year

After-sales Service Provided Engineers available to service machinery overseas

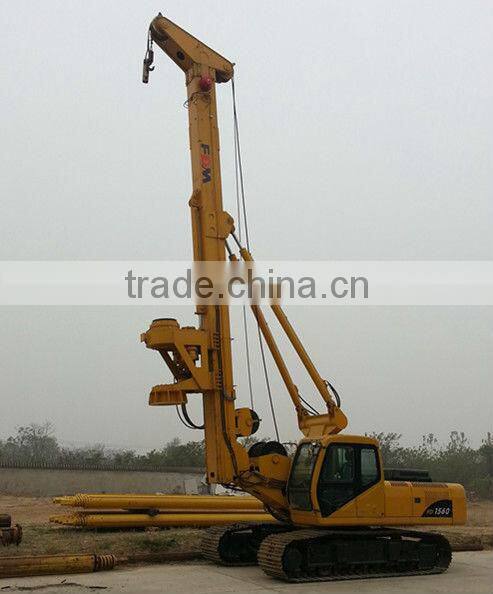

FD1565 65m Rotary drilling rig with CE&ISO

Application:

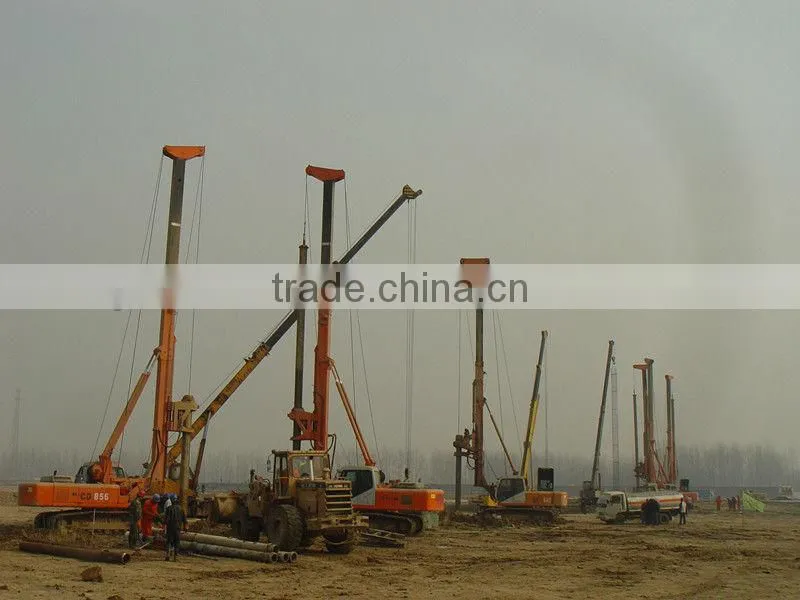

It mainly used in construction project of highway, high-speed railway, subway, high building and so on.

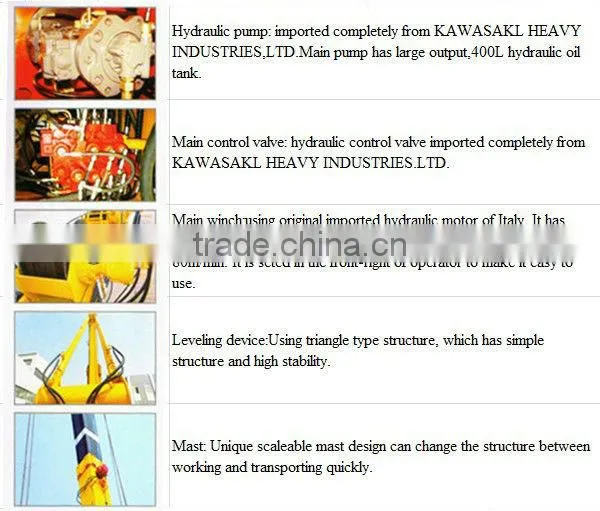

Feature:

1.Using telescopic mast, simple structure, easy transportation.

2.The "+"shape axle bed is used to stand column and link arm, so stand column can adjust all around and keep vertical on rough place.

3.Link arm and cylinder form triangle structure to increase the stability.

Technical Data:

Model		FD1565
Drilling diameter		600-1800mm
Drilling depth		65m
Overall dimension	working	2125038008050mm
Overall dimension	transporting	1550032003250mm
Total weight		43500kg
Engine	model	6BT5.9-C178
	rated power	133kw
	type	turbocharged direct injection
Rotary drive	Max. torque	75/150KN.m
Rotary drive	rotating speed	1-25rpm
Crowd cylinder	Max. push	200KN
	Max. pull	150KN
	Max. stroke	3000mm
Main winch	Max. line pull	140KN
	Max. line speed	70m/min
	Rope diameter	24mm
Auxiliary winch	Max. line pull	60KN
	Max. line speed	50m/min
	Rope diameter	18mm
Mast angle	forward and back	0-93°
Mast angle	left to right	±3°
Electric controller(opational part)	Long distance monitor system
	Drilling record system
	On car printer
Chassis	Chassis modality	customized
	Max. travel speed	1.8km/h
	Min. ground clearance	375mm
	Track width	800mm
Hydraulic system pressure		320bar
