Choose GEC,choose high quality!

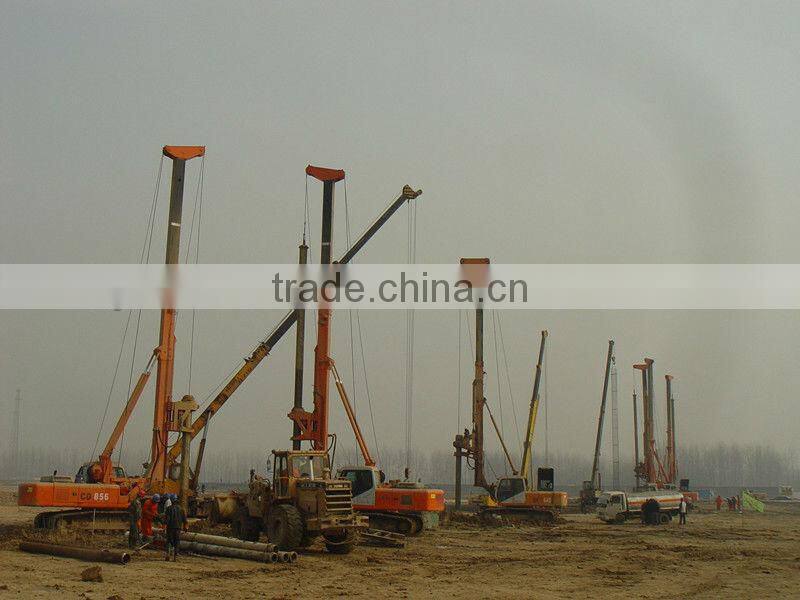

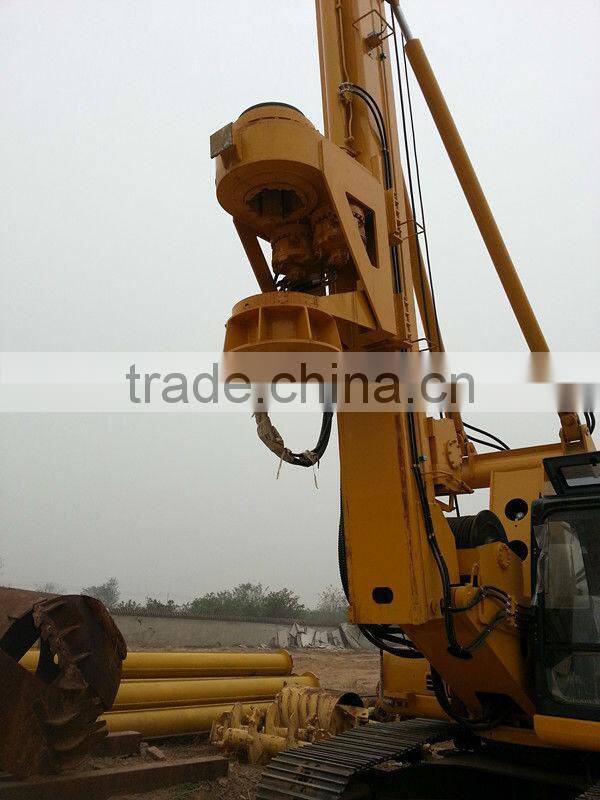

CE foundation pile Rotary drilling machine
Application of foundation pile rotary drilling machine:
It mainly used in construction project of highway, high-speed railway, subway, high building and so on.
Feature of foundation pile rotary drilling machine:
1.Using telescopic mast, simple structure, easy transportation.
2.The "+"shape axle bed is used to stand column and link arm, so stand column can adjust all around and keep vertical on rough place.
3.Link arm and cylinder form triangle structure to increase the stability.
Technical Data of foundation pile rotary drilling machine:
| Model | CD856A | |
| Drilling diameter | 600-1600mm | |
| Drilling depth | 56m | |
| Overall dimension | working | 18050*3200*7297mm |
| transporting | 14727*3200*3325mm | |
| Total weight | 38000kg | |
| Engine | model | B5.9-C |
| rated power | 112kw | |
| type | turbocharged direct injection | |
| Rotary drive | Max. torque | 80KN.m |
| rotating speed | 1-22rpm | |
| Crowd cylinder | Max. push | 150KN |
| Max. pull | 100KN | |
| Max. stroke | 2000mm | |
| Main winch | Max. line pull | 120KN |
| Max. line speed | 70m/min | |
| Rope diameter | 24mm | |
| Auxiliary winch | Max. line pull | 60KN |
| Max. line speed | 50m/min | |
| Rope diameter | 18mm | |
| Mast angle | forward and back | 0-93° |
| left to right | ±3° | |
| Electric controller(opational part) | Long distance monitor system | |
| Drilling record system | ||
| On car printer | ||
| Chassis | Chassis modality | customized |
| Max. travel speed | 2.0km/h | |
| Min. ground clearance | 500mm | |
| Track width | 800mm | |
| Hydraulic system pressure | 300bar | |
Trade assurance advantages:
1. Quickly lock trusted seller, saving time and energy;
2. Reduce the risk of online purchasing;
3. If there is a trade disputes, you can complain to Alibaba and get benefits compensation.
We are a member of trade assurance on Alibaba, and our trade assurance amount is USD78000.00 Through trade assurance you can 100% payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.
If you have any question please feel free to contact me.
Gaode Equipment Co.,Ltd.
Tel:+86-371-55951210 Fax:+86-371-63526676
Skype: lena.liu8
Whatsapp&viber: 86-15903613994
Thank you for your time and Welcome to Visit our factory!
