Choose GEC,choose high quality!

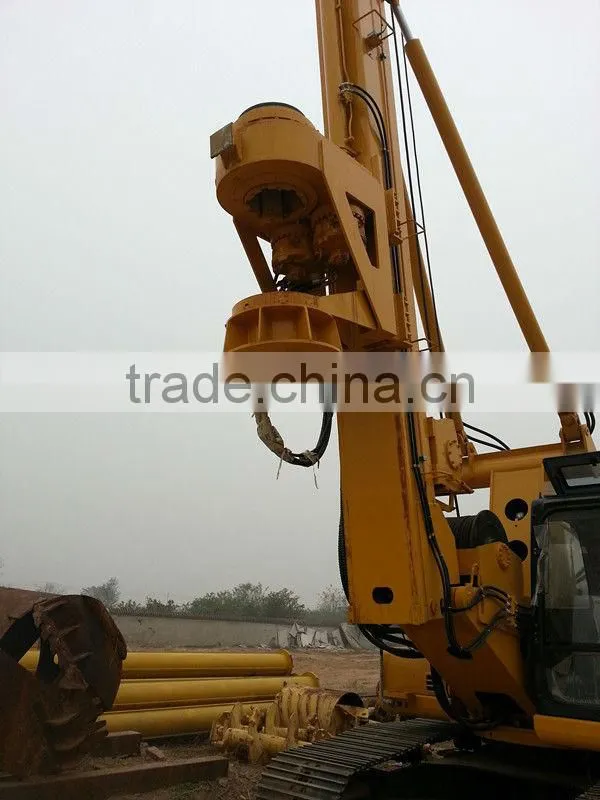

Rotary pile drilling rig of China supplier
Application:
It is used to drill for foundation pile hole.
Feature:
1. It is applied to drilling steel pipe pile,square pile,precast pile.
2.The stroke of oil cylinder can be adjusted, so it can drill lightly and heavily.
3.If you take the pile hammer away and take on the hydraulic power head,pressure cylinder, drill rod and drill bit for rotary drilling rig, it can work as a full hydraulic rotary drilling rig.
Technical Data:
| Model | YD series | |
| Drilling diameter | 200-800mm | |
| Drilling depth | 13m | |
| Overall dimension | working | 21250*3800*8042mm |
| transporting | 16460*3200*3300mm | |
| Total weight | 47000kg | |
| Engine | model | 6BT5.9-C178 |
| rated power | 133kw | |
| type | turbocharged direct injection | |
| Hammer | Max. hammer weight | 7000kg |
| hammer stroke | 500-1500mm | |
| impact frequency | 30 times/miin | |
| Max. impact force | 105KN.m | |
| machine hammer weight | 9000kg | |
| Main winch | Max. line pull | 240KN |
| Max. line speed | 70m/min | |
| Rope diameter | 24mm | |
| Auxiliary winch | Max. line pull | 60KN |
| Max. line speed | 50m/min | |
| Rope diameter | 18mm | |
| Mast angle | forward and back | 0-93° |
| left to right | ±3° | |
| Electric controller(opational part) | Long distance monitor system | |
| Drilling record system | ||
| On car printer | ||
| Chassis | Chassis modality | customized |
| Max. travel speed | 1.8km/h | |
| Min. ground clearance | 375mm | |
| Track width | 800mm | |
| Hydraulic system pressure | 320bar | |
Trade assurance advantages:
1. Quickly lock trusted seller, saving time and energy;
2. Reduce the risk of online purchasing;
3. If there is a trade disputes, you can complain to Alibaba and get benefits compensation.
We are a member of trade assurance on Alibaba, and our trade assurance amount is USD78000.00 Through trade assurance you can 100% payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.
If you have any question please feel free to contact me.
Gaode Equipment Co.,Ltd.
Tel:+86-371-55951210 Fax:+86-371-63526676
Skype: lena.liu8
Whatsapp&viber: 86-15903613994
Thank you for your time and Welcome to Visit our factory!
