high quality big rotary drilling xc220dHigh qualiy with reasonable price
Excellent performance
Good after-sales service
ISO

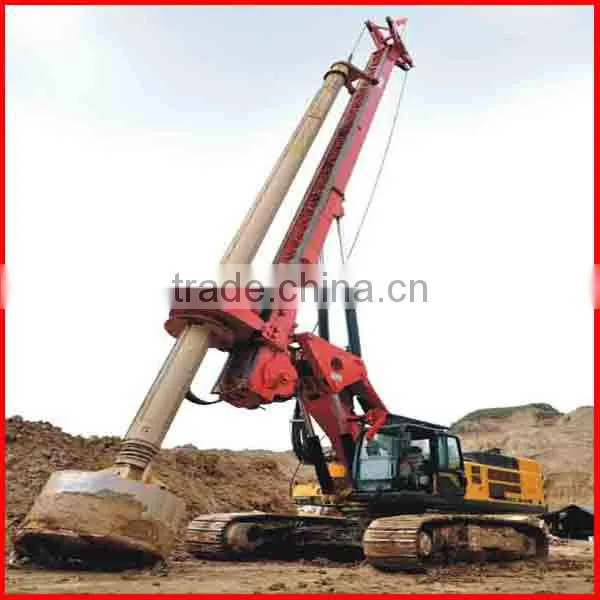

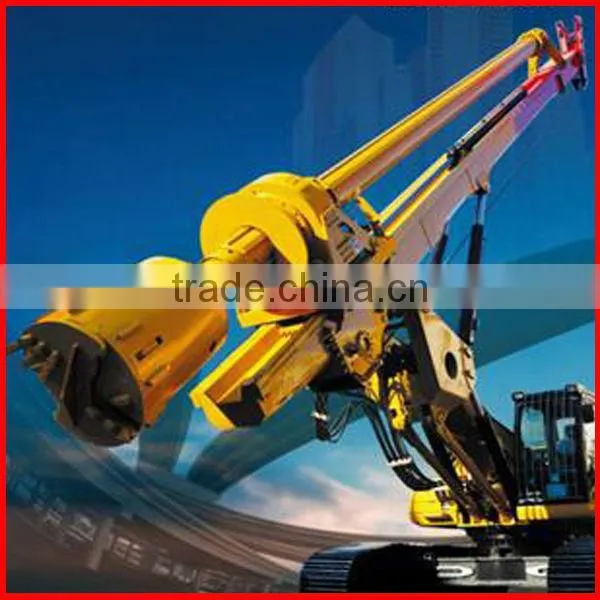

high quality big rotary drilling xc220d
Introduce:
- The hydraulic system adopts limiting power control and positive flow control, which improves the efficiency of the hydraulic system and saves more energy.
- The patent parallelogram variable structure realizes the large-scope working area. The mast is designed to be the box-type structure, which has high intensity and rigidity, effectively ensuring the drilling preciseness.
- It can be attached with 5 drill rods. The maximum drilling depth can reach 67.5m.
Model |
XR220D | ||||
|---|---|---|---|---|---|
| Engine | Model |
|
CUMMINS QSL-325 |
||
Rated power |
kW |
242 |
|||
Drill unit |
Max. output torque |
kN.m |
220 |
||
Rotary speed |
r/min |
7~22 |
|||
Max. drilling diameter |
mm |
Φ2000 |
|||
Max. drilling depth |
m |
Standard configuration67.5(friction drag*5) optional configuration53(lock*4) |
|||
Pressurized cylinder |
ure |
kN |
200 |
||
Max. hoisting power |
kN |
200 |
|||
Max. stroke |
m |
5 |
|||
Main winch |
Max. hoisting power |
kN |
230 |
||
Max. hoisting speed |
m/min |
70 |
|||
Auxiliary winch |
Max. hoisting power |
kN |
80 |
||
Max. hoisting speed |
m/min |
60 |
|||
Mast obliquity sidewise/forwards/backwards |
4'/5'/15' |
||||
Chassis |
Max. travel speed |
km/h |
1.5 |
||
Max. gradeability |
% |
35 |
|||
Min. ground clearance |
mm |
468 |
|||
Track shoe width |
mm |
800 |
|||
Max. track width |
mm |
3500~4400 |
|||
Hydraulic system |
Working pressure | Mpa |
32 |
||
Overall operating weight |
t |
70 |
|||
Dimension |
Working condition |
mm |
10260*4400*22120 |
||
Transportation condition |
mm |
16355*3500*3510 |
|||
