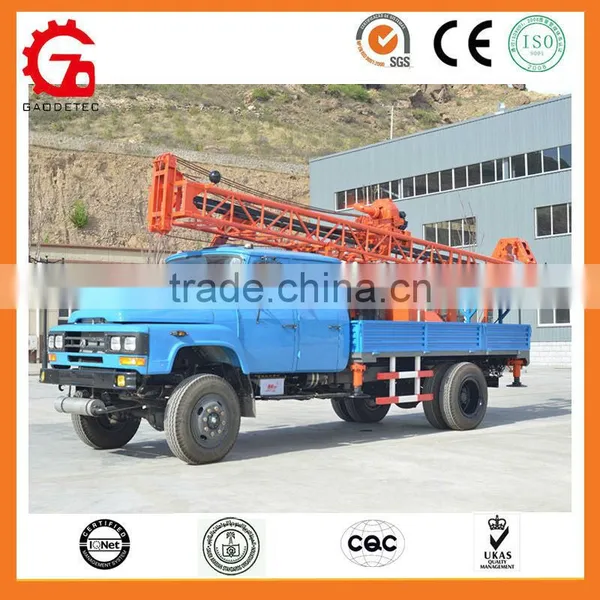

Hydraulic truck mounted water well drilling machine with CE ISO
Description:
GSD series drill is mechanical drill head type well drilling machine, which is independently researched&developed and manufactured by our company. It can be applied for different geological situation, with these characteristics as portability, high efficiency and multi-function.
Application:
1. Drilling geothermal pump wells
2. Drilling wells for urban and rural life
3. Drilling wells for agricultural irrigation and industries
4. Drilling for geotechnical survey
5. Drilling construction engineering holes
Feature:
1. Mast up-down: Hydraulic
2. Feed thrust mode: Hydraulic
3. Supporting form of chassis: Hydraulic
3. It can drill with casing pipe.
4. It can drill with mud drilling and air drilling method.
5. Mud drilling method can drill in rock.
Technical Data:
Model | GSD-Ⅱ |
Drill hole diameter(mm) | 90-1200 |
Drill depth(m) | 200 |
Drill rod length(m) | 3-6 |
Drill rod diameter(mm) | φ60,φ73,φ89,φ95,φ133 |
Through hole of power head | φ35,φ60,φ81,φ120 |
Dimension(mm) (L×W×H) | Working:7900×2370×7200 |
Transporting:8450×2370×3400 | |
Rig weight(kg) | 9100 |
Drilling method | Normal and Reverse circulation for both Mud&Air drilling |
Power head lifting speed(m/s) | 0.25 0.15 |
Power head lifting force(T) | 15 |
Main winch single rope tension(T) | 2.5 |
Feed thrust(T) | 2 |
Power head spin speed(r/min) | A(Normal:13,22,48)(Reverse:10,17,36) |
B(Normal:48,84,184)(Reverse:37,65,142) | |
Mud pump | LBN20 Normal and Reverse Pump Group |
Pressure(Mpa) | 1.2 2.0 |
Discharge(m3/h) | 450 350 |
Power unit | Diesel engine |
Rated power(kW) | 48 |
Mast Up to down | Hydraulic unit |
Truck | Dong feng (four-wheel drive) |
Supporting form of chassis | hydraulic unit |
Drilling tools of truck mounted water well drilling machine :
We also have crawler type and trailer type water well drilling machine.

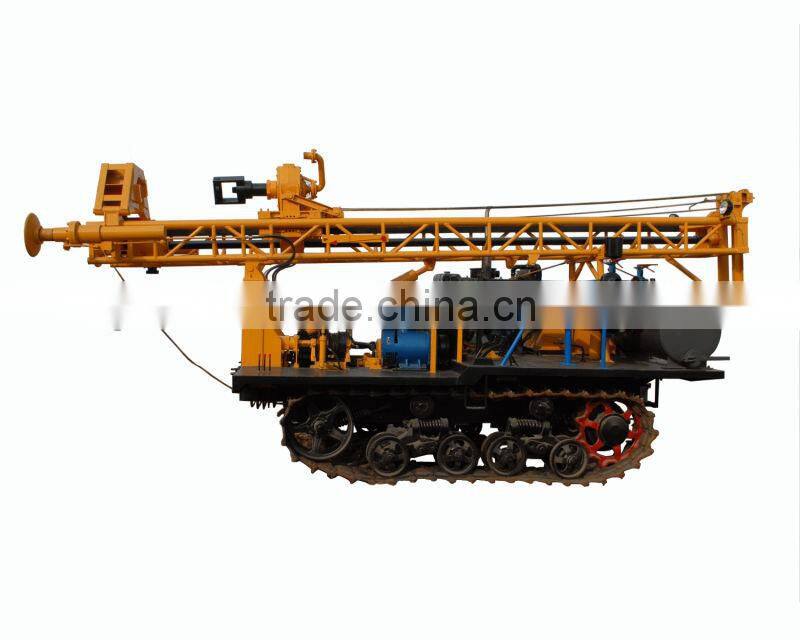

GSD-II crawler mounted drill:

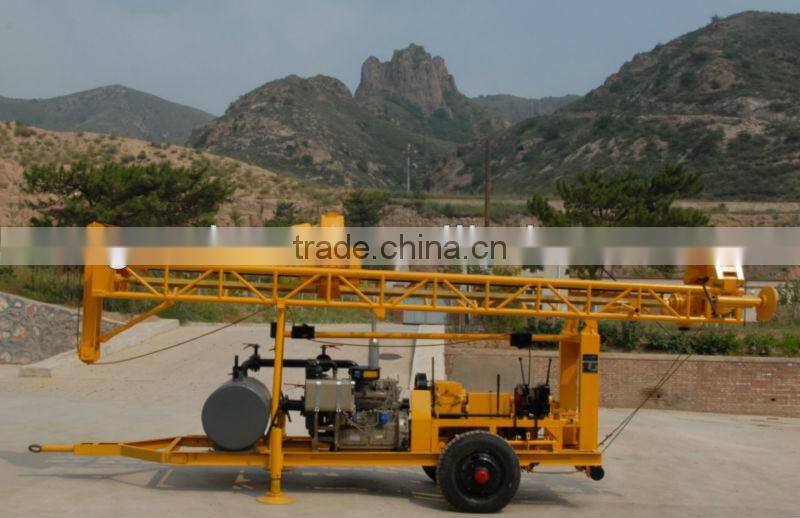

GSD-II trailer mounted drill:

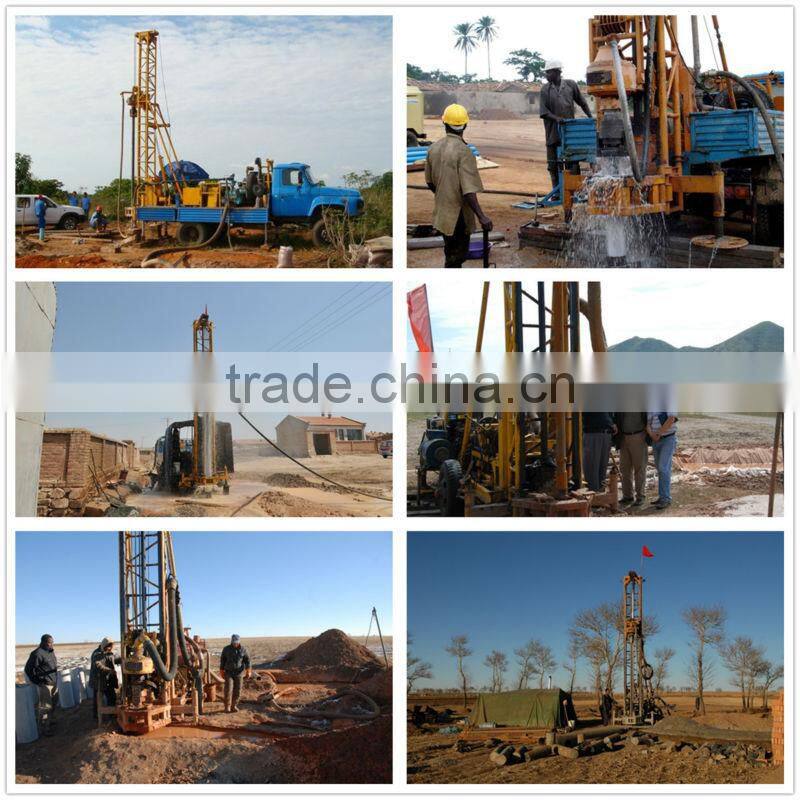

worksite:
Trade assurance advantages:
1. Quickly lock trusted seller, saving time and energy;
2. Reduce the risk of online purchasing;
3. If there is a trade disputes, you can complain to Alibaba and get benefits compensation.
We are a member of trade assurance on Alibaba, and our trade assurance amount is USD78000.00 Through trade assurance you can 100% payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.

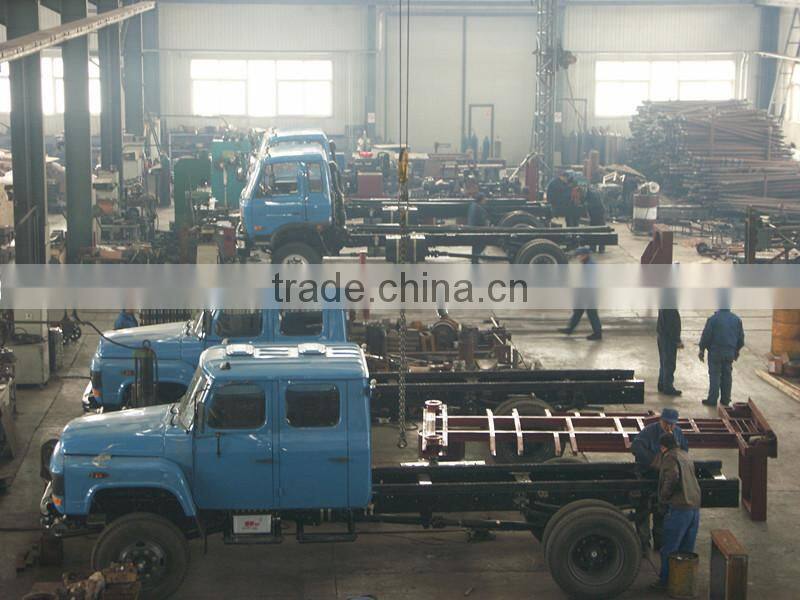

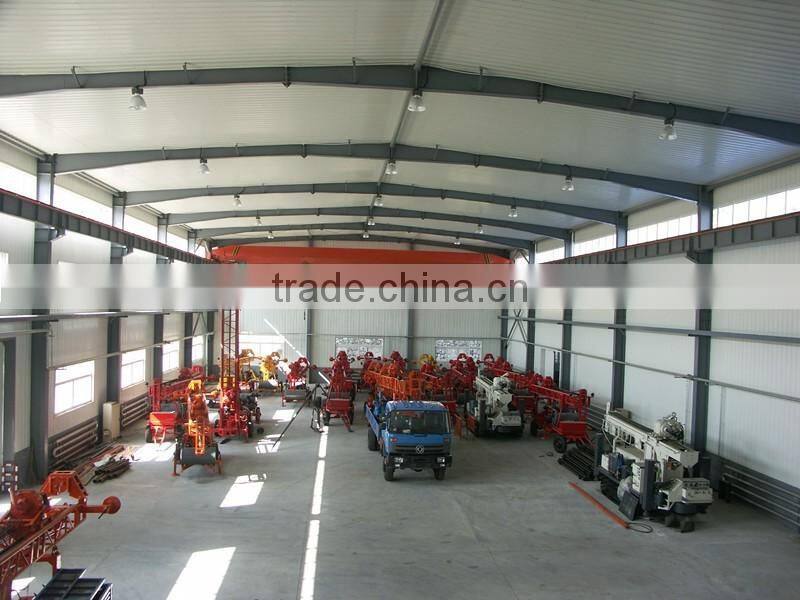

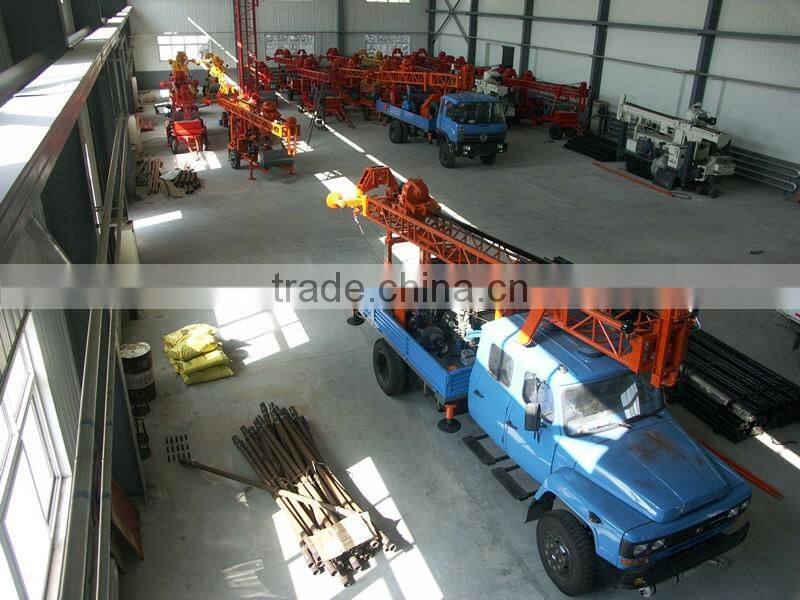

Workshop:
