Rotating-Jet Strengthening Foundation Pile Geological Drilling Rig For Sale
Features of Rotating-Jet Strengthening Engineer High Efficiency Foundation Pile Geological Drilling Rig For Sale
- Powerful
- Top-drive head driven by hydraulic, stepless speed regulation, high efficiency and low labor intensity
- Variable hydraulic system with load feedback, low energy consumoment
- First use special valve fixed position by friction, satiable for jet grouting technic
- Top-drive head has wide range of rotary speed, meet varying layer and drilling technology
- With track chassis, easy and speedy to move
- With rotary support
- Longer stroke of top-drive head, reduce auxiliary operation time
- Compact structure, centralized operation, easy and safety
- With display unit for verticality of derrick, rotaring of top-drive head and lift speed
| Model | XL-50 Track Type Rotating-Jet Drilling Rig | |
Drilling depth |
50m | |
| Rod dia. | Φ42 mm;Φ50 mm | |
| Max torque | 2000N.m | |
| Moving speed | 1.5km/h | |
| Climbing capacity | 20° | |
| Rotation speed of top-drive head | (high)0-240r/min; (low)0-80r/min | |
| Stroke of top-drive head | 3500mm | |
| Rated pull force of top-drive head | 30KN | |
| Rated thrust force of top-drive head | 12KN | |
| Fast lifting and thrust speed of top-drive head(jetting) | 0.06-0.9/1.8m/min | |
| Lifting and dropping speed of top-drive head | 0-22/0-28m/min | |
| Main pump pressure | 20MPa | |
| Auxiliary pump pressure | 20MPa | |
| Power unit | 22KW | |
| Overall dimensions(L*W*H,mm) | Working | 2600x1800x4600 |
| Moving | 4600x1800x1780 | |
| Weight | 2500kg |

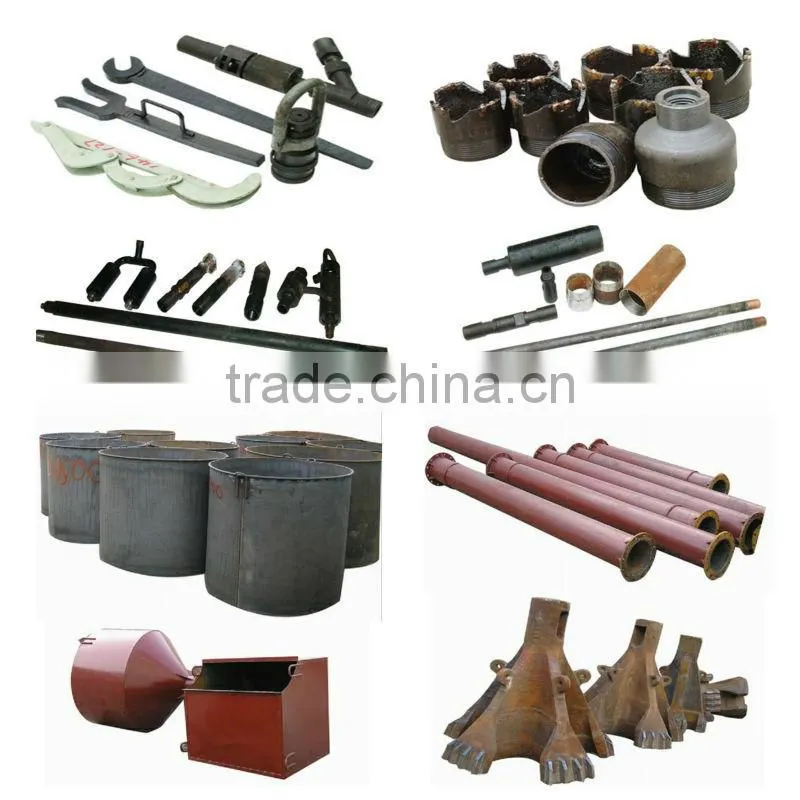

Drilling equipment of various kinds:
faucet, alloy drilling core, pipe fittings, hopper, funnel, casings, filling catheter, hammerhead, core drill pipe, joint locks,
the Soil, Single, double , three high pressure jet machines, etc.

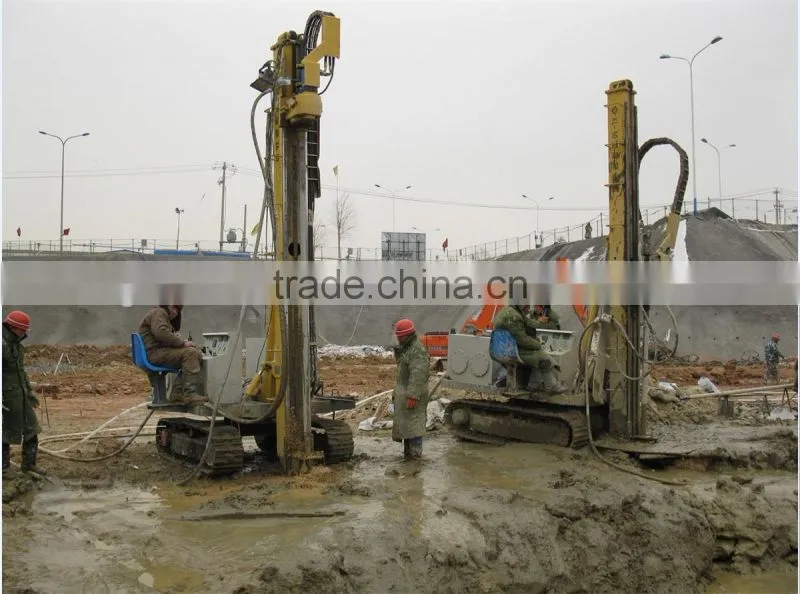

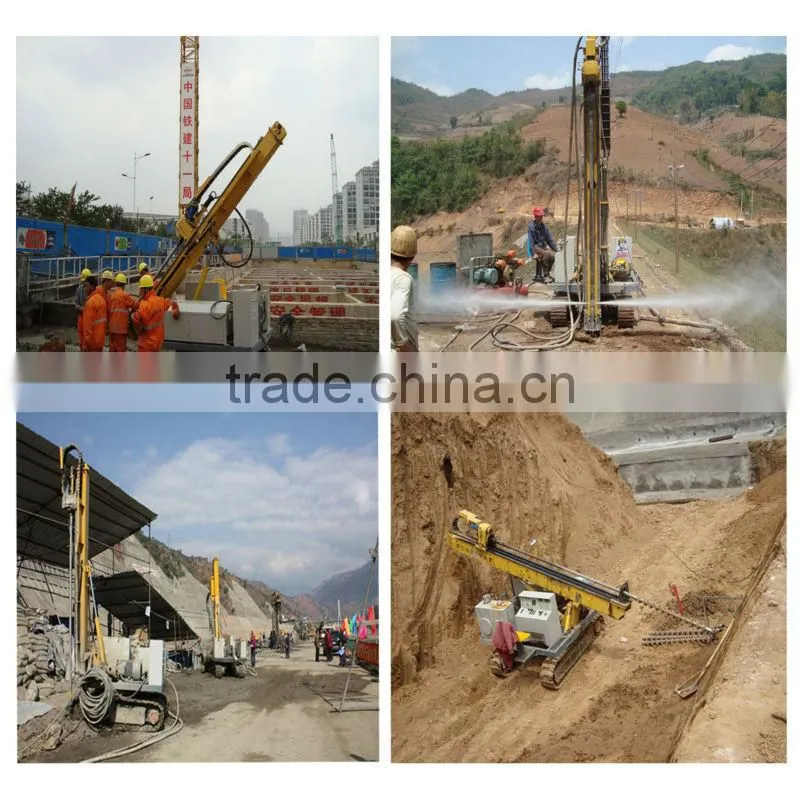

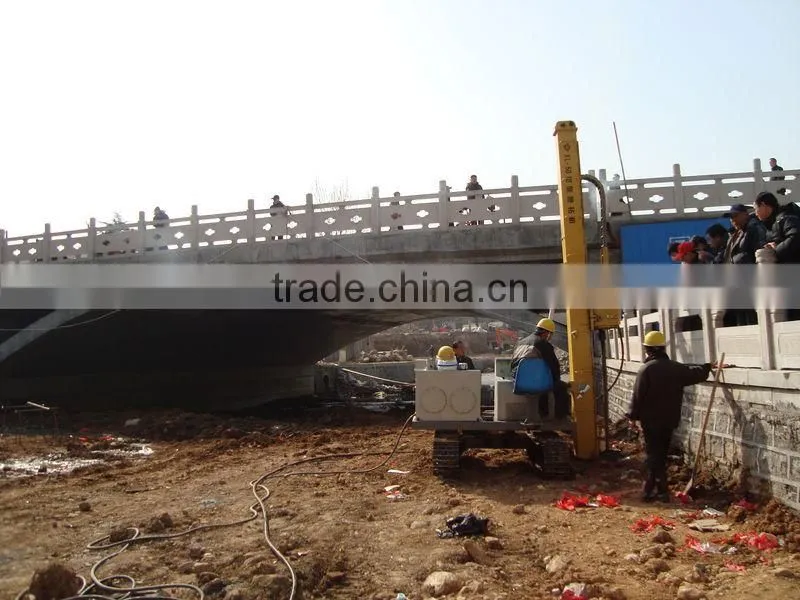

Application
Rotating-Jet Strengthening Engineer High Efficiency Foundation Pile Geological Drilling Rig For Sale mainly can be applied on ground treatment and stabilization of railway, highway, bridge, dam, industrial and civil buildings, also used in shallow core drilling and engineering geological drilling, etc.
- construction project
- hydropower project
- Jet grouting construction site
Trade assurance advantages:
1. Quickly lock trusted seller, saving time and energy;
2. Reduce the risk of online purchasing;
3. If there is a trade disputes, you can complain to Alibaba and get benefits compensation.
We are a member of trade assurance on Alibaba, and our trade assurance amount is USD78000.00 Through trade assurance you can 100% payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.
Rotating-Jet Strengthening Engineer High Efficiency Foundation Pile Geological Drilling Rig For Sale
Packaging Detail: Standard export packaging; or as your requirements
Shipping Detail: in stock; out of stock(20 working days); customized(30 working days)
Rotating-Jet Strengthening Engineer High Efficiency Foundation Pile Geological Drilling Rig For Sale is mainly applied in ground treatment and stabilization of railway, highway, bridge, dam, industrial and civil buildings, and also used in shallow core drilling and engineering geological drilling project, etc.
1: How long does it take to drill 50m hard rock layer?
That all depends. It is decided by the hardness of rock and your operating experience. As for the efficiency, it may need more time to drill 50m rock layer compared with those big drilling machines with air compressor.
2: Can it be used for railway, street, bridge, dam foundation or building drilling?
Of course, XL-50 is specially designed for railway, street, bridge, dam foundation oand building drilling and engineering drilling. if you buy it for that, it will be your best choice. It can be
used for mine exploration, too.
3: How about the engine, diesel or electric?
It can be powered by 22HP diesel engine or electric motor. It is all by your option.
4: Could you train our workers?
XL-50 is easy to be operated. After you buy our product, detailed operation instructions with video will be offered. We will be responsible all the time. Also we can talk about sending engineers to help you.
more details, please feel free to contact us! Thanks.
Rotating-Jet Strengthening Engineer High Efficiency Foundation Pile Geological Drilling Rig For Sale
We provide high quality drilling rigs, and overseas after sale services.
Rotating-Jet Strengthening Engineer High Efficiency Foundation Pile Geological Drilling Rig For Sale
We manufacture various kinds of drilling rigs, mud mixer, injectting pump machines as follows:

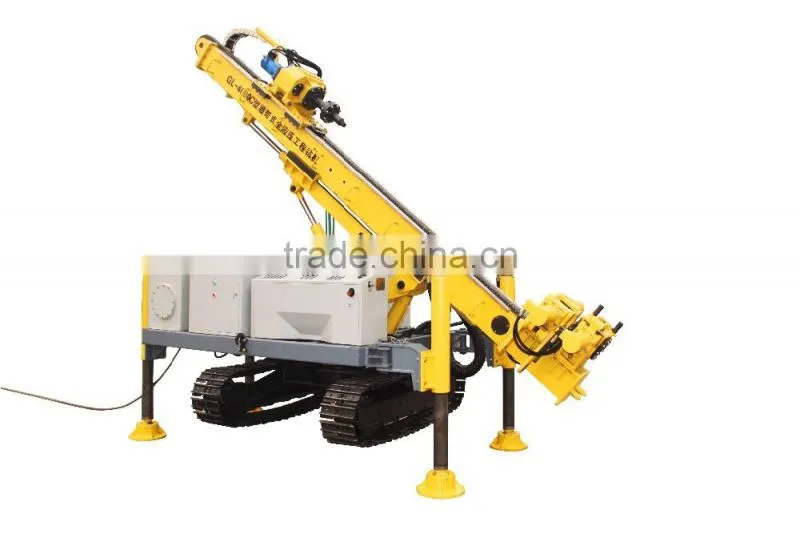

- GL-6000 Full Hydraulic Crawler Engineering Drilling Rig
- GL-4000 Track Type Full Hydraulic Drilling Rig

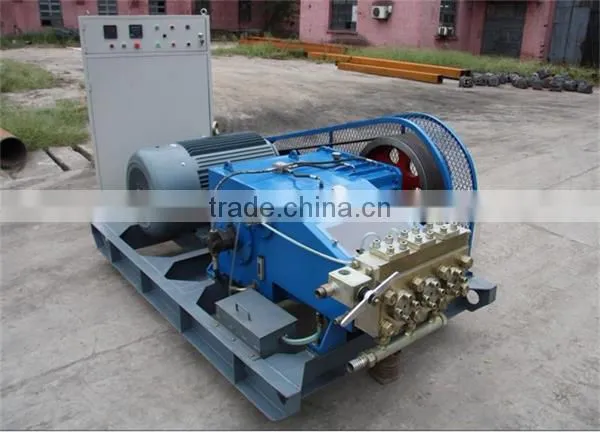

- BP-55 High Pressure Grouting Pump With Frequency-Conversion
- NJ Mud Mixer
Certification of our company:
If you have any question please feel free to contact me.
Gaode Equipment Co.,Ltd.
Tel:+86-371-55951210 Fax:+86-371-63526676
Skype: lena.liu8
Whatsapp&viber: 86-15903613994
Thank you for your time and Welcome to Visit our factory!
