Home > Products > Concrete&Refractory Shotcrete Equipment > GZ-3A anti-explosion dry spraying concrete gunning machine
GZ-3A anti-explosion dry spraying concrete gunning machine
- 10000 Set / Sets per Month
- Qingdao Shanghai or Tianjin
- T/T
Product Details
Condition: | New | Max. Conveying Distance: | 200m | Max Aggregate Size: | 10mm |
Hose Inner Diameter: | 50 mm | Air Consumption: | 4.8m3/min | Place of Origin: | Henan, China |
Brand Name: | GEC | Model Number: | GZ-3 | Voltage: | Air Motor |
Power(W): | Air | Dimension(L*W*H): | 1.13*0.54*1.02m | Weight: | 430kg |
Certification: | ISO,CE | Warranty: | 1year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

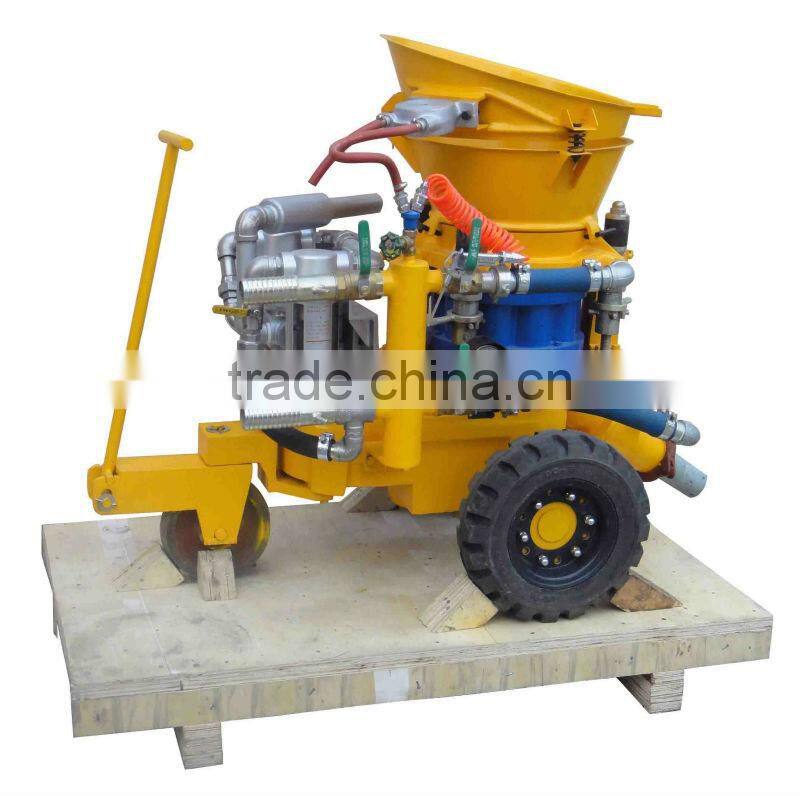

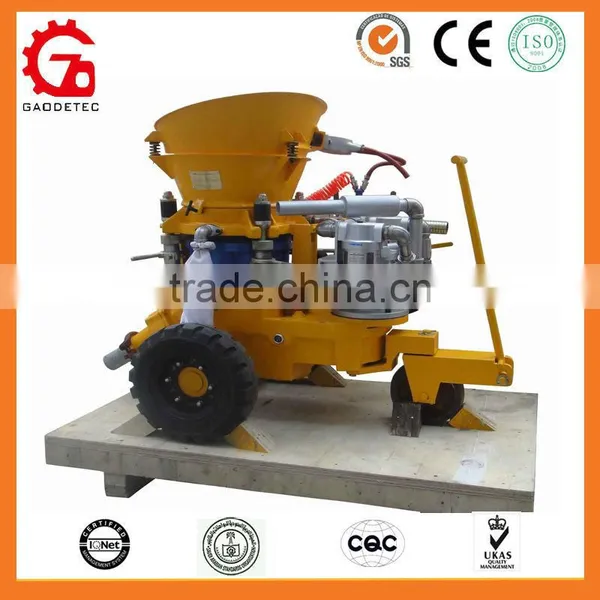

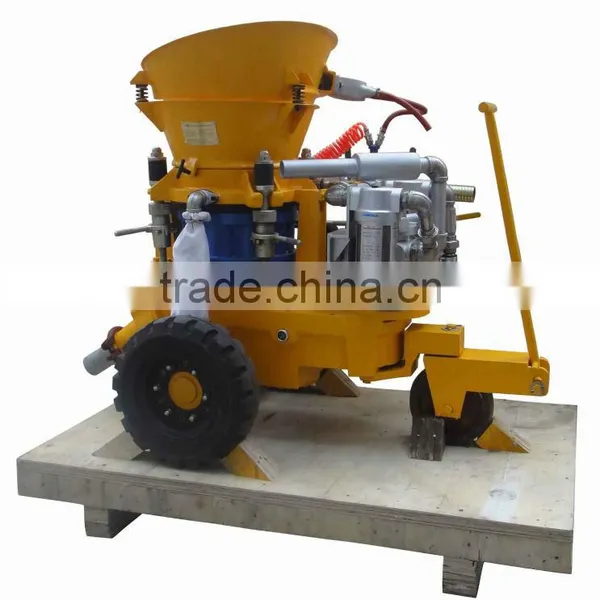

GZ3A anti-explosion dry spraying concrete gunning machine
GZ-3A anti-explosion dry spraying concrete gunning machine description:
GZ-3A anti-explosion dry spraying concrete gunning machine is small-sized shotcrete gunning machine for the dry spraying process.
GZ-3A anti-explosion dry spraying concrete gunning machine can be used as well for small jobs, such as joint filling, swimming pool, refractory application and extensive slope consolidation work, etc.

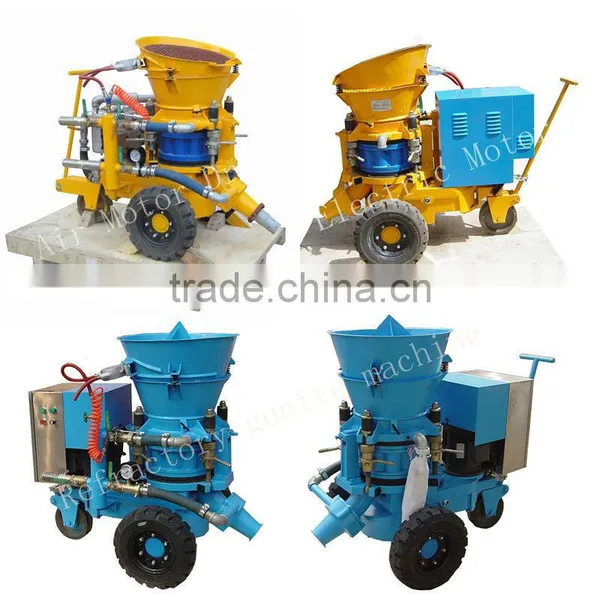

GZ-3A anti-explosion dry spraying concrete gunning machine is available in following versions:
Basic: electric drive can be combined with tyre chassis
Extended (optional): air motor or diesel drive combined skid or rail-wheel
GZ3A anti-explosion dry spraying concrete gunning machine features:
Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.
Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dusk leak and prolong consumption parts life.
GZ3A anti-explosion dry spraying concrete gunning machine technical data:

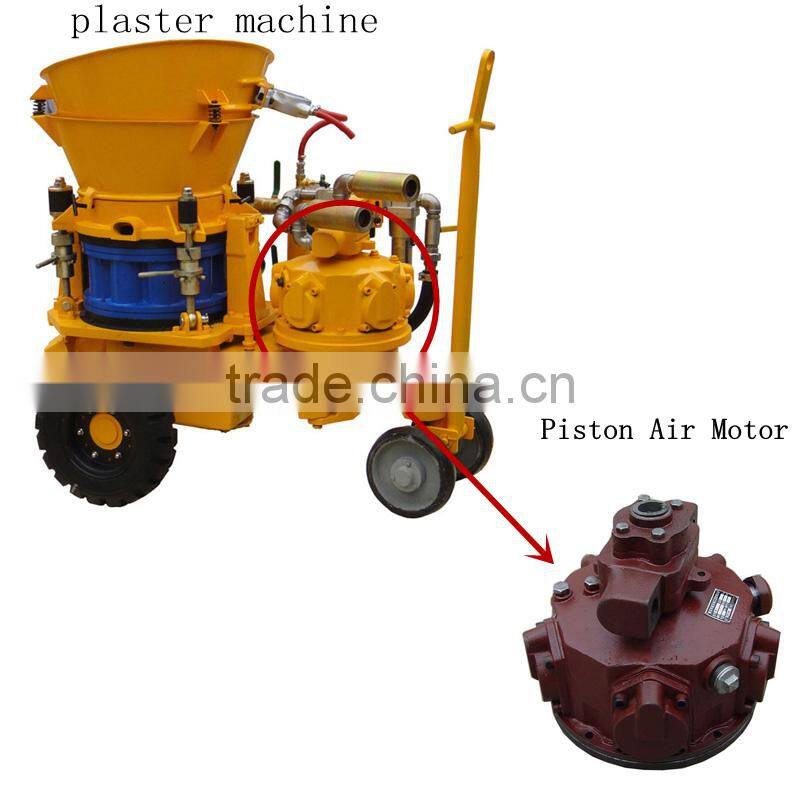

Air Motor Driven
Output Capacity | 1.5-3m3 /h |
Max. Horizontal Conveying Distance | 200m |
Suitable Mix Ratio(Cement/Sand) | ≤1:3~5 |
Max. Aggregate Size | Φ10 mm |
Conveying Hose Inner Diameter | Φ50mm |
Conveying Pressure | 0.2-0.4MPa(29-58PSI) |
Air Consumption for conveying material | 5~6m3/min(180-215CFM) |
Air Motor Air Pressure | 0.5MPa(71PSI) |
Material Charging Height | 0.9m |
Rotor Speed | 14r/min |
Air Motor Type | TMH3.2 |
Air Motor Air Consumption | 4.8m3/min(171CFM) |
Overall Dimension(length×width×height) | 1.13×0.54×1.02m |
Net Weight | 430kg(947lbs) |
Gunning machine Package:
Gunning machine Application:
Workshop:
Outward Bound:
Certificate:
