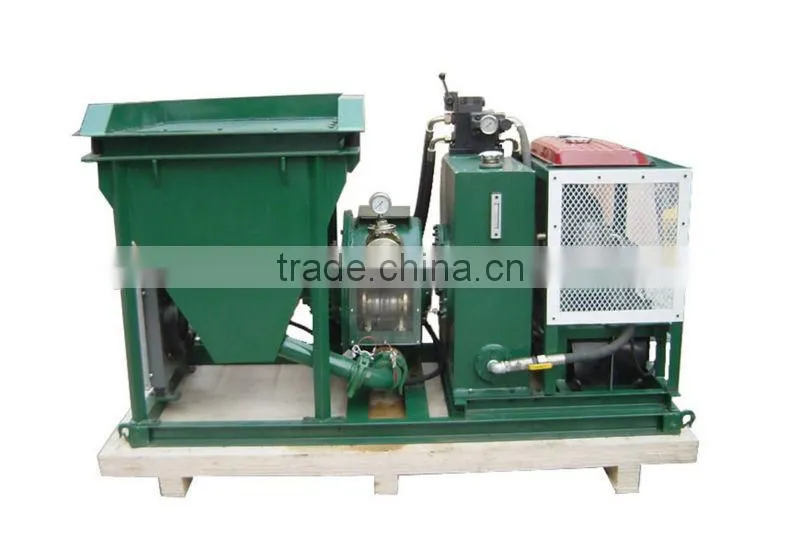

GPS-7 hydraulic stepless speed change S valve portable concrete pump
Production Description:
GPS-7 hydraulic stepless speed change S valve portable concrete pump mainly used for wet spraying for roads, railways, mining and tunnel, spraying mixed vegetation for slope of road and railway, grouting for wall, pumping fine aggregate concrete and so on. It’s adopted internationally hydraulically driven wet spray technology, thus transmission distance and height increased 3-5 times than the rotor wet spray machine.
Peoduction Features:
1.GPS-7 portable concrete pump has stepless speed change. The conveying output is 0-7 cubic meters / hour.
2.The portable concrete pump has hydraulic power. The export is connected with high pressure hose. The nozzle is connected with a small 10 cubic meters of air compressors to achieve wet spraying. This changed the traditional use of large 20 cubic meters of air compressor.
3.Compared with rotary pneumatic wet spraying machine, this machine has a smaller size, superior performance, lower maintenance costs, easier to operation, better flexibility, and widely range of applications
Technical data:
Parameter |
Unit |
Data |
|
Productivity |
m3/h |
7 |
|
Max. particle size |
mm |
15 |
|
Fineness modulus of aggregate |
|
≥2.5 |
|
Dosage of liquid accelerator |
% |
3.5 |
|
Hose diameter |
mm |
51 (2″) |
|
Concrete slump |
cm |
8~15 |
|
Systematic wind pressure |
MPa |
≥0.5 |
|
Pump outlet pressure |
MPa |
6 |
|
Wind consumption |
m3/min |
≤6 |
|
Max. conveying distance |
Horizontal |
m |
300 |
Vertical |
m |
80 |
|
Dust alongside machine |
mg/m3 |
<6 |
|
Rebound(Under standard technology) |
% |
Average≤15 |
|
Motor power |
kW |
11/15 |
|
Gauge |
mm |
600.762.900 |
|
Overall dimension(Tyre type)(L×W×H) |
mm |
2500×1010×1450 |
|
Weight |
kg |
960 |
|
Note: It’s optional for tyre type and track type walking structure.
Application:
FAQ
1. Methods of Payment:
Trade Assurance,T/T (Telegraphic Transfer) , Western Union or L/C at sight;
2. Handling time for an order:
Based on order quantity, normally it takes 25 days for production;
3. Shipping way:
Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air;
Bulk order: we suggest by air or by sea.
4. Quality Control:
We have our own experienced QC and ISO9001.
There will be strict inspection and testing for every order before shipping out.
5. After Services:
a. Our sales team will response for your question within 24 hours (Holidays Excluded);
b. Technical Support will be available in any time;
Package:
Workshop:
Certificate:
