Home > Products > Concrete&Refractory Shotcrete Equipment > New Product Have in Stock for Refractory Dry Mix Concrete Shotcrete Machine
New Product Have in Stock for Refractory Dry Mix Concrete Shotcrete Machine
- 500 Set / Sets per Month
- Qingdao Shanghai Tianjin
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Condition: | New | Max. Conveying Distance: | 200m | Max Aggregate Size: | dia.10mm |
Hose Inner Diameter: | 38 mm | Air Consumption: | 5-6m3/min | Place of Origin: | Henan, China |
Brand Name: | GEC | Model Number: | GZ-3E-R | Voltage: | 3 phase,380V,50Hz |
Power(W): | 4kw | Dimension(L*W*H): | 1130*540*1100mm | Weight: | 430kg |
Certification: | CE,ISO | Warranty: | 12months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Choose GEC,choose high quality!

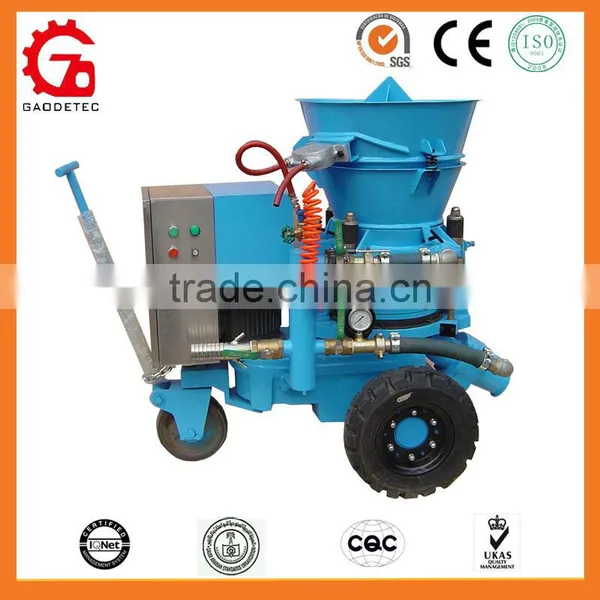

GZ-3E-R Refractory Dry Mix Concrete Shotcrete Machine
GZ-3E-R Dry Mix Concrete Shotcrete Machine Describe
GZ-3E-R is specifically designed for Refractory Dry-mix shotcrete applications, as well as for concrete shotcrete application.
With this GZ-3E-R, you can get low dust and high performance spraying flow in nozzle.
GZ-3E-R Dry Mix Concrete Shotcrete Machine Application
1. Gunite Swimming Pool Construction
2. Soil Retention and Retaining Walls
3. Rocks aping
4. Refractory Spraying
5. Mine Support
6. Tunnel Linings
7. Concrete Repair
8. Artificial Rocks and Caves
9. Low-volume Refractory Spraying
GZ-3E-R Dry Mix Concrete Shotcrete Machine Advantage
1. High quality, reliable performance.
2. Good seal performance, little dust.
3. Reasonable design, convenient to move.
4. Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
5. Thin follow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.
6. We make it easy to adjust the press between sealing plate and rotor disk so as to no air and dust leak and prolong consumption parts life.
7. Widely used in mining, tunnel, culvert, revetment, etc.
GZ-3E-R Refractory Dry Mix Concrete Shotcrete Machine Technical Data
Specification (with Electric motor drive): | |
Rated Output | 3-5m3 /h |
Max. Horizontal Conveying Distance | 200m |
Max. Aggregate Size | Dia.10 mm |
Conveying Hose Inner Diameter | 38mm |
Operating air Pressure | 0.2-0.4MPa(29-58PSI) |
Air Consumption | 5~6m3/min(180-215CFM) |
Motor Power | 4kw |
Voltage | 3 phase,380V,50Hz |
Material Charging Height | 1.1m |
Rotor Speed | 13.2r/min |
Overall Dimension(L×W×H) | 1130*540*1100mm |
Weight | 430kg |
GZ-3E-R Dry Mix Concrete Shotcrete Machine Pictures
Certification of our company:
Factory
We also can accord to your demands to design concrete pumps, if need, please feel free to contact Lena Liu. Skype: lena.liu8
