Specifications
Supply Shotcrete Equipment for ConstructionProvides high quality and efficiency shotcrete machine
Output: 3-9m3/h

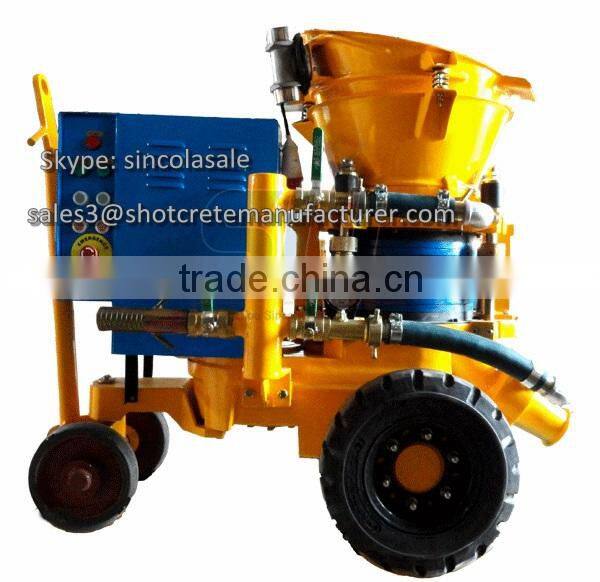

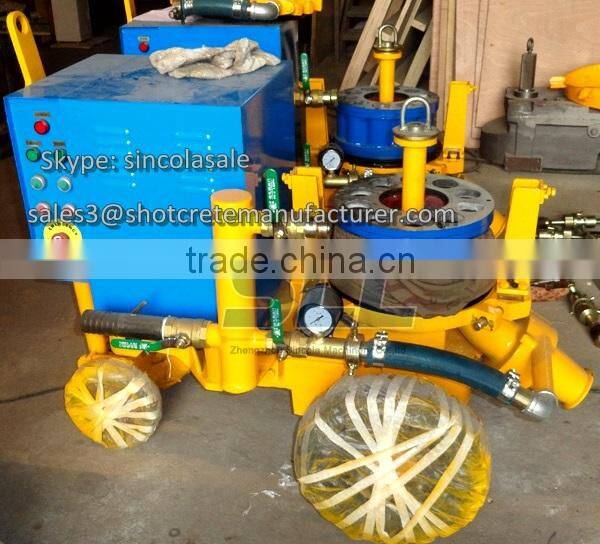

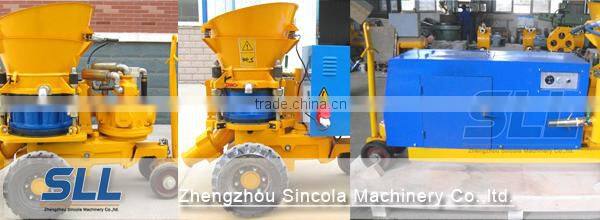

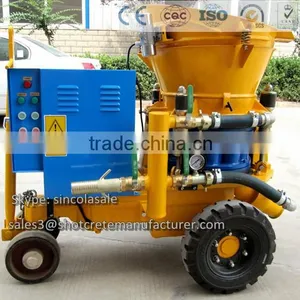

Introduction of Shotcrete Machine
- Shotcrete Machine is mainly Efficient to spray dry or wet mix concrete or other mortar;
- Widely employed in construction, such as mining,tunnel lining,channel lining, culvert, subway, seismic rehab,specialty projects,hydropower,engineering,etc.
- Our products shotcrete machine have been exported to a lot of countries. The spray machine is popular in our factory and selling fast.
- The dynamic system of Dry shotcrete machine have three types: Air Motor,Diesel Motor and Electric Motor.

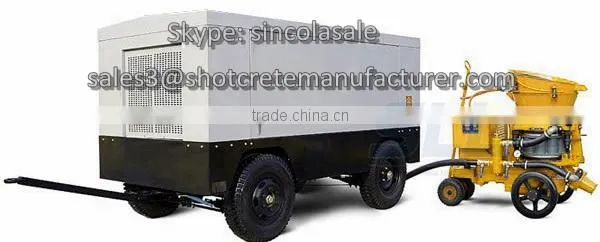

- Gunite machines can use air pressure to convey dry or wet material from the machine through the hose to the nozzle where water is added.
Technical Parameters of Shotcrete Equipment
| Model | SPZ-3 | SPZ-5 | SPZ-9 |
| Output (m3/h) | 3 m3/h | 5.5 m3/h | 9 m3/h |
| nv.dist | 200 | 200 | 150 |
| Water cement ratio | < 0.4 | < 0.4 | < 0.35 |
| Max.Aggregate.size | 10mm | 15mm | 20mm |
| Hose inner size | φ42/50 mm | φ50 mm | φ60 mm |
| Operating air pressure | 0.2-0.6 MPa | 0.2-0.6 MPa | 0.2-0.6 MPa |
| Air consumption | 5-6 m3/min | 7-8 m3/min | 9-10 m3/min |
| Motor power | 3 kW(4hp) | 5.5 kW(7hp) | 7.5 kW(10hp) |

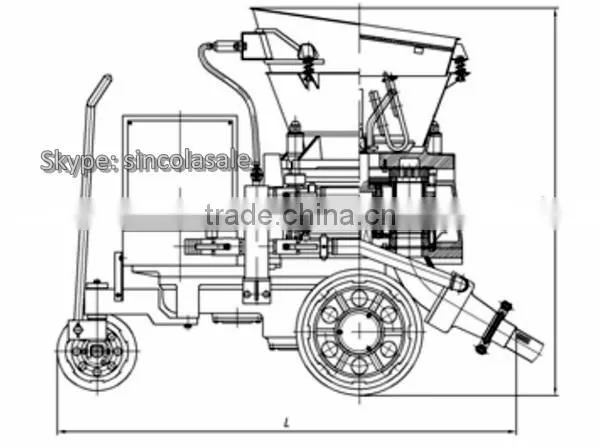

| Dimension(LxHxW) | 1130x1020x540mm | 1350x1020x750mm | 1500x1320x830mm |
| Weight | 520kg | 780kg | 980kg |
| Voltages | 220V/380V/400V/415V/440V/660V 50Hz/60Hz | ||
| Basic chassis | 1.Tyre 2.Skid 3.Rail-wheel | ||
| Driving Type | Electric Motor | ||

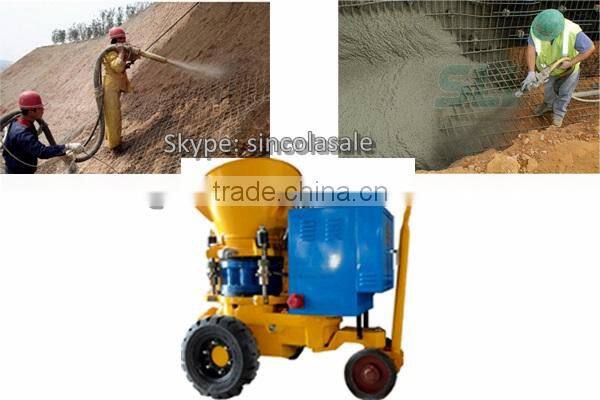

Applications Of Gunite Machine
1. Used for dry mix concrete spraying operation.
2. Shotcrete for Civil Underground Foundation , Express-Way Construction, Railway Construction;
3. Shotcrete for building surface;
4. Shotcrete for Tunneling , Mining ,Hydropower Project;
5. Shotcrete for Slope Stabilization.
For example, build up the swimming pool.
Features of Dry Mix Gunite Shotcrete Machine
1. the shotcrete machine is high efficiencyand quality
2. Spare parts of the machine is not easy to loss,and have a long service life.
3. Operation easily and it is convenient to maintenance
4. Environmental
5. Shotcrete machine price is cheap.

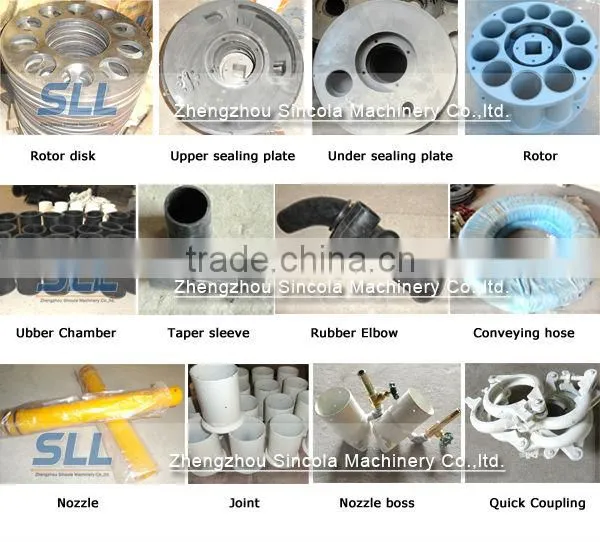

Matching Spare Parts of Spraying machine
- Three Quick Coupling
- One Long Joint
- Four Joint Clamp
- One Conveying hose
- One Upper sealing plate
- One Lower sealing plate
- One Rubber Elbow
- One Taper sleeve
- Ten ubber Chamber
- One Nozzle and seat
- One Nozzle

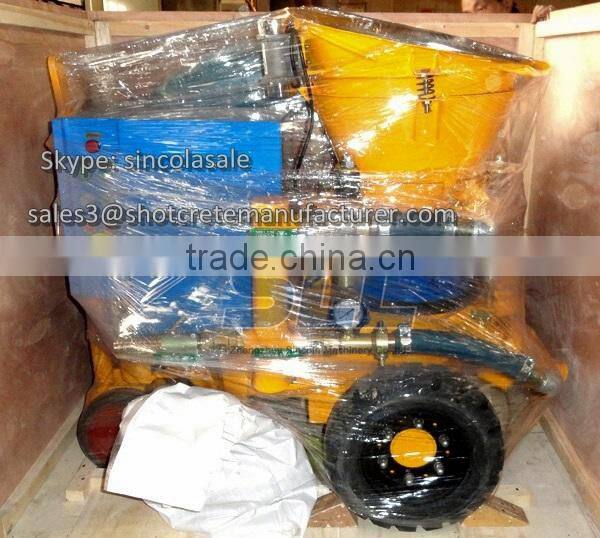

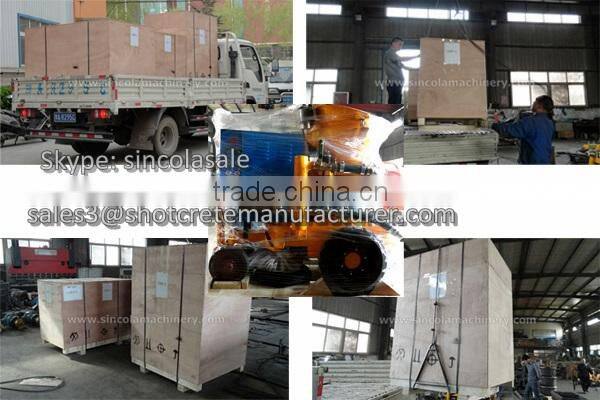

Packaging: The wooden cases with international standard, free fumigation safe Wood case package.
Delivery: 10-15 working days after the confirmation of the order
FAQ:
1. How much is Max.Aggregate.size of concrete shotcrete machine?
SPZ-3 10mm
SPZ-5 15mm
SPZ-9 20mm
2. How much is the output of Dry Mix Gunite Machine?
SPZ-3 Output: 3 m3/h
SPZ-5 Output: 5.5 m3/h
SPZ-9 Output: 9 m3/h
3. Can be used to build a swimming pool, shotcrete wall etc.?
Of course,It is suitable.
4. What is the difference between the wet spray machine and dry shotcrete equipment?
Wet Mix Shotcrete Machine sprays the wet concrete, While dry shotcrete equipment is dry concrete.
5. What is the machine used for ?
mining,tunnel lining,channel lining,culvert,subway,seismic rehab,specialty projects, hydropower, engineering, etc
6. What raw materials can the machine spray?
Spraying cement, small rock, sand, water etc.
7. Is the voltage of the machine variable?
Acceptable if you need.
8. How long is the lenght of delivery rubber hose?
It is 20m, If the length is not enough, a few rubber hose can be spliced together.
9. What is advantage?
High quality, high efficiency, environmental protection
10. If the delivery rubber hose is blocked, how to do?
Follow the instructions to use, generally It will not be blocked, if blocked, you can use water or air to rush in it
If you ask, I will answer in time.
Any question of my product concrete or cement shotcrete machine
Please contact me
My Skype: sincolasale
