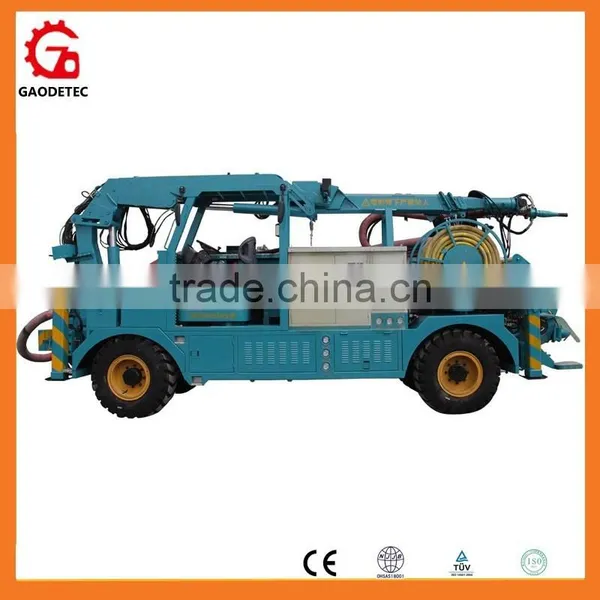

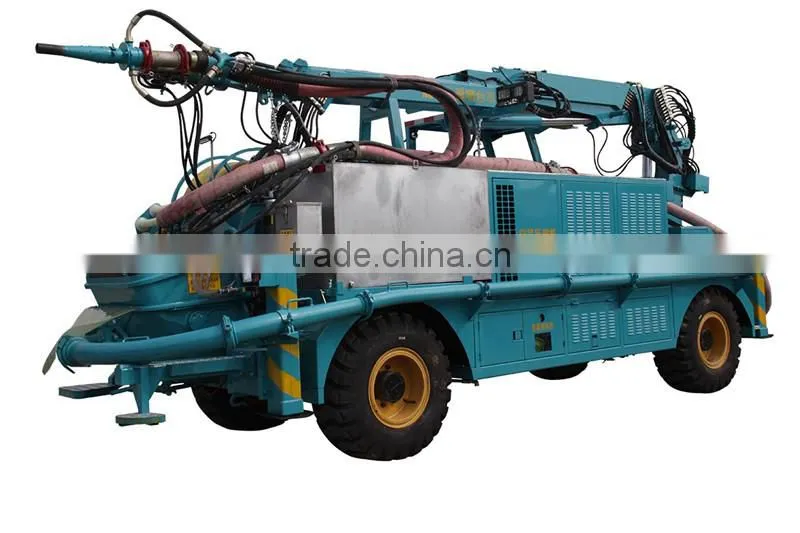

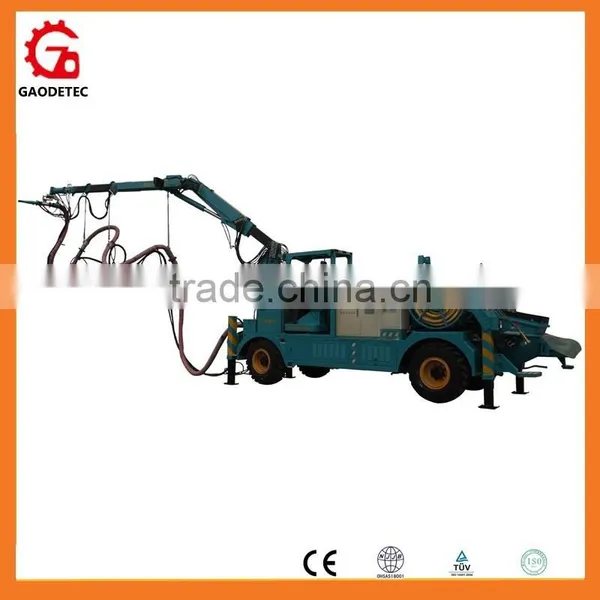

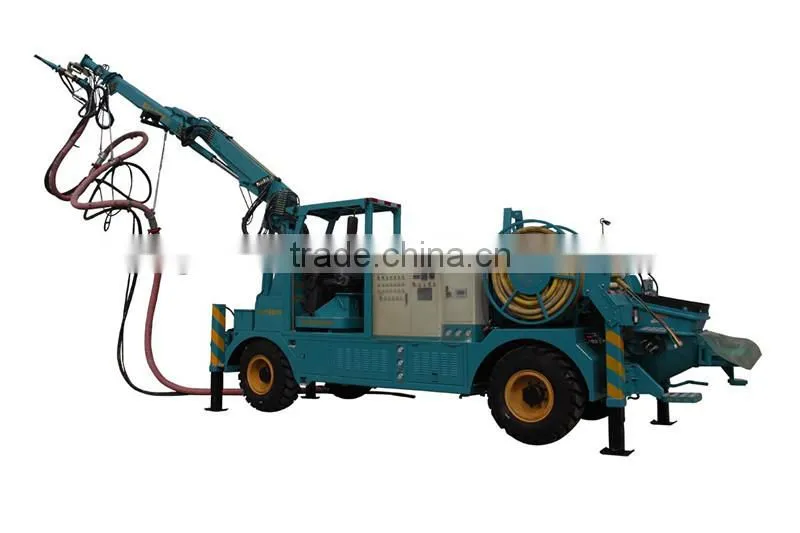

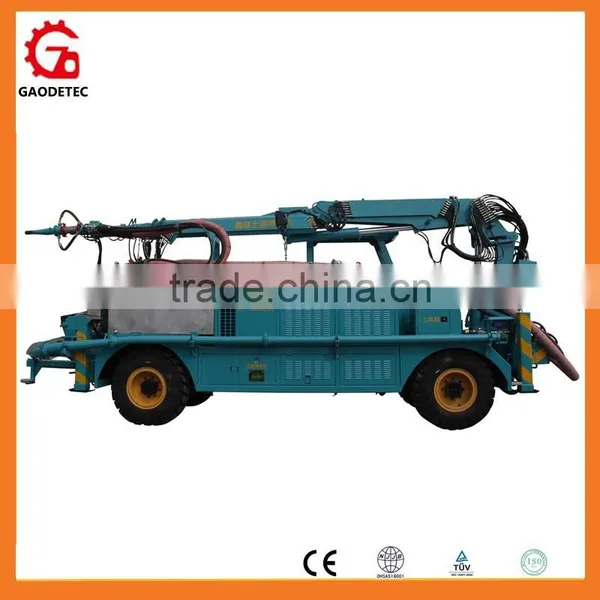

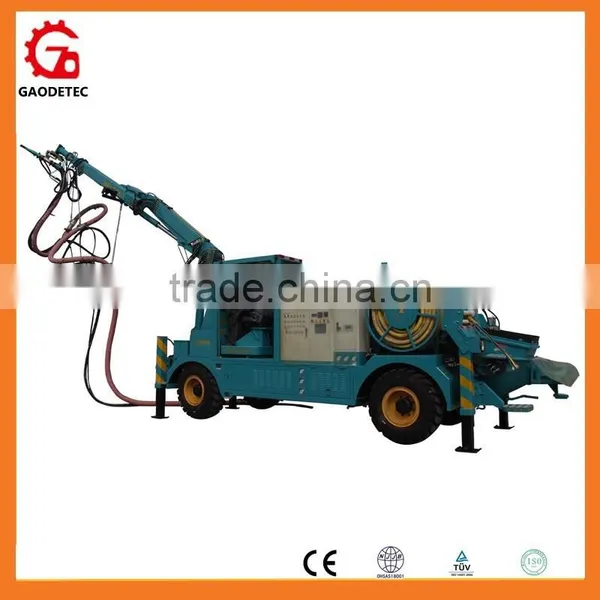

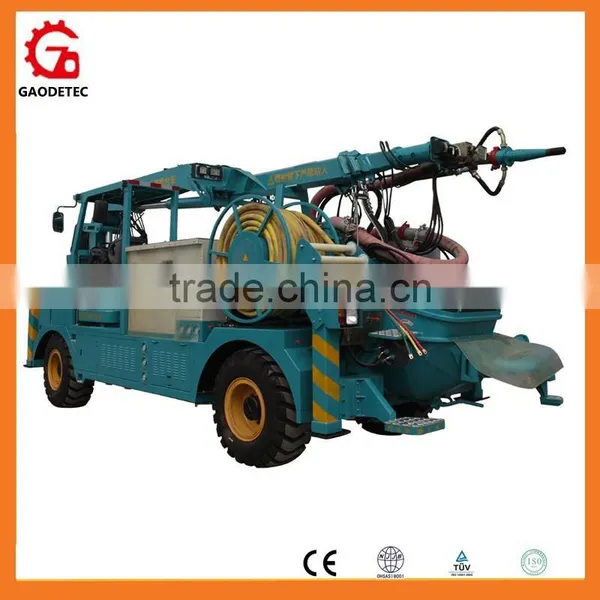

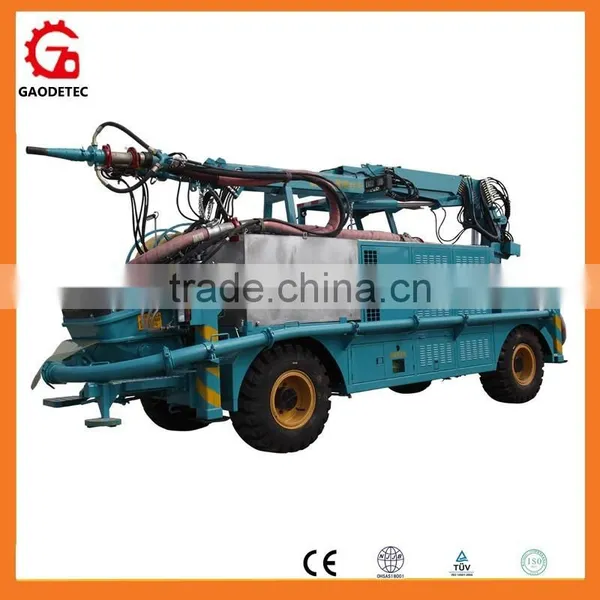

HSC-2515 tunnel construction used robotic telescopic concrete spray system with shotcrete arm
The series wet shotcrete system equipments are high-end equipment with top design and manufacture. They have multi-function and can be applied widely.
The advantages of the equipments are:
1. Hydrostaticrunning system, rigid chassis, wet mix braking system.
2. Four-wheel transmission, four-wheel steering, small turning radius, thus make a better operation.
3. Open-type cab, widely views, driver’s seat with 180 º rotation design, thus make the operation flexible and can drive two-way.
4. Reasonable loading design makes the equipment with bigger anti-overturning moment.
5. Full hydraulic telescope and rotate robot arm make the machine with high carrying capability, steady movement, flexible operation, no construction dead zone.
6. Convey cylinder with long stroke and big cylinder diameter can reduce the abrasion of resistant ring and plate and improve the stability of concrete spraying.
7. Hydraulic drive hopper vibrator, air cooler, cable reel, accelerator pump and water pump can proof electric leakage and pollution.
8. The ratio of accelerator and concrete is in fixed and can be monitored and adjusted by touch screen and remote control.
9. All operation can be controlled by wireless remote control thus reduce labor intensity and improve working efficiency.
10. Diesel engine can make the spray arms move slowly in case the concrete solidification makes the equipment crash when electric power is off.
HSC-2515 tunnel construction used robotic telescopic concrete spray system with shotcrete arm technical data
| Item | unit | HSC-2515A | HSC-2515B | HSC-2515C | |
| Unity machine parameter | L×W×H | mm | 7800×2530×3280 | 7800×2530×3280 | 7440×2530×3280 |
| Weight | kg | 14000 | 14000 | 12800 | |
| Arm and Leg parameter | Arm structure | main arm rotate + telescope, spray arm fold + telescope | main arm rotate, spray arm fold + telescope | ||
| max. spray height | m | 15 | 15 | 15 | |
| max. spray width | m | 2×13 | 2×13 | 2×13 | |
| max. spray depth | m | 8 | 8 | 8 | |
| big arm pitching angle | degree | -30°~+75° | -30°~+75° | -30°~+75° | |
| small arm pitching angle | degree | 70° | 70° | 70° | |
| nozzle rotate angle | degree | 360° | 360° | 360° | |
| nozzle swing angle | degree | 240° | 240° | 240° | |
| front leg span | mm | 3220 | 3220 | 3220 | |
| drive mode | electric motor work (diesel is used for cleaning and withdrawing arms in case of electric power off) | ||||
| electric motor rated power | kW | 52 | 52 | 52 | |
| electric motor working voltage | V/Hz | 380/50 | 380/50 | 380/50 | |
| diesel engine rated power | kW | 93 | 83 | 83 | |
| Pump parameter | rated output | m3/h | 25 | 25 | 25 |
| rated reversing time | /min | 21 | 21 | 21 | |
| system pressure | Mpa | 23 | 23 | 23 | |
| outlet pressure | Mpa | 7 | 7 | 7 | |
| convey cylinder inner diameter | mm | Φ160 | Φ160 | Φ160 | |
| convey cylinder stroke | mm | 1000 | 1000 | 1000 | |
| nozzle diameter | mm | Φ45 | Φ45 | Φ45 | |
| Chassis parameter | wheel track | mm | 1833 | 1833 | 1833 |
| wheel base | mm | 4100 | 4100 | 3740 | |
| front and rear axle drive mode | - | 4×4 | 4×4 | 4×4 | |
| fuel tank capacity | L | 190 | 190 | 190 | |
| max. running speed | Km/h | 22 | 22 | 22 | |
| max. gradeability | % | 40 | 40 | 40 | |
| min. ground clearance | mm | 450 | 450 | 450 | |
| min. turning radius | m | 5 | 5 | 5 | |
| braking distance | m | ≤10 | ≤10 | ≤10 | |
| Auxiliary system parameter | cable | m | 100 | 100 | 100 |
| air compressor power | kW | 55 | 55 | NO | |
| air compressor output | m3/min | 10.7 | 10.7 | ||
| air compressor working pressure | Mpa | 0.75 | 0.75 | ||
| additive output | L/h | 800 | 800 | 800 | |
| additive system pressure | Mpa | 1 | 1 | 1 | |
| coagulant tank capacity | L | 850 | 850 | 1000 | |
HSC-2515 tunnel construction used robotic telescopic concrete spray system with shotcrete arm application:
This equipment are suitable for bigger fracture surface, project which need big output, and tunnel construction which need high efficiency shotcrete.
