GZ5E ISO OEM supplier world wide brand electric dry shotcrete machine
GZ5E ISO OEM supplier world wide brand electric dry shotcrete machine
GZ-5 electric dry shotcrete machine is medium-sized shotcrete machine for the processing of dry mix. And it is widely used by so many contractors. GZ-5 electric dry shotcrete machine can be used for tunneling, mining operations, hydropower projects and hillside protection, etc.
GZ-5 electric dry shotcrete machine is available in following versions:
Air motor driver or diesel drive combined with skid or rail-wheel
Basic: Electric drive can be combined with tyre chassis
Extended (optional): Electric motor drive with variable speed gearbox, air motor drive or diesel drive combined with Skid or Rail-wheel.
GZ5E ISO OEM supplier world wide brand electric dry shotcrete machine features:
Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.
Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dusk leak and prolong consumption parts life.
GZ5E ISO OEM supplier world wide brand electric dry shotcrete machine technical data:
Electric motor drive:
Rated Output | 5m 3 /h |
Max. Horizontal Conveying Distance | 200m |
Suitable Mix Ratio(Cement/Sand) | ≤ 1.3~5 |
Water Cement Ratio | < 0.4 |
Max. Aggregate Size | Φ 15 mm |
Conveying Hose Inner Diameter | Φ51mm |
Operating air Pressure | 0.2-0.4MPa(29-58PSI) |
Air Consumption | 8~9m 3 /min(285-325CFM) |
Motor Power | 5.5kW(7.5hp) |
Voltage | 220V, 380V, 440V, 660V, 50Hz/60Hz |
Material Charging Height | 1.1m |
Rotor Speed | 11r/min |
Overall Dimension(L× W× H) | 1.35× 0.75× 1.2m |
Net Weight | 720kg |

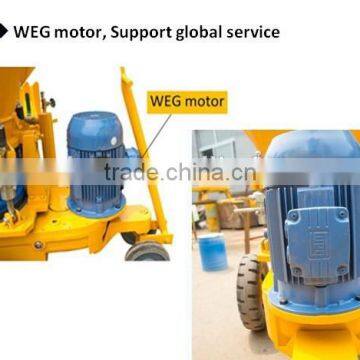

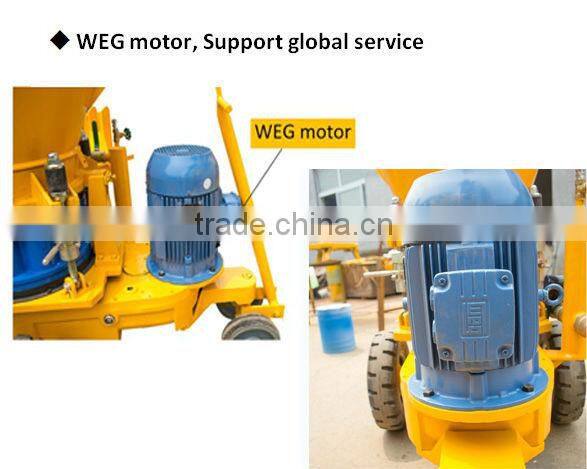

Electric motor of dry shotcrete machine(Siemens or WEG electric motor):

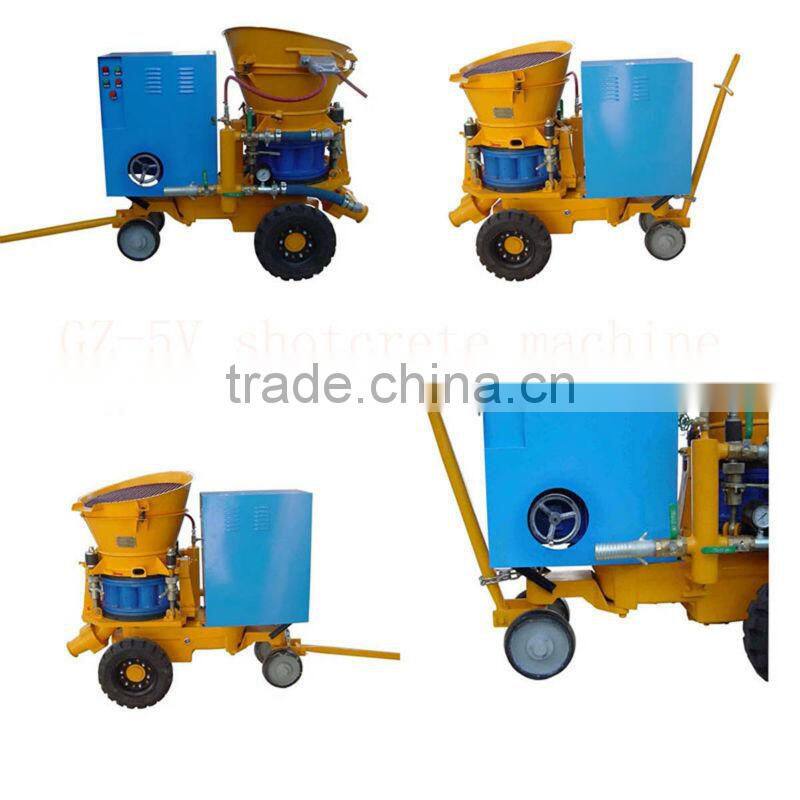

GZ-5V electric dry shotcrete machine with variable gearbox:
Expanded rack shotcrete machine according to the customers' request:
GZ5E ISO OEM supplier world wide brand electric dry shotcrete machine Package:
Shotcrete Machine Application On sites:
Workshop:
Shotcrete Machine Certificates:
