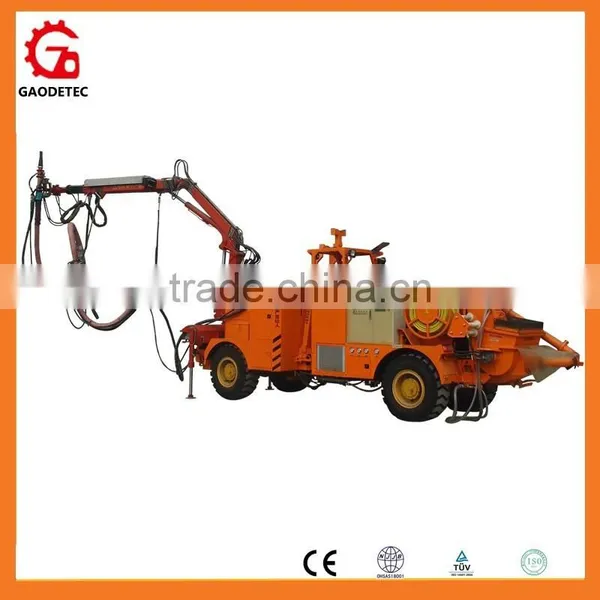

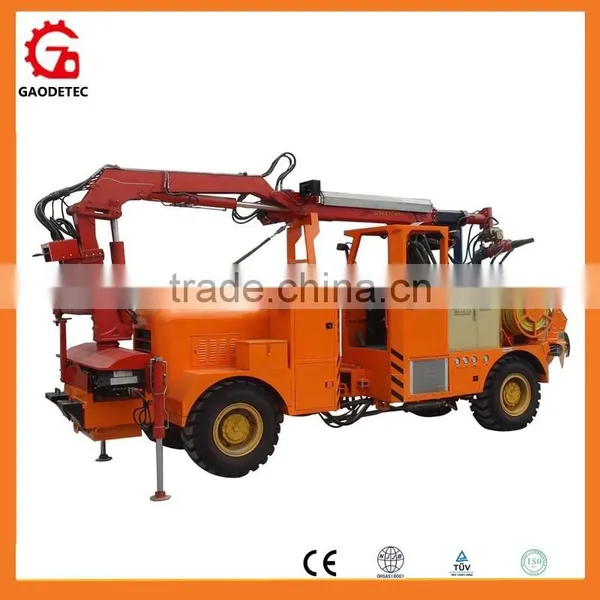

HSC-2013 tunnel construction shotcrete equipment wet mix concrete spray system with robot arm
- 100 Set / Sets per Month
- Shanghai or any port
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Condition: | New | Max. Conveying Distance: | 2*11 | Max Aggregate Size: | 25mm |
Hose Inner Diameter: | 90 mm | Air Consumption: | 6.5m3/min | Place of Origin: | Henan, China |
Brand Name: | GEC | Model Number: | HSC-2013 | Voltage: | 380v |
Power(W): | 52kw | Dimension(L*W*H): | 7440*2530*3100mm | Weight: | 12000kg |
Certification: | ISO CE | Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

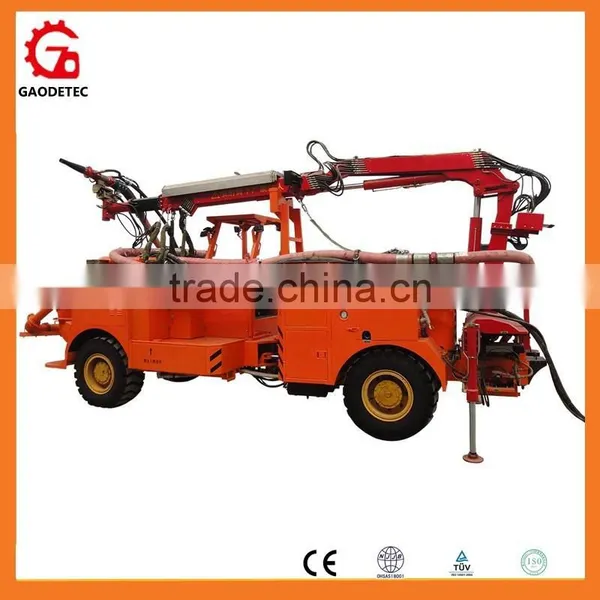

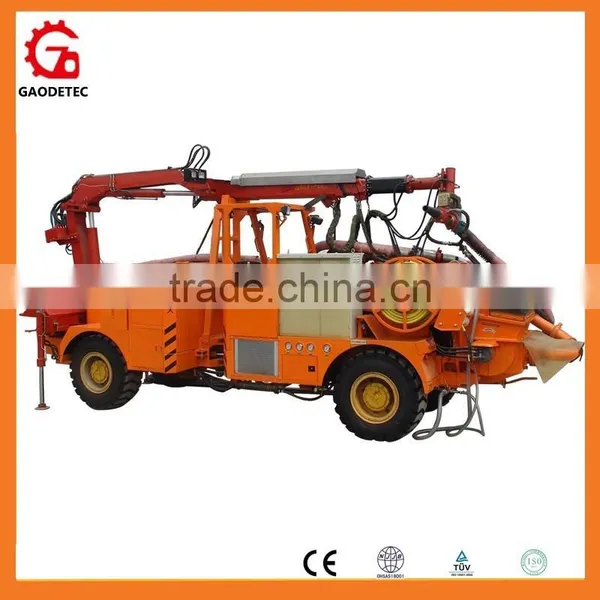

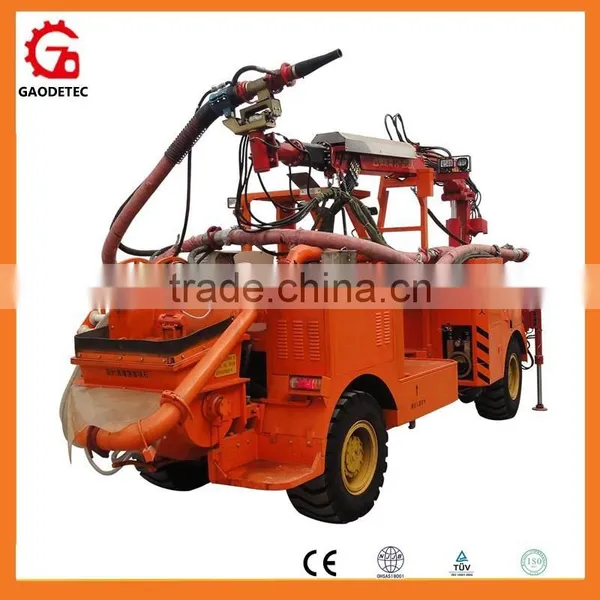

HSC-2013 tunnel construction shotcrete equipment wet mix concrete spray system with robot arm

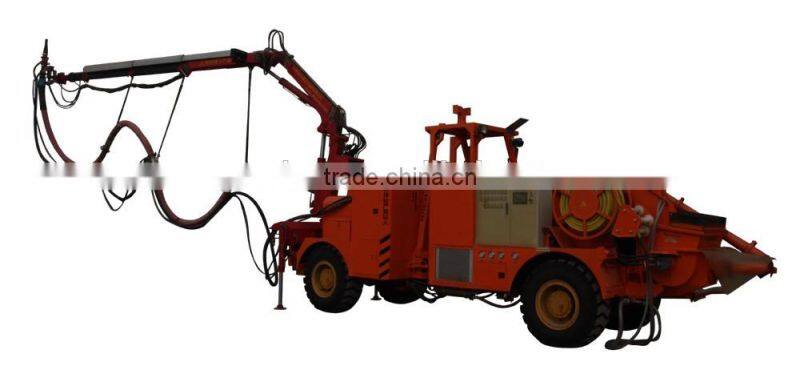

HSC-2013 tunnel construction shotcrete equipment wet mix concrete spray system with robot arm features:
1. Smaller size suitable for smaller tunnel section and smaller shotcrete amount.
2. HSC-2013 adopts arm structure of single rotate and singe telescope. HSC-2008 adopts arm structure of small size straight arm. Both two models shotcrete system can be used in small tunnel section and rotate the arm to spraying position.

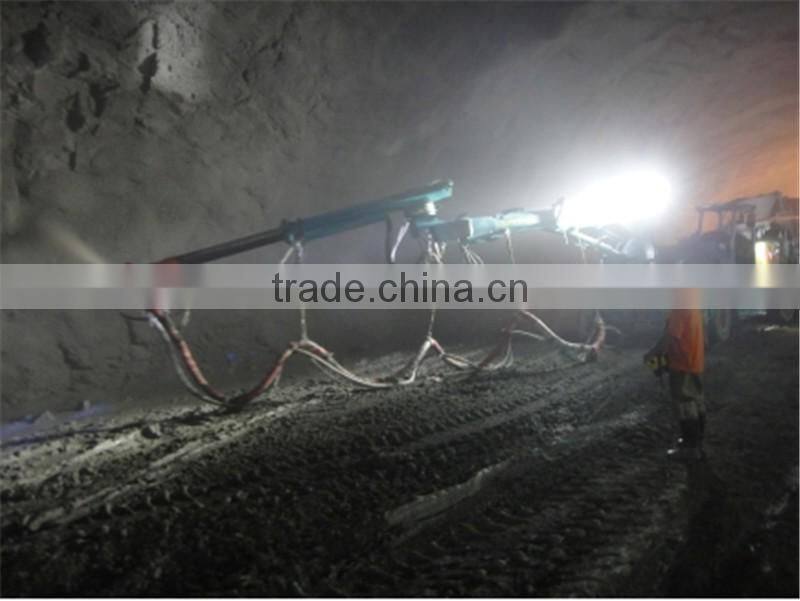

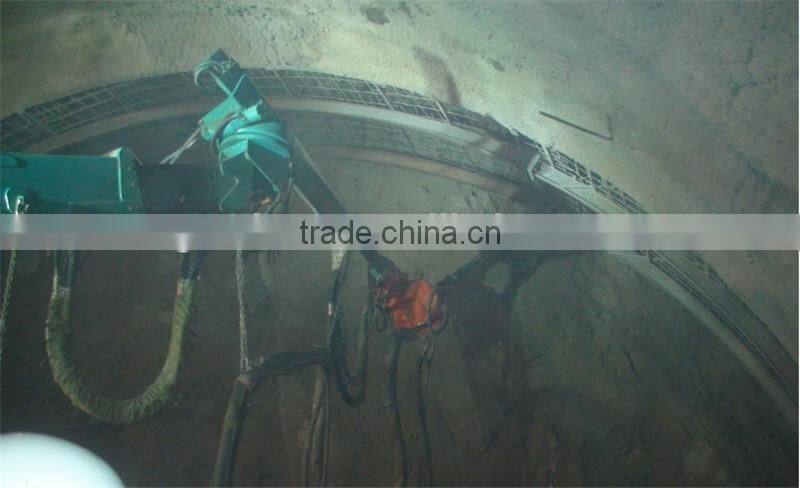

3. The joints and freedom of motion can meet the requirement of spraying concrete. It’s reliable, stable and convenient. There are flood lights on both two sides of arm for spraying.

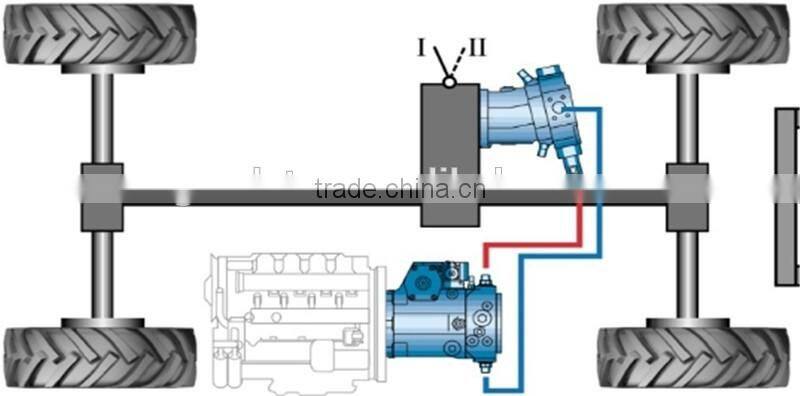

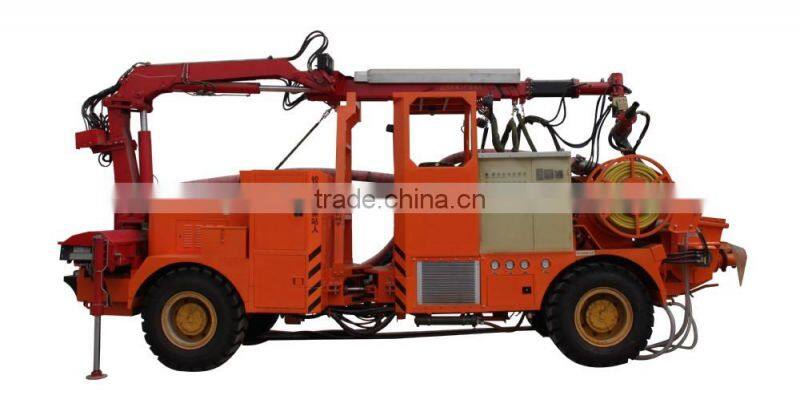

4. HSC-2013 shotcrete system equipped with hinge type chassis and diesel engine. We also adopted hydraulictorqueconverter and gearbox transmission, four-wheel drive, hinge hydraulic rotation, four-wheel hydraulic service brake, transmission shaft mechanical parking brake.
5. Transversalarrangement cab which makes it’s easy to operate without turning around. There are forward and reverse gears, high speed and low speed gears.
6. There are hydraulic support arm at the both sides of spray arm base, which ensure the stability of arm stretch
7. There is diesel engine which ensures the arms can be folded and cleaned when electric power is off.
8. Reliable hydraulic pump and hydraulic valves adopted to ensure the whole pump reliable.
HSC-2013 tunnel construction shotcrete equipment wet mix concrete spray system with robot arm technical data:
Item | unit | HSC-2013K | HSC-2013 | HSC-2008 | |
Unity machine parameter | L×W×H | mm | 7440×2530×3100 | 7440×2530×3100 | 6000×2530×2800 |
Weight | kg | 12000 | 11500 | 4100 | |
Arm and Leg parameter | Arm structure | main arm rotate, spray arm fold + telescope | upright rotate, straight arm pitch up down + telescope | ||
max. spary height | m | 13 | 13 | 8 | |
max. spray width | m | 2×11 | 2×11 | 2×6 | |
max. spray depth | m | 6 | 6 | 3 | |
big arm pitching angle | degree | -30º~+75º | -30º~+75º | -10º~+70º | |
small arm pitching angle | degree | 70º | 70º | ___ | |
nozzle rotate angle | degree | 360º | 360º | 360º | |
nozzle swing angle | degree | 240º | 240º | 240º | |
front leg span | mm | 3510 | 3510 | 3000 | |
drive mode | electric motor work (diesel is used for blowdown, cleaning and withdrawing arms in case of electric power off) | ||||
electric motor rated power | kW | 52 | 52 | 41 | |
electric motor working voltage | V/Hz | 380/50 | 380/50 | 380/50 | |
diesel engine rated power | kW | 83 | 83 | 26 | |
Pump parameter | rated output | m3/h | 20 | 20 | 20 |
rated reversing time | /min | 17 | 17 | 21 | |
system pressure | Mpa | 23 | 23 | 23 | |
outlet pressure | Mpa | 7 | 7 | 6 | |
convey cylinder inner diameter | mm | Φ160 | Φ160 | Φ160 | |
convey cylinder stroke | mm | 1000 | 1000 | 1000 | |
nozzle diameter | mm | Φ40 | Φ40 | Φ40 | |
Chassis parameter | wheel track | mm | 1660 | 1660 | 1500 |
wheel base | mm | 4585 | 4585 | 2600 | |
front and rear axle drive mode | - | 4×4 | 4×4 | 4×2 | |
fuel tank capacity | L | 70 | 70 | 50 | |
max. running speed | Km/h | 22 | 22 | 25 | |
max. gradeability | % | 40 | 40 | 30 | |
min. ground clearance | mm | 300 | 300 | 130 | |
min. turning radius | m | 9.8 | 9.8 | 4.3 | |
braking distance | m | ≤10 | ≤10 | ≤10 | |
Auxiliary system parameter | cable | m | 100 | 100 | 100 |
air compressor power | kW | 37 | NO | NO | |
air compressor output | m3/min | 6.5 | NO | NO | |
air compressor working pressure | Mpa | 0.8 | NO | NO | |
additive output | L/h | 800 | 800 | 600 | |
additive system pressure | Mpa | 1 | 1 | 1 | |
coagulant tank capacity | L | ___ | ___ | ___ |

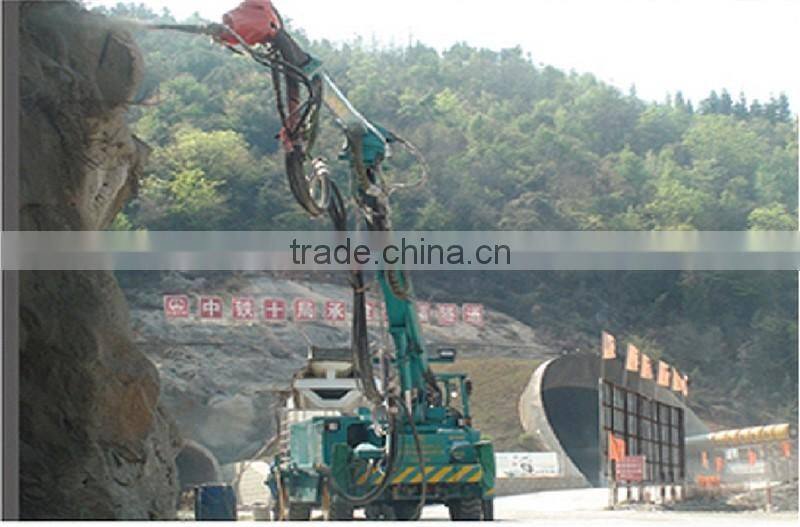

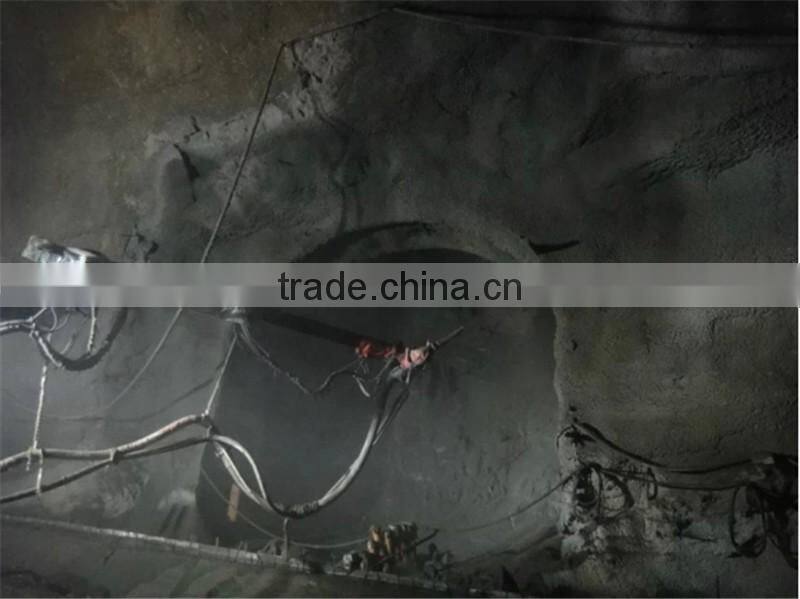

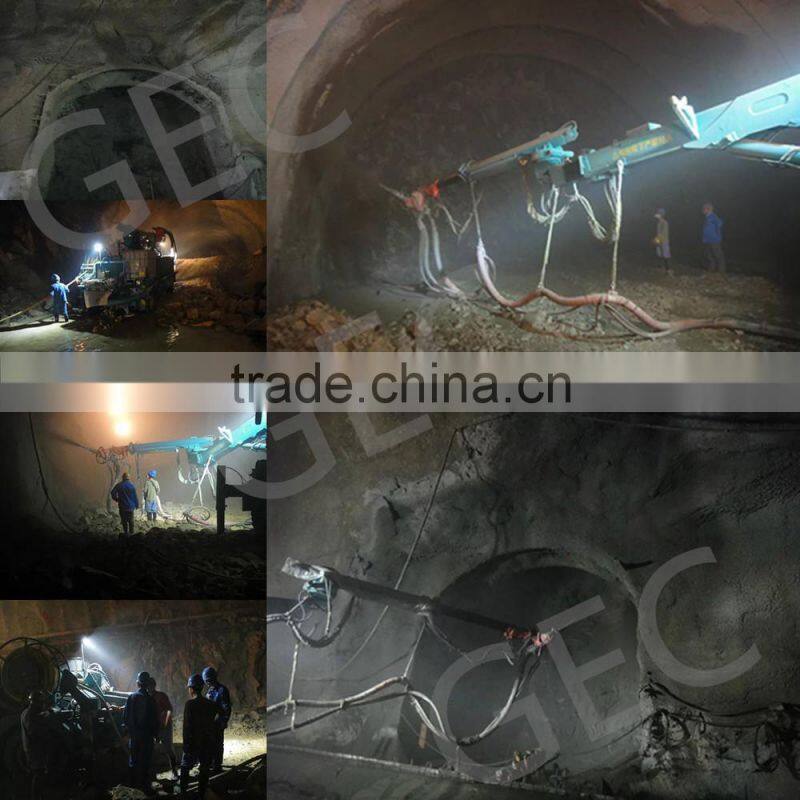

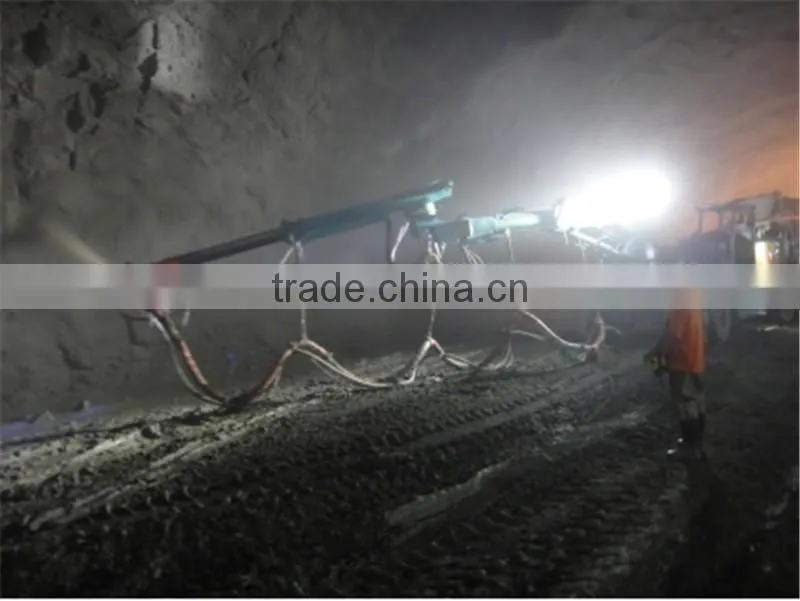

HSC-2013 tunnel construction shotcrete equipment wet mix concrete spray system with robot arm application:
This equipment are suitable for smaller fracture surface, project which need smaller output.
