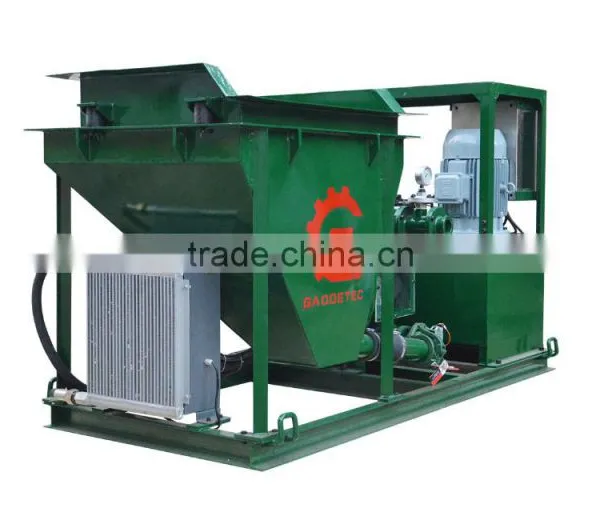

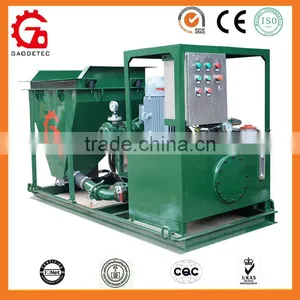

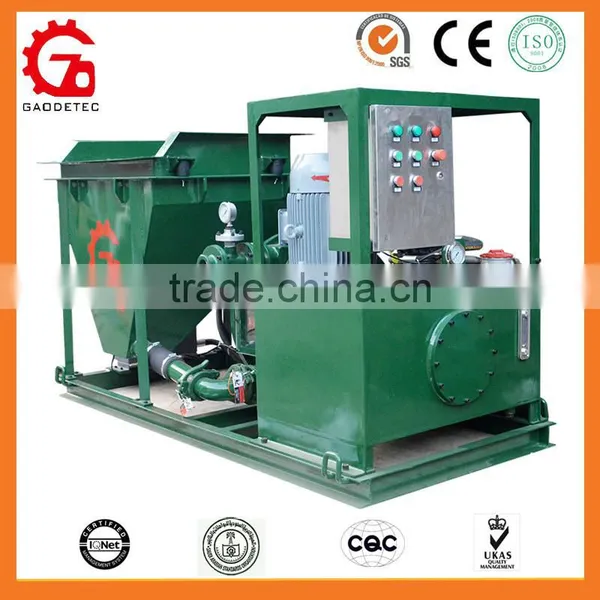

GDS1500 Light-weight Wet-mix Small Shotcrete Machine
The GDS1500 is a lightweight shotcrete pump run by a highly-reliable direct drive planetary gearbox and hydraulic power pack. This sturdy workhorse is made better with the added improvement of a direct drive to the carousel.

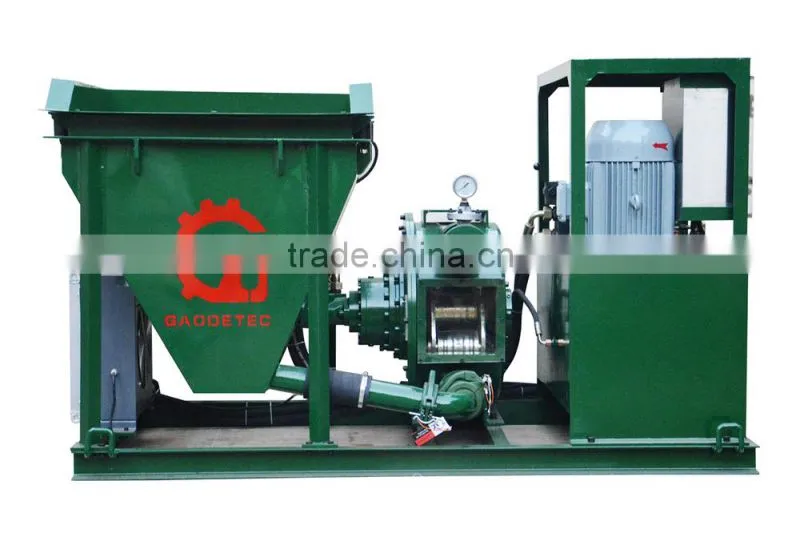

Electric Motor Driven

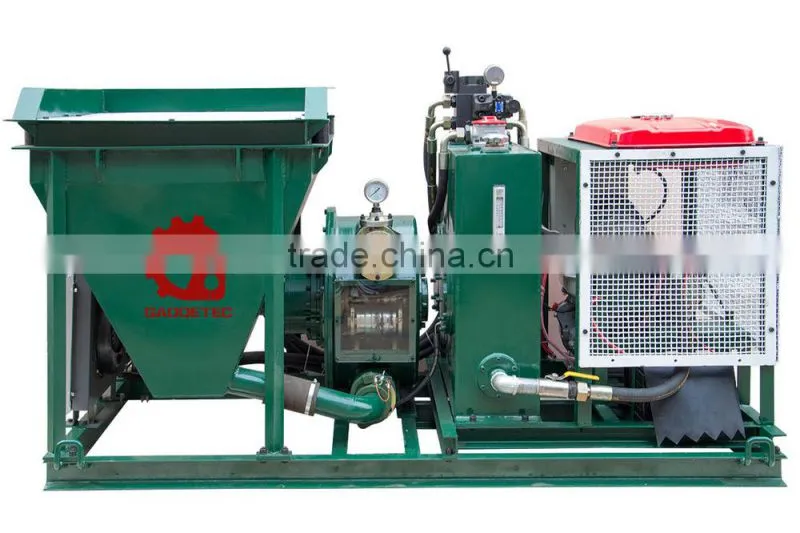

Gasoline Engine Driven

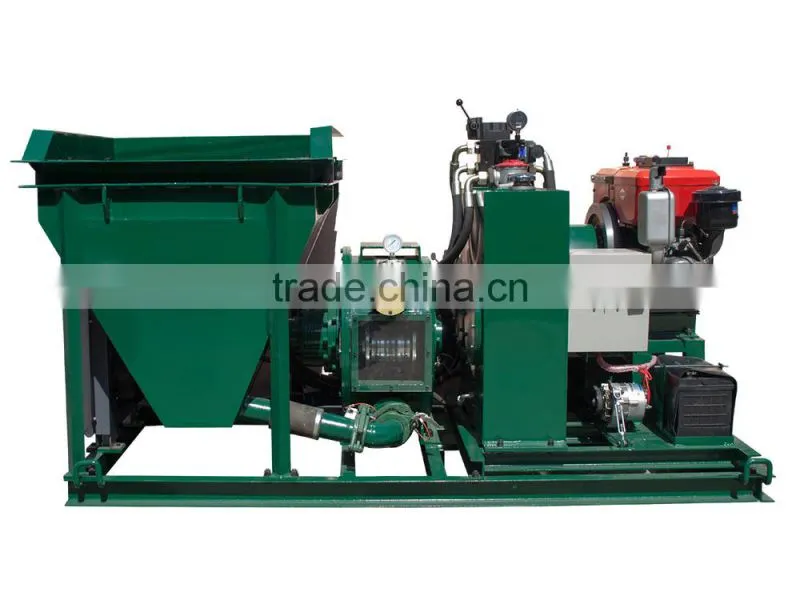

Diesel Engine Driven
Features ( Concrete Shotcrete Machine )
· highly-reliable direct drive planetary gearbox
· infinite speed variation
· Easily operating on site work
· Standard spare part supply
Datasheet ( Small Shotcrete Machine )
Item |
Description |
Working Pressure |
1.5 Mpa (Chinese Hose)/ 3.5 Mpa (Trelleborg Hose) |
Output |
1.5-3m3/h |
Max. Aggregate |
8mm |
The Squeeze Hose |
ID 50mm |
Conveying Hose |
ID 38mm |
Squeeze Pump |
LH50-455 |
Overall Dimension |
1900x850x1250mm |
Hopper Volume: |
200 Liter |
Requested Air Compressor |
3m3/min, 0.5Mpa Pressure |
Vertical Conveying Distance |
15 m (Chinese Hose)/30 m (Trelleborg Hose) |
Horizontal Conveying Distance |
40 m (Chinese Hose)/80 m (Trelleborg Hose) |

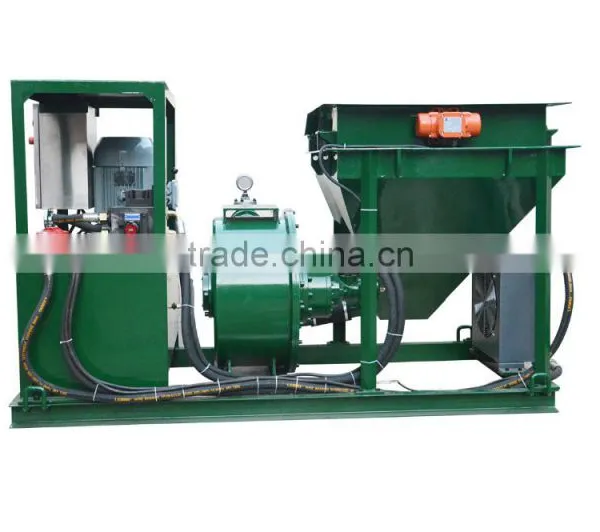

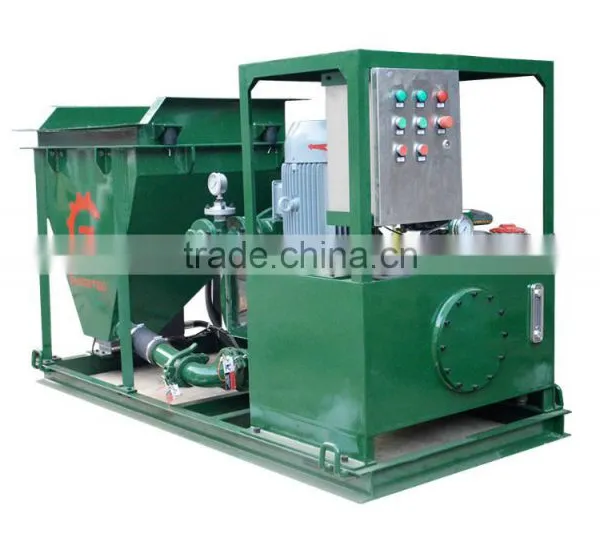

Details of GDS 1500 Small Shotcrete Machine

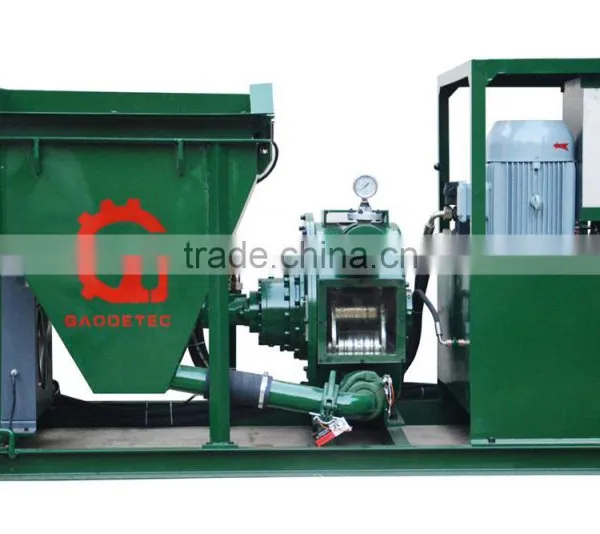

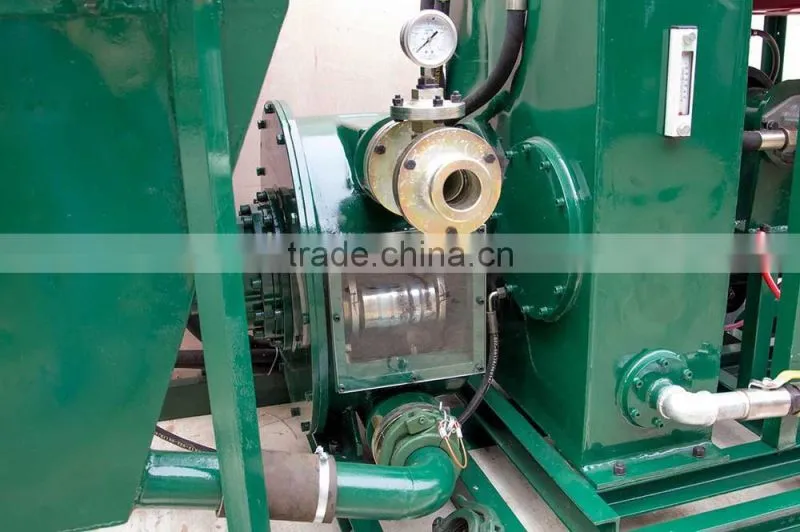

Three-roller Squeeze Pump
Yuken Hydraulic Valve

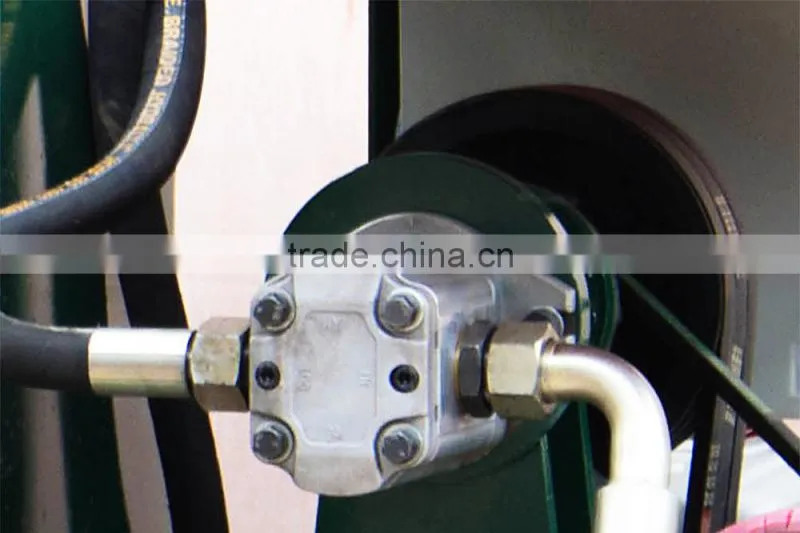

High Pressure Gear Pump
Oil Vibrator
Shock Resistant Pressure Gauge

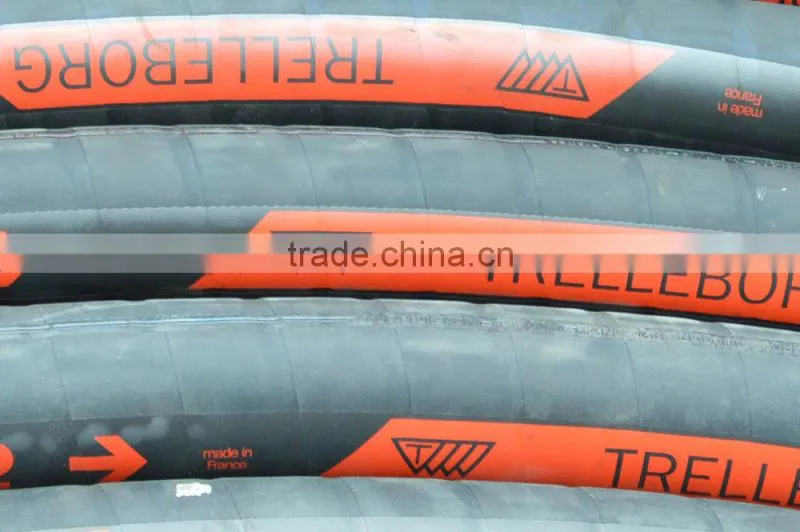

Trelleborg Squeeze Hose
Accessories
Trade assurance advantages:
1. Quickly lock trusted seller, saving time and energy;
2. Reduce the risk of online purchasing;
3. If there is a trade disputes, you can complain to Alibaba and get benefits compensation.
We are a member of trade assurance on Alibaba, and our trade assurance amount is USD78000.00 Through trade assurance you can 100% payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.
Export Packing ( Small Shotcrete Machine )
Packing List
No. |
Description |
Qty. |
Unit |
Remarks |
1 |
GDS1500 main machine |
1 |
set |
|
2 |
Conveying hose, ID38, L10m |
1 |
pcs |
|
3 |
Conveying hose, ID50, L10m |
1 |
pcs |
|
3 |
Reducer 2’’/1.5’’ |
1 |
pcs |
|
5 |
1.5’’shotcrete nozzle assy. |
1 |
set |
|
6 |
1.5’’nozzle tip |
1 |
pcs |
|
7 |
Clamp |
2 |
sets |
One set (one 1.5’’, one 2’’) |
8 |
Clean ball |
2 |
sets |
One set (one 1.5’’, one 2’’) |
9 |
Accessories |
1 |
Set |
