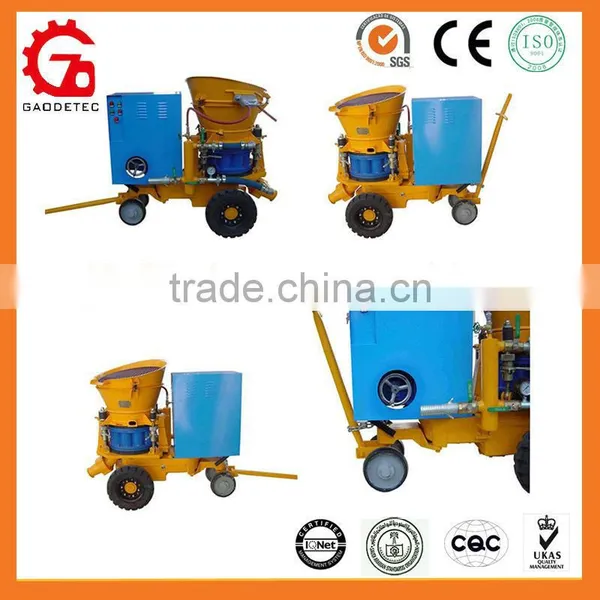

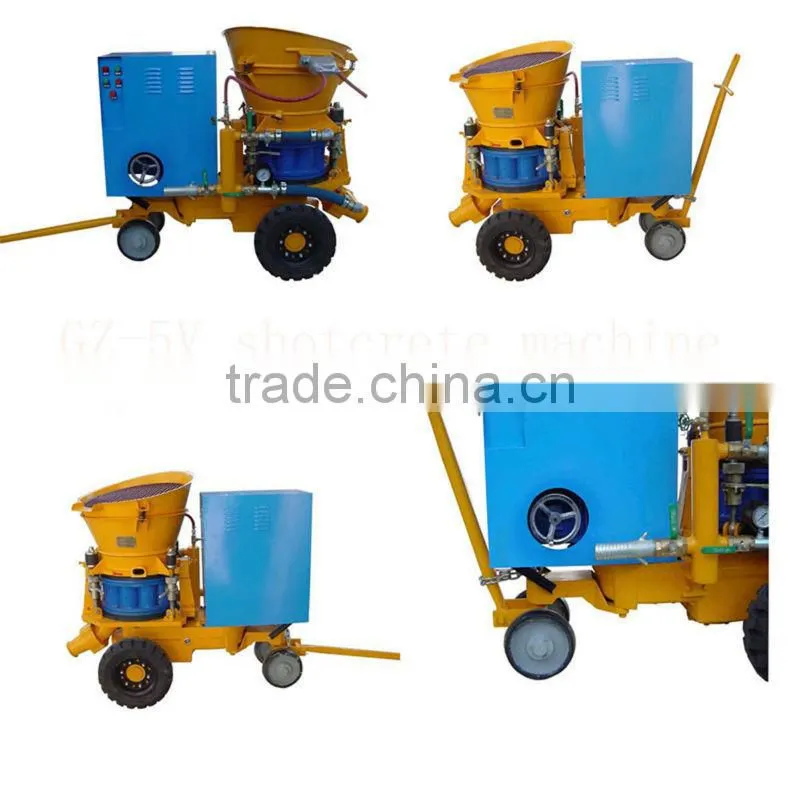

Mechanical GZ5V variable output dry mix gunning concrete machine
Mechanical GZ5V variable output dry mix gunning concrete machine description:
GZ-5V Shotcrete machine is mainly used for dry-mix shotcrete and damp-mix shotcrete. It has some obvious advantages such as advanced technology, Perfect structure, stable performance, convenient operation and longevity of service etc. It is widely employed in mining, tunnel, culvert, subway, hydropower engineering, underground excavation engineering etc.
Mechanical GZ5V variable output dry mix gunning concrete machine data:
Output Capacity | 1-5m ³/h |
Max. horizontal conveying distance | 200m |
Suitable mix ratio (cement/sand) | ≤1:4-5 |
Max. aggregate size | 15mm |
conveying hose inner diameter | 51mm |
Conveying pressure | 0.2-0.4MPa |
Air consumption | 7-8m ³/min |
Material charging height | 1.1m |
Rotor speed | 2.2-11r/min |
Electric motor type | Y132M-4 |
power | 7.5kW/10hp |
Overall dimension (length×width×height) | 1.42×0.75×1.2m |
Net weight | 750kg |
Spare parts:
GZ-5 Series Expanded Gunning Concrete Machine according to the customers' request:
GZ-5 shotcrete machine
wet shotcrete machine

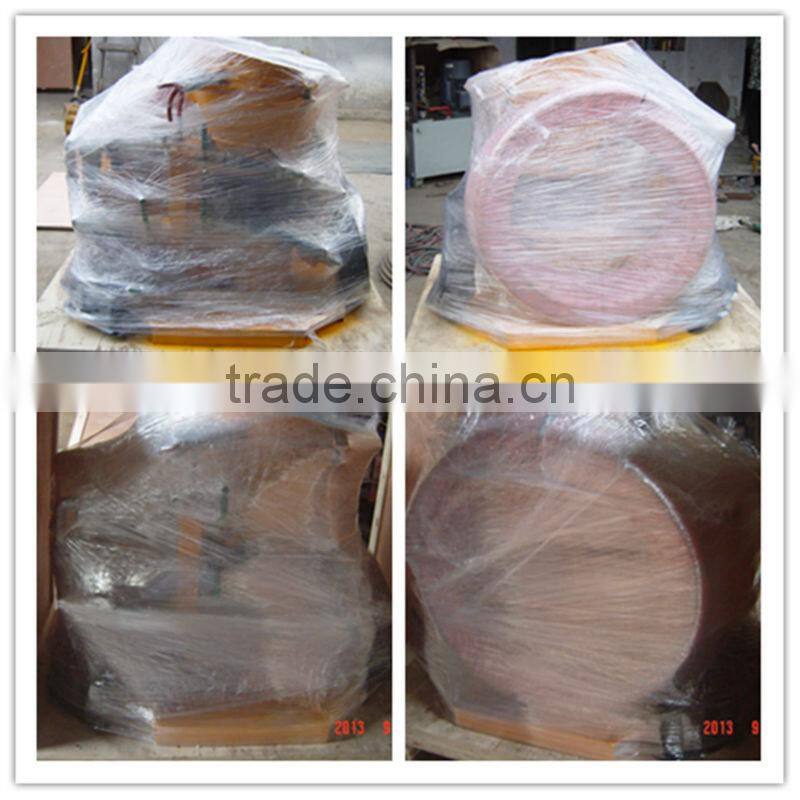

Gunning Concrete Machine Package:
Gunning Concrete Machine Application On Sites:
Work place:
Customers:
Gunning Concrete Machine Certificates:
CE AND ISO9001
