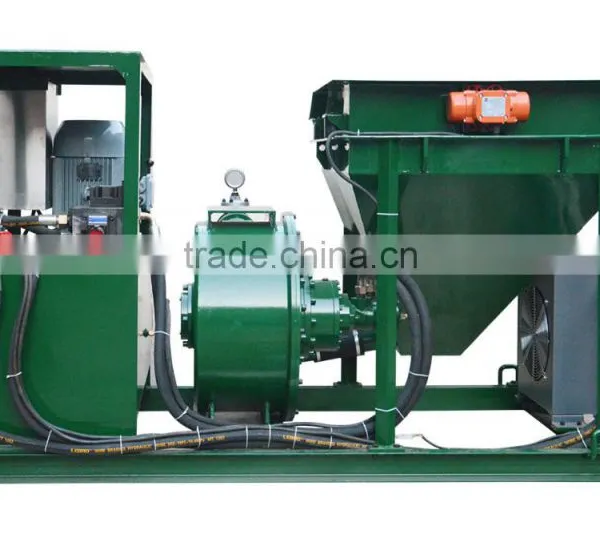

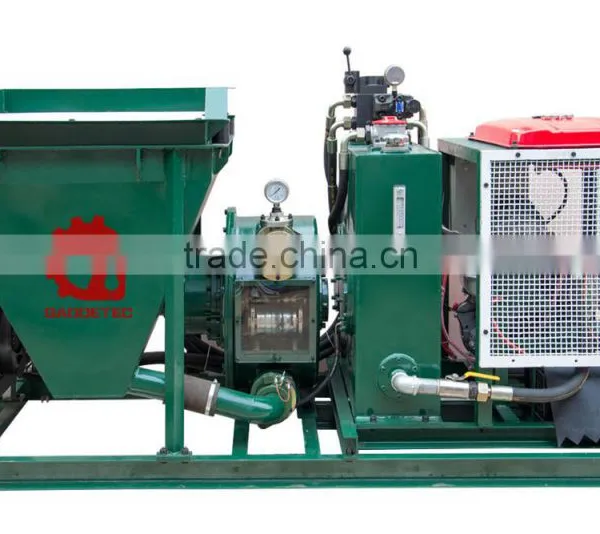

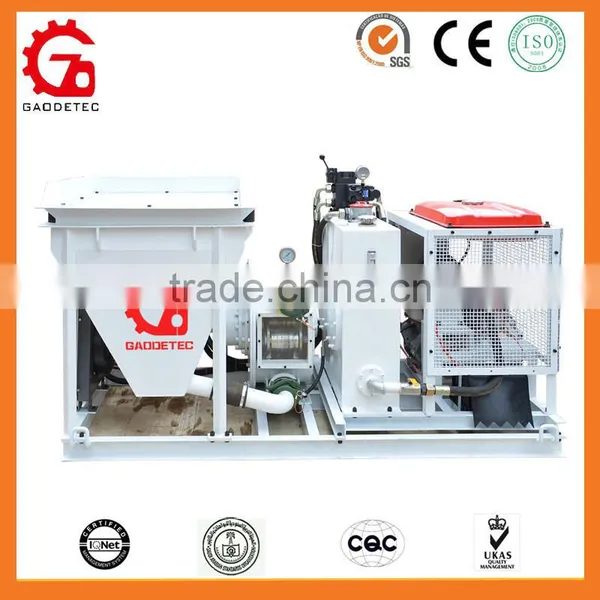

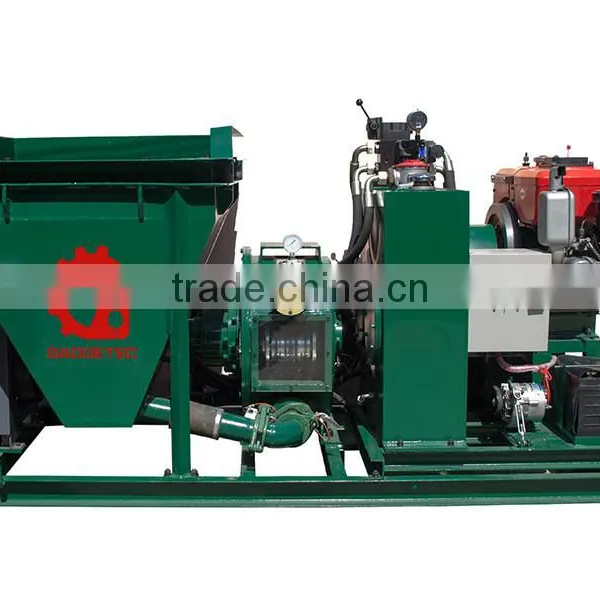

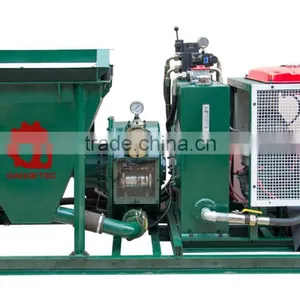

GDS1500 Hydraulic Powered Shotcrete Wet Concrete Spray Machines

FOB Price

USD $6,900 - $8,000 / Set

1 Set(Min.Order)

Supply Ability 20 Set / Sets per Month
Port Shanghai Qingdao Tianjin
Payment Terms:T/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Max. Conveying Distance:	80 m	Max Aggregate Size:	10 mm
Hose Inner Diameter:	38 mm	Air Consumption:	3 m3/min, 0.5 MPa	Place of Origin:	Henan, China
Brand Name:	GEC	Model Number:	GDS 1500 Wet Concrete Spray Machines	Voltage:	230V/380V/415V/440V/600V
Power(W):	9.55 kW	Dimension(LWH):	19008501250 mm	Weight:	650 kg
Certification:	ISO, CE	Warranty:	1 year	After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

GDS 1500 Wet Concrete Spray Machines

The GDS1500 is a lightweight shotcrete pump run by a highly-reliable direct drive planetary gearbox and hydraulic power pack. This sturdy workhorse is made better with the added improvement of a direct drive to the carousel.

Electric Motor Driven

Gasoline Engine Driven

Diesel Engine Driven

Product Description

Features ( Wet Concrete Spray Machines )

· highly-reliable direct drive planetary gearbox

· infinite speed variation

· Easily operating on site work

· Standard spare part supply

Technical Data

Datasheet ( Wet Concrete Spray Machines )

Item	Description
Working Pressure	1.5 Mpa (Chinese Hose)/ 3.5 Mpa (Trelleborg Hose)
Output	1.5-3m3/h
Max. Aggregate	8mm
The Squeeze Hose	ID 50mm
Conveying Hose	ID 38mm
Squeeze Pump	LH50-455
Overall Dimension	1900x850x1250mm
Hopper Volume:	200 Liter
Requested Air Compressor	3m3/min, 0.5Mpa Pressure
Vertical Conveying Distance	15 m (Chinese Hose)/30 m (Trelleborg Hose)
Horizontal Conveying Distance	40 m (Chinese Hose)/80 m (Trelleborg Hose)

Details of GDS 1500 Wet Concrete Spray Machines

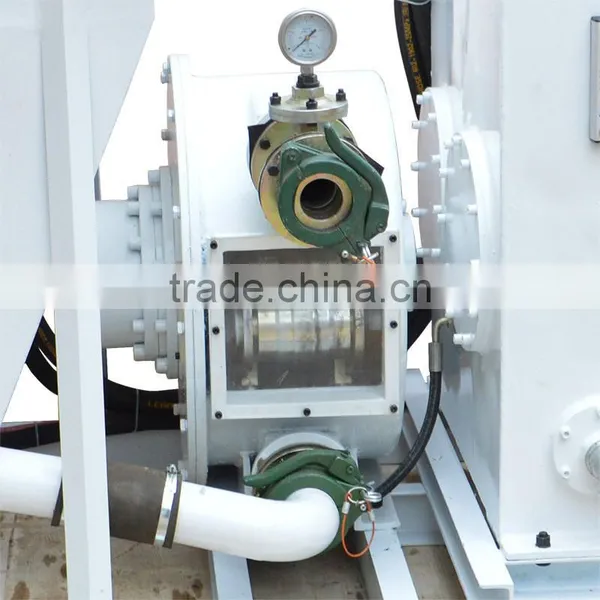

Three-roller Squeeze Pump

Yuken Hydraulic Valve

High Pressure Gear Pump

Oil Vibrator

Shock Resistant Pressure Gauge

Trelleborg Squeeze Hose

Accessories

Trade assurance advantages:
1. Quickly lock trusted seller, saving time and energy;
2. Reduce the risk of online purchasing;
3. If there is a trade disputes, you can complain to Alibaba and get benefits compensation.

We are a member of trade assurance on Alibaba, and our trade assurance amount is USD78000.00 Through trade assurance you can 100% payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.

Packaging & Shipping

Export Packing ( Wet Concrete Spray Machines )

Packing List

No.	Description	Qty.	Unit	Remarks
1	GDS1500 main machine	1	set
2	Conveying hose, ID38, L10m	1	pcs
3	Conveying hose, ID50, L10m	1	pcs
3	Reducer 2’’/1.5’’	1	pcs
5	1.5’’shotcrete nozzle assy.	1	set
6	1.5’’nozzle tip	1	pcs
7	Clamp	2	sets	One set (one 1.5’’, one 2’’)
8	Clean ball	2	sets	One set (one 1.5’’, one 2’’)
9	Accessories	1	Set

Contact Us

Zhengzhou Gaode Equipment Co., Ltd.: Contact nameJessica Liu; Phone86-371-55951210; AddressNo.9, Building 14, Yard No.4, Fengqing Road, Jinshui District, Zhengzhou, Henan China Zhengzhou,Henan
