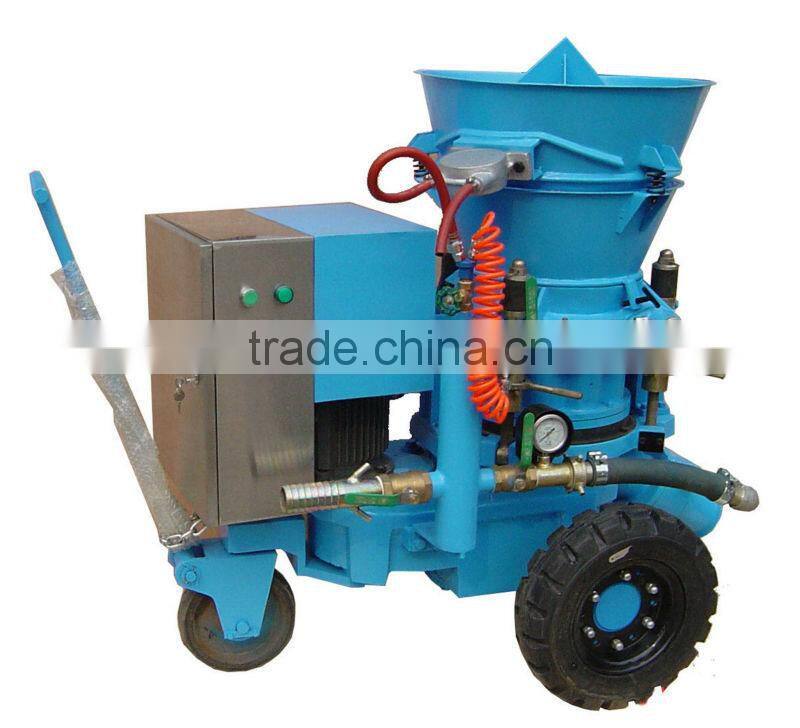

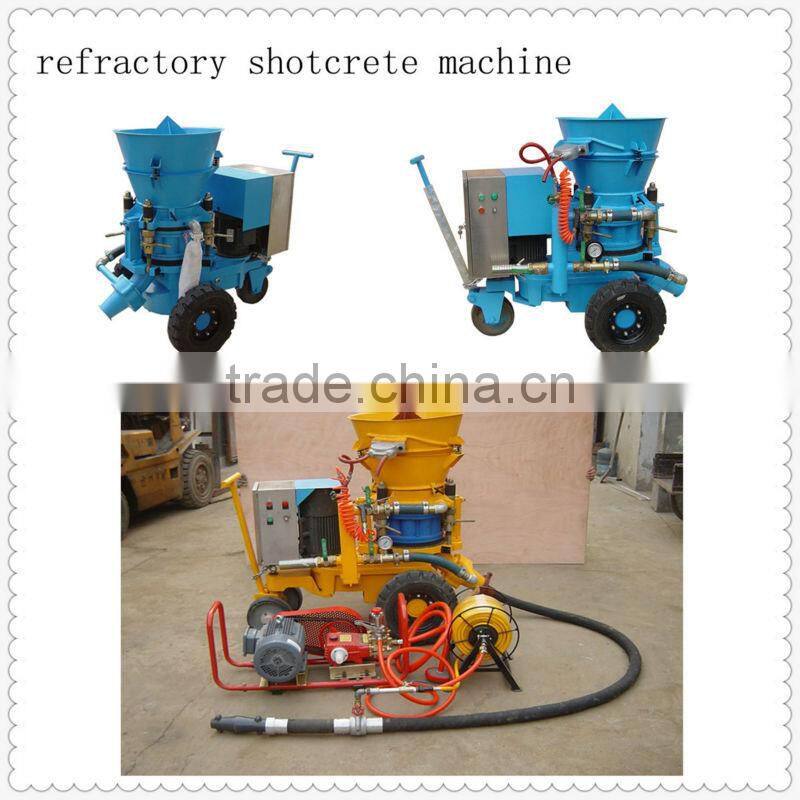

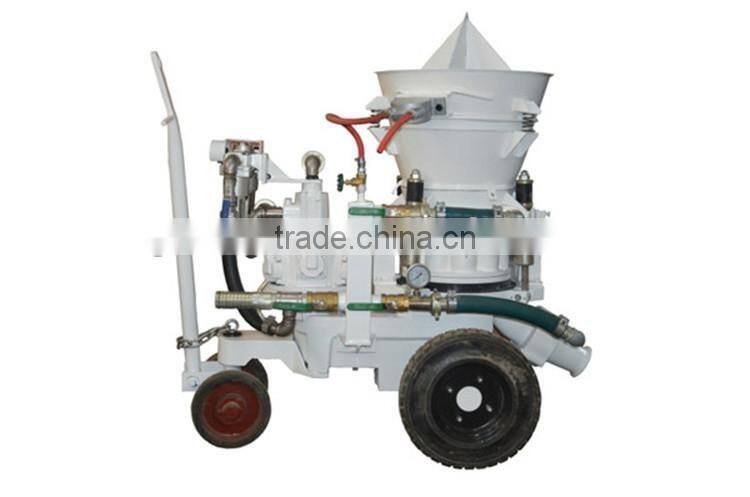

GZ-3AR manufacturer customized refractory spraying concrete machine
GZ-3AR manufacturer customized refractory spraying concrete machine description:
GZ-3AR manufacturer customized refractory spraying concrete machine is specifically designed for refractory dry-mix shotcrete gunning applications with air motor drive. With this GZ-3AR, you can get low dust, low bound and high performance spraying flow in nozzle.

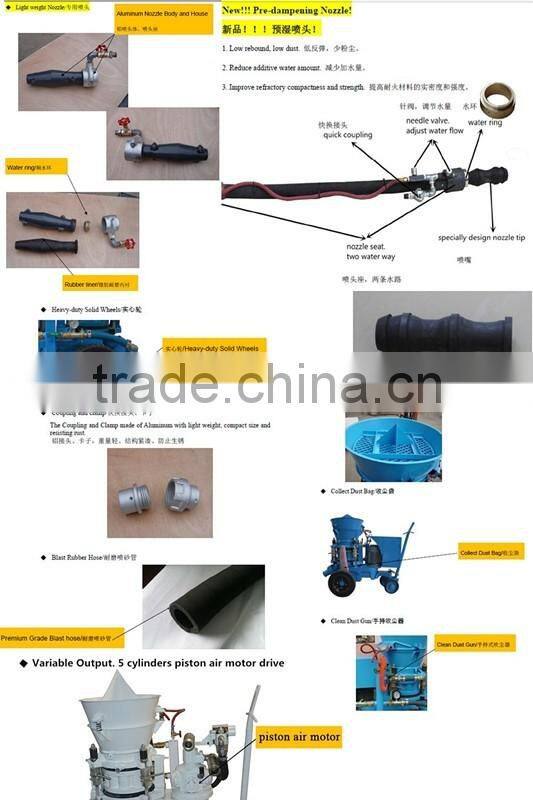

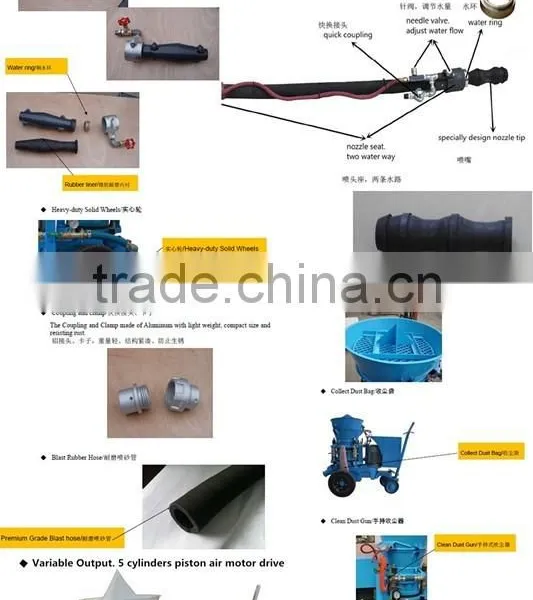

GZ-3AR manufacturer customized refractory spraying concrete machine features:
1. Variable Output. 5 cylinders piston air motor drive
2. Bag cutter and flat hopper with vibrator
3. Collect dust bag
4. Clean dust gun
5. Heavy-duty solid wheels
6. Coupling and clamp
7. Light weight nozzle
8. Blast rubber hose
GZ-3AR manufacturer customized refractory spraying concrete machine Technical sheet:
Rated Output |
1-3m3 /h (2-6 ton/h) |
Max. Horizontal Conveying Distance |
200m |
Max. Aggregate Size |
Φ10 mm |
Conveying Hose Inner Diameter |
38mm |
Operating air Pressure |
0.2-0.4MPa(29-58PSI) |
Air Consumption |
10-11m3/min |
Engine |
4kw |
Material Charging Height |
1.1m |
Rotor Speed |
13.2r/min |
Overall Dimension(L×W×H) |
1.13×0.54×1.1m |
Weight |
430kg |

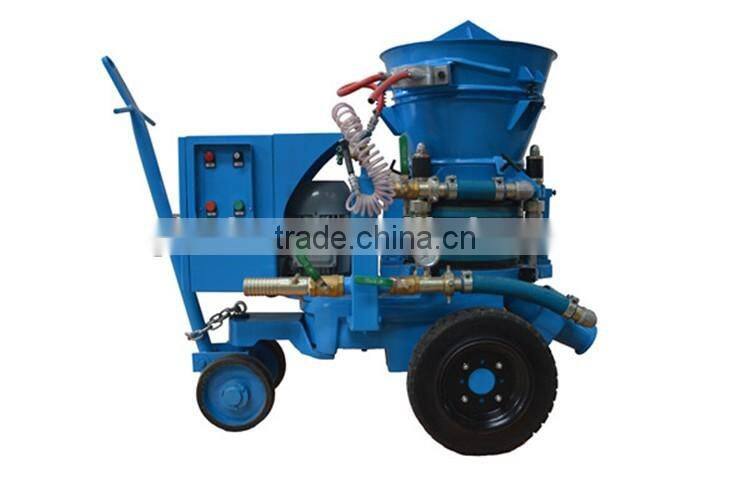

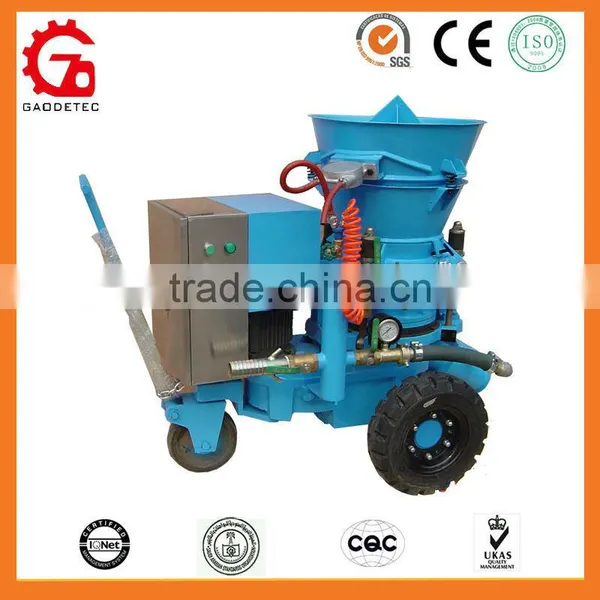

GZ-3ER electric motor driven refractory spraying concrete machine technical sheet:
Rated Output |
1-3m3 /h |
Max. Horizontal Conveying Distance |
200m |
Max. Aggregate Size |
Dia.10 mm |
Conveying Hose Inner Diameter |
38mm |
Operating air Pressure |
0.2-0.4MPa(29-58PSI) |
Air Consumption |
5~6m3/min(180-215CFM) |
Motor Power |
4kW |
Voltage |
3 phase,380V,50Hz |
Material Charging Height |
1.1m |
Rotor Speed |
13.2r/min |
Overall Dimension(L×W×H) |
1.13×0.54×1.1m |
Weight |
430kg |

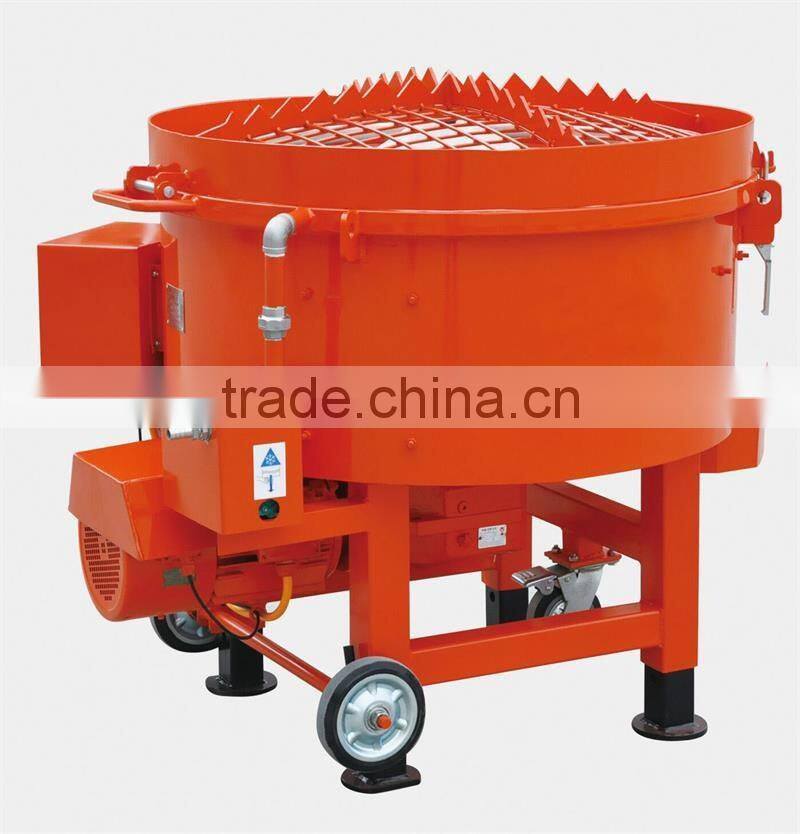

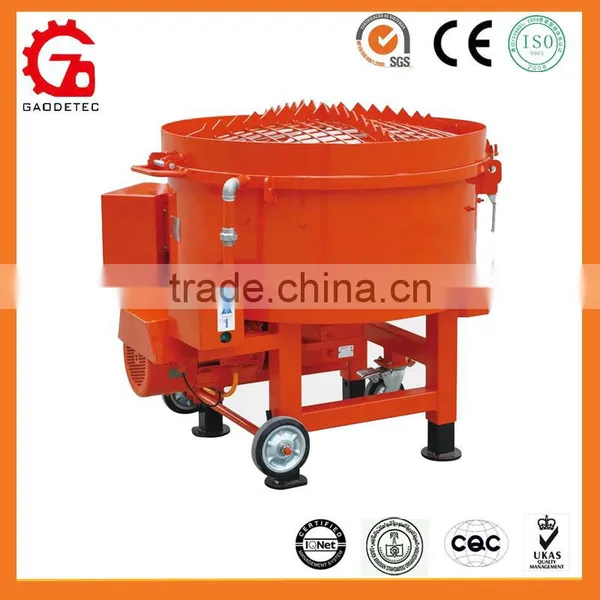

GRM Refractory Mixer

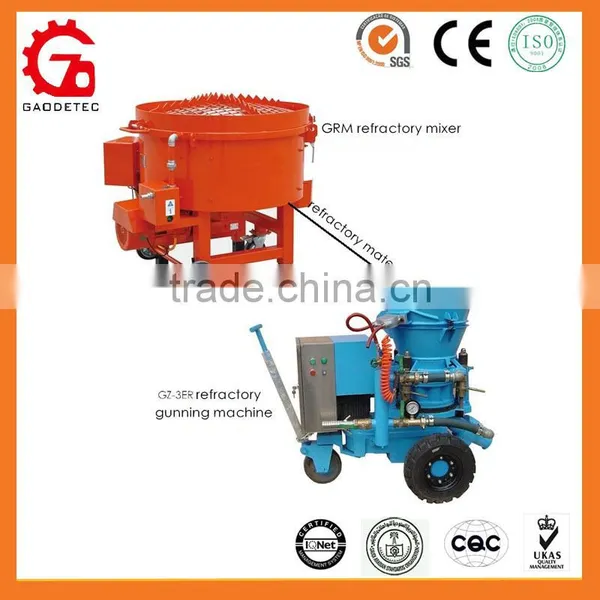

GRM refractory mixer is with supporting the use of GZ-3ER refractory gunning machine, which is used for mixing refractory materials. It can effectively reduce dust, save raw materials, which is beneficial to the health of the operator.
Related technical parameters
Item |
GRM100 |
GRM250 |
GRM500 |
Mixing capacity |
100kg |
250kg |
500kg |
Rotating speed |
35rpm |
36rpm |
39rpm |
Motor Power |
4kw |
5.5kw |
7.5kw |
Feeding Height |
1090mm |
1120mm |
1200mm |
Dimensions (mm) |
810x810x1090 |
1020x1020x1120 |
1250x1250x1300 |
Weight |
420kg |
560kg |
890kg |
Note:Technical data may change due to technical progress,subject to modification without notice. | |||

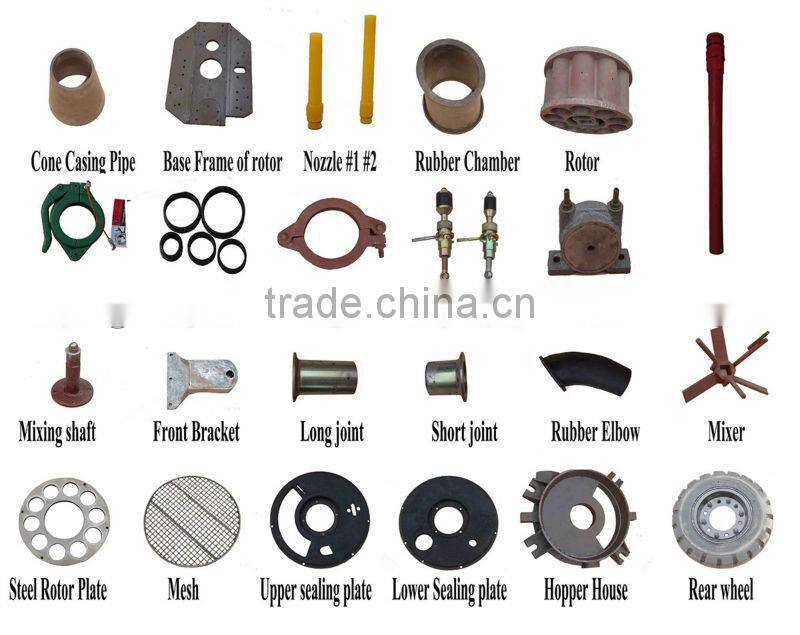

Spare parts:
Package:

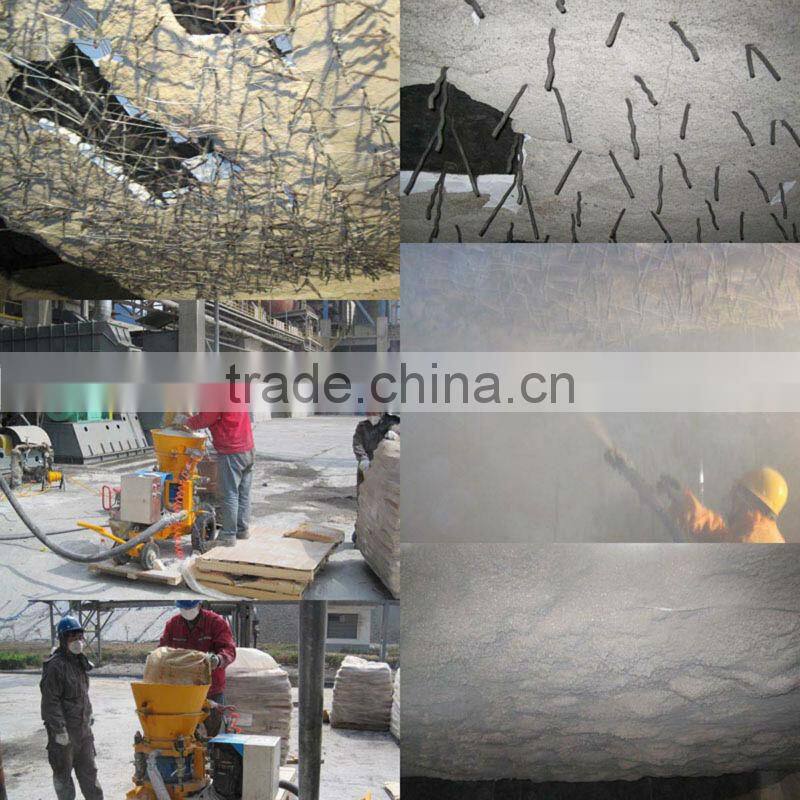

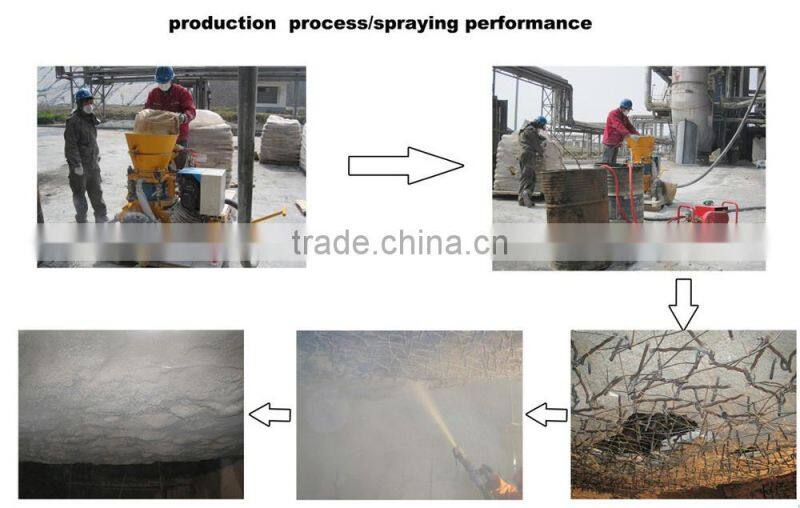

Application:
It can be used for refractory spraying applications, as well as for concrete shotcrete application.
Workshop:
Certificate:
FAQ:
