China Manufacturer Concrete Kerb Machine
- 50 Set / Sets per Month
- Shanghai Qingdao Tianjin or Other China Port
- T/T L/C D/P D/A Credit Card
You May Like
Product Details
| Condition | New | Type | Other, Paving Block Making Machine, Kerb Machine | |
| Brick Raw Material | Concrete | Processing | Other, Concrete Kerb Machine | |
| Method | Autoclaved Aerated Concrete | Automatic | Yes | |
| Capacity | 2-3m/min | Place of Origin | Henan, China | |
| Brand Name | GAODETEC | Model Number | GDHM21 | |
| Voltage | No | Power | 13Hp/3600rpm, 13Hp/3600rpm | |
| Dimension(L*W*H) | 2170*1180*970mm | Certification | CE ISO or Other Certificate | |
| Warranty | 1 year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

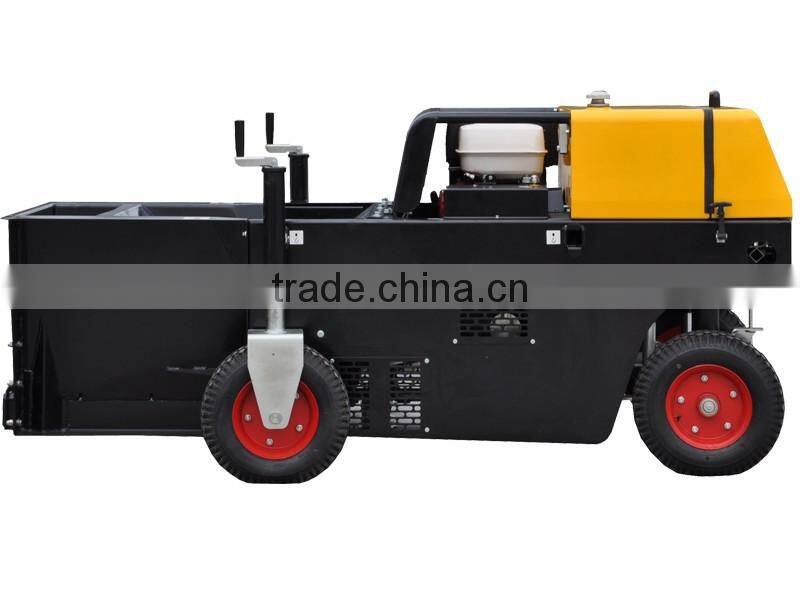

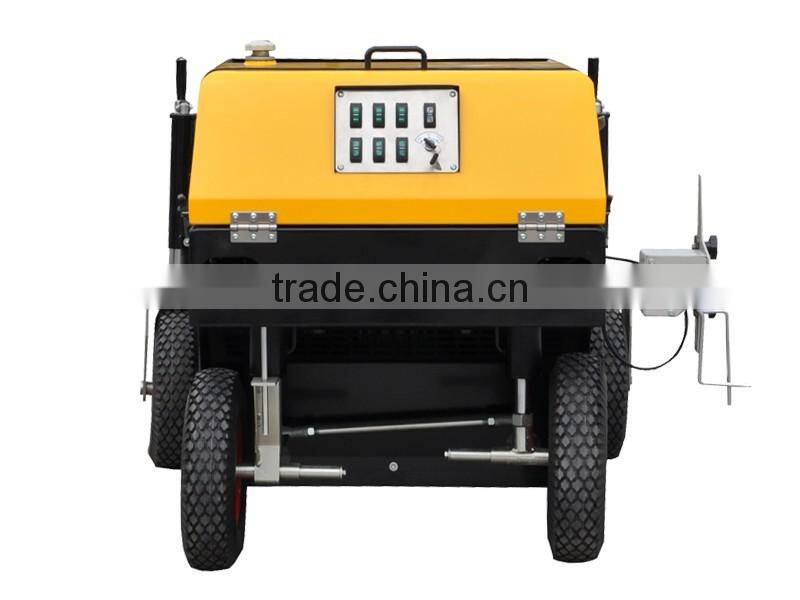

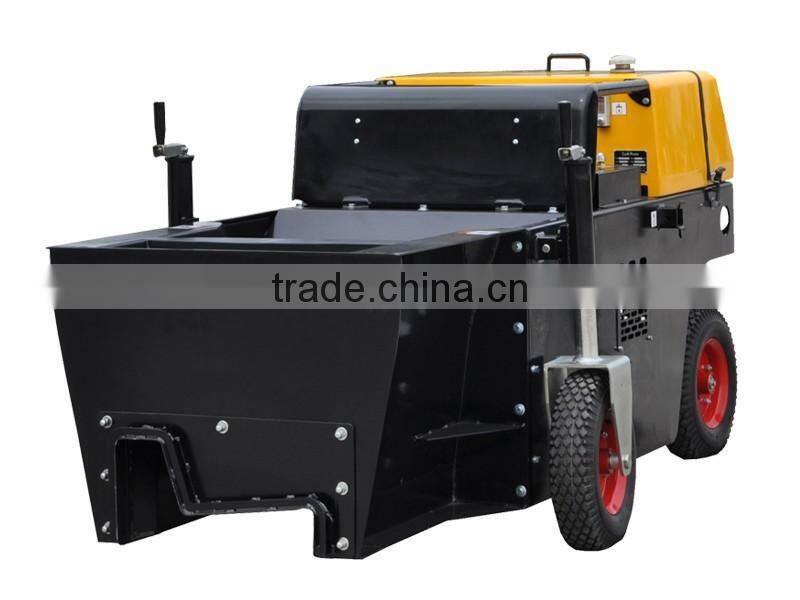

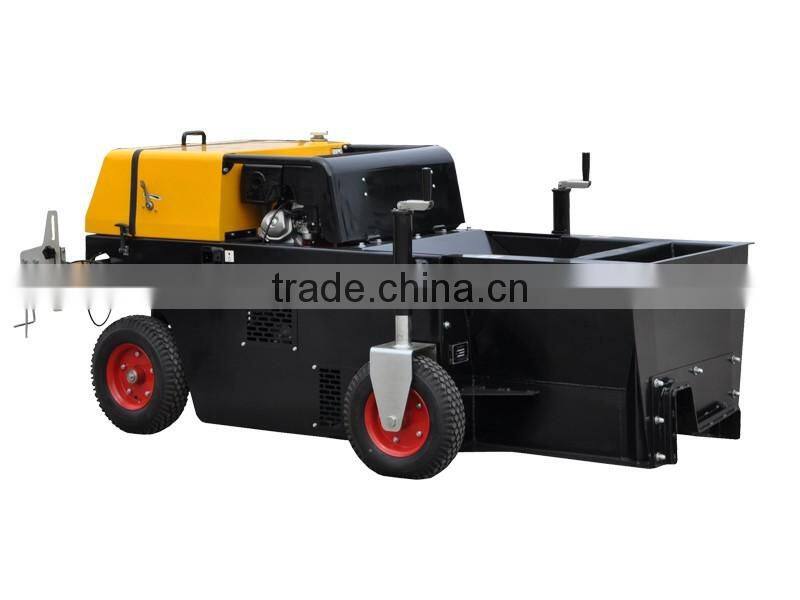

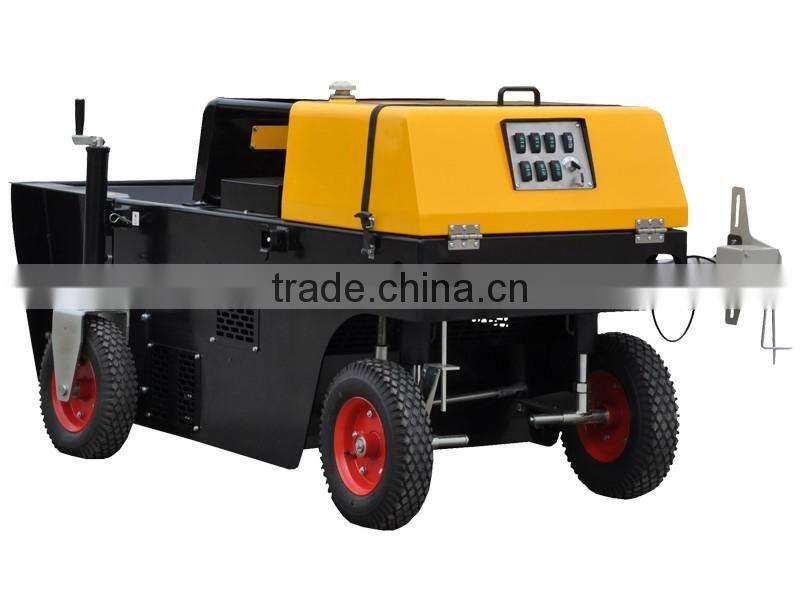

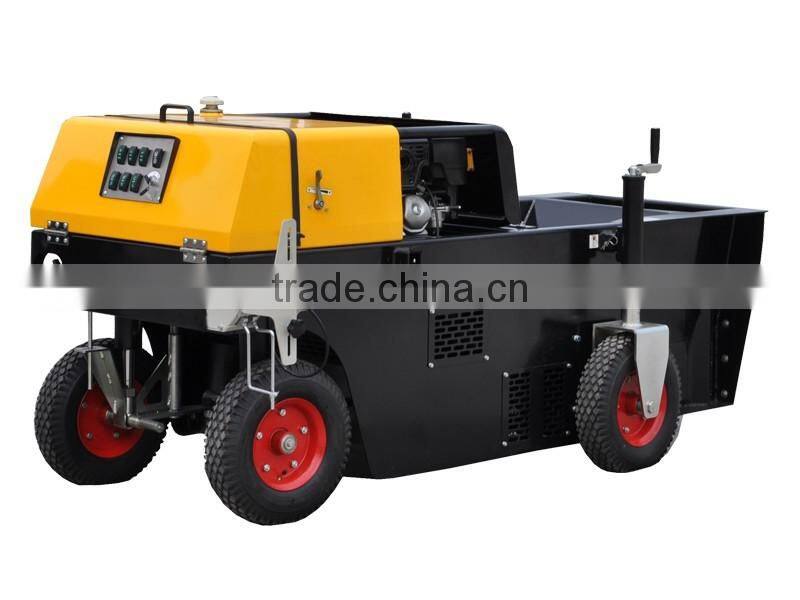

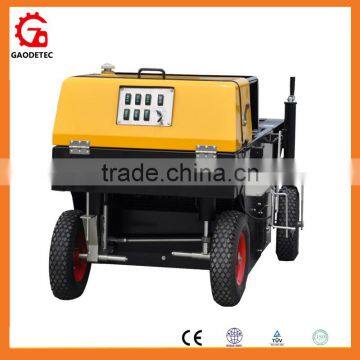

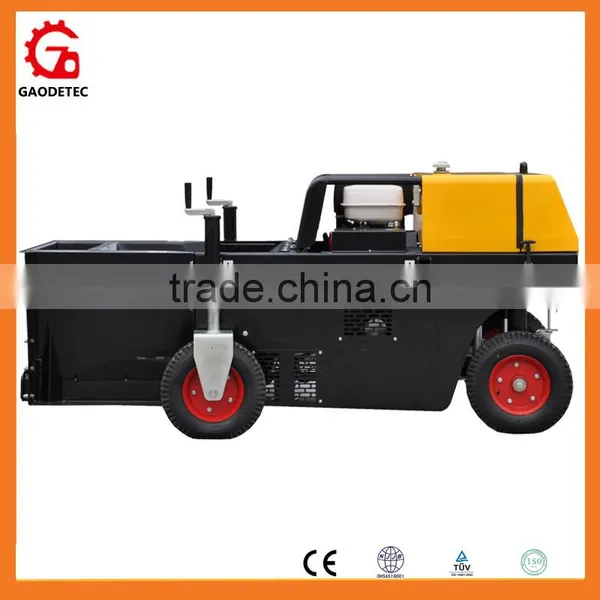

China Manufacturer Concrete Kerb Machine
This is a new kind of concrete kerb machine, hammer feeding, with manual and
automatic control system. It is a high-tech machinery, integrative technique of
electronics-hydraulics, with advanced sensors, the machine itself can adjust the
level and straight, makes the construction easily. Molds can dismantle and change
in order to meet the construction requirements.
Advantages:
1) with domestic and oversea famous diesel or petrol engine.
2) Import high precision hydraulic valve, compact and saving energy.
3) Import automatically walk precision sensor, error is less than 1mm.
4) With a electronic lever sensor, automatically balance from left and right, water lever back-up observing.
5) Import high protective rank control button.
6) We can customize kinds of specification molds.
China Manufacturer Concrete Kerb Machine
China Manufacturer Concrete Kerb Machine
Model | GDHM21 |
working | |
Working Type | Walk-behind Type |
Work Speed | 2-3m/min |
Work Mold | As per customer’s requirement. |
Engine | |
Gasoline Model | HONDA GX390 |
Gasoline Type | Gasoline engine, air cooling, 4 stroke, single cylinder. |
Power | 13Hp/3600rpm |
Fuel Tank Volume | 6.5L |
Lubricant L | 1.12L |
Fuel Consumption | 313g/kWh |
Machine Size | 2170*1180*970mm |
Package Size | 2300*1040*1200mm |
Weight | 690kg |
China Manufacturer Concrete Kerb Machine

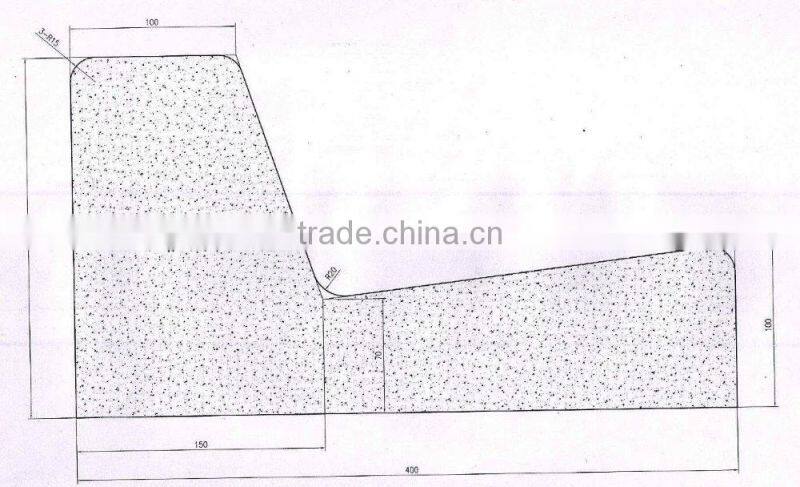

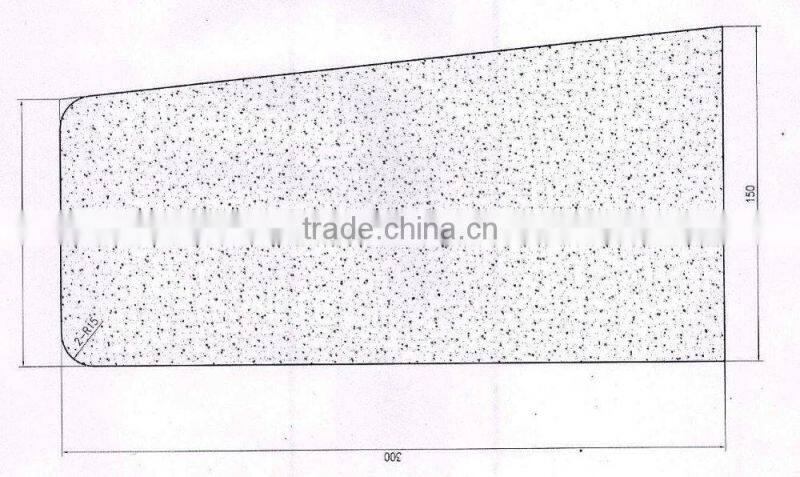

GDHM21 Modes Drawings of concrete kerb stone making machine (the two is for customer reference, we have many different modes drawings for customer choose.)
China Manufacturer Concrete Kerb Machine

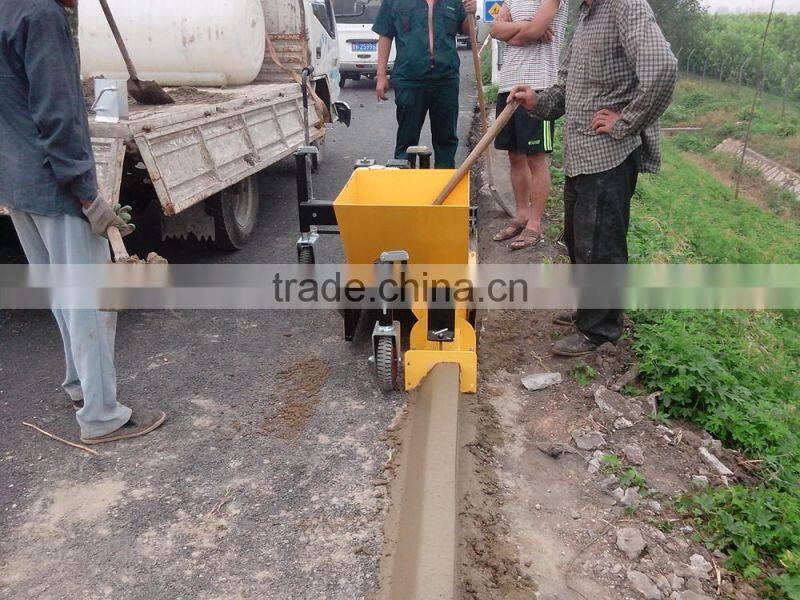

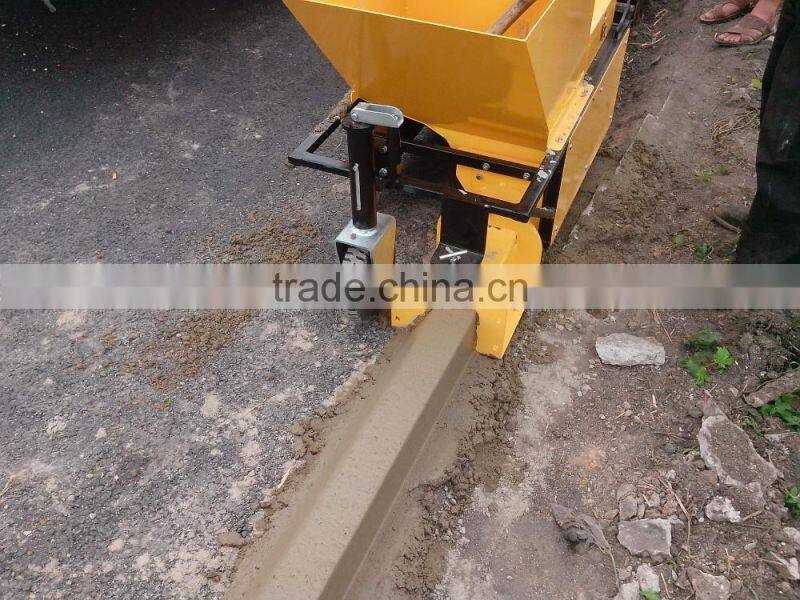

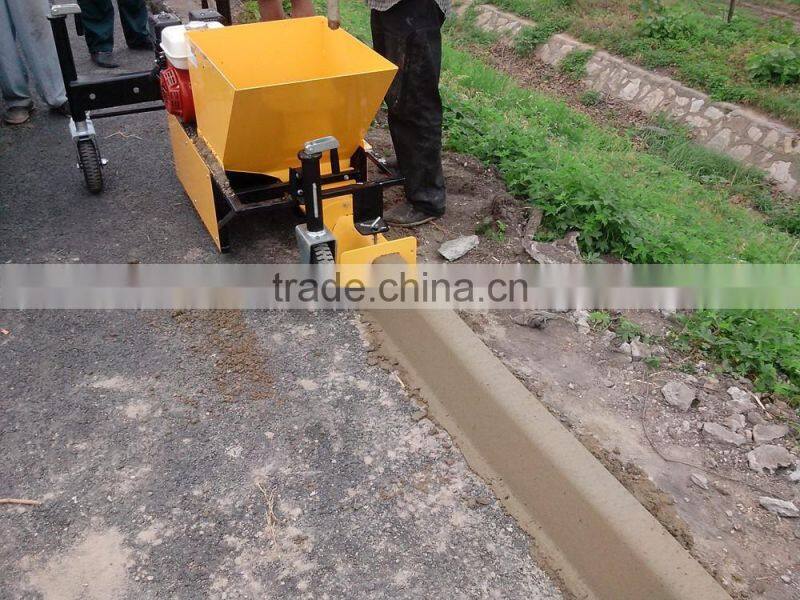

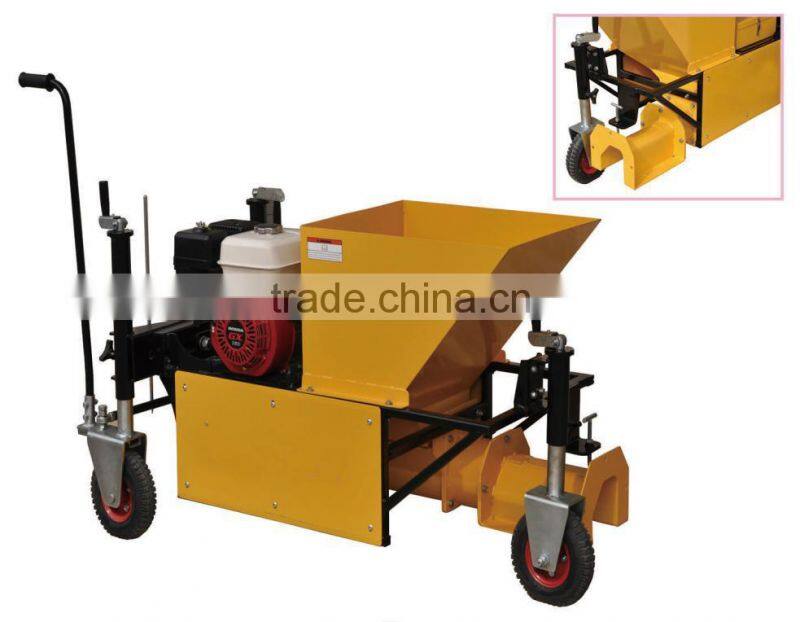

GDHM11 Hand push concrete kerb machine
1. Describe:
The hand push concrete kerb machine is compact and easy to operate, screw extrudes the concrete to make curbs,
save time and effort, specially the the curb of the gardens. Parks, community and flower bed.
2. Advantages:
1) With famous brand engine, reliable performance, easy to start-up.
2) With spiral feeding hopper, the counter force drives the machine backward walking.
3) With walking indicator to insure the correct direction.
4) Mold is easy to dismantle, and can be designed as per customer’s requirement.
5) Plastic treated, anti-rust and beautiful.
3. Picture:
4. Technical Parameters:
Model | GDHM11 |
Working | |
Working Type | Walk-behind Type |
Work Speed | 1-2m/min |
Work Mold | As per customer’s requirement. |
Engine | |
Gasoline Model | HONDA GX160 |
Gasoline Type | Gasoline engine, air cooling, 4 stroke, OHV, single cylinder. |
Power | 5.5Hp/3600rpm |
Fuel Tank Volume | 3.6L |
Lubricant L | 0.6L |
Fuel Consumption | 313g/kWh |
Machine Size | 1500*720*1100mm |
Package Size | 1540*790*910mm |
Weight | 160kg |
