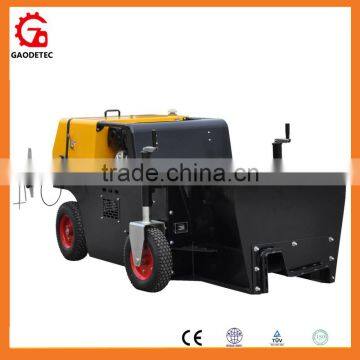

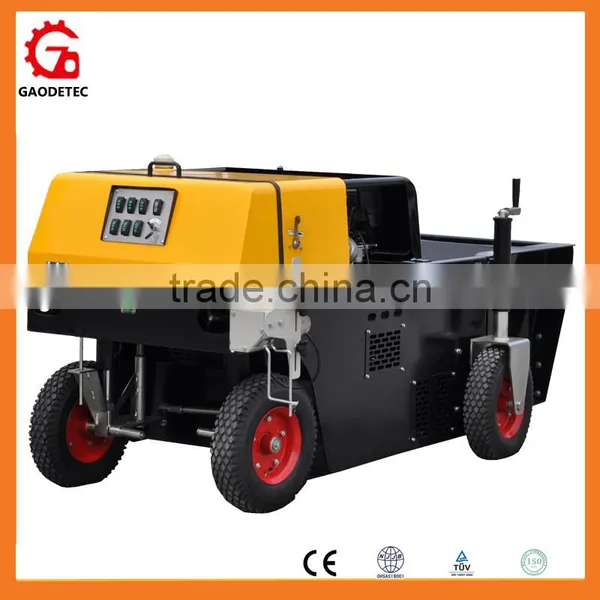

Diesel Engine Concrete Curb Stone Machine Manufacturer
This is a new kind of diesel curb stone machine, hammer feeding, with manual and automatic
control system. It is a high-tech machinery, integrative technique of electronics-hydraulics, with
advanced sensors, the machine itself can adjust the level and straight, makes the construction
easily. Molds can dismantle and change in order to meet the construction requirements.
Advantages:
1) with domestic and oversea famous diesel(KIPOR 186F) or petrol engine(HONDA GX390).
2) Import high precision hydraulic valve, compact and saving energy.
3) Import automatically walk precision sensor, error is less than 1mm.
4) With a electronic lever sensor, automatically balance from left and right, water lever back-up observing.
5) Import high protective rank control button.
6) We can customize kinds of specification molds.
Diesel Engine Concrete Curb Stone Machine Manufacturer
Diesel Engine Concrete Curb Stone Machine Manufacturer
Model | GDHM21D |
Working | |
Working Type | Walk-behind Type |
Work Speed | 2-3m/min |
Work Mold | As per customer’s requirement. |
Engine | |
Diesel Engine Model | KIPOR 186F |
Diesel Engine Type | Diesel engine, air-cooled, 4 stroke, vertical type, single cylinder. |
Power | 8Hp/3600rpm |
Fuel Tank Volume | 5.5L |
Lubricant L | 1.65L |
Fuel Consumption | 280g/kWh |
Machine Size | 2220*920*980mm |
Package Size | 2300*1040*1200mm |
Weight | 7000kg |
Diesel Engine Concrete Curb Stone Machine Manufacturer
GDHM21D Modes Drawings of curb stone machine (the two is for customer reference, we have many different modes drawings for customer choose.)
Diesel Engine Concrete Curb Stone Machine Manufacturer
GDHM11 Hand Push Curb Stone Machine Manufacturer
1. Describe:
Curb stone machine is compact and easy to operate, screw extrudes the concrete to make curbs,
save time and effort, specially the the curb of the gardens. Parks, community and flower bed.
2. Advantages:
1) With famous brand engine, reliable performance, easy to start-up.
2) With spiral feeding hopper, the counter force drives the machine backward walking.
3) With walking indicator to insure the correct direction.
4) Mold is easy to dismantle, and can be designed as per customer’s requirement.
5) Plastic treated, anti-rust and beautiful.
3. Picture:
4. Technical Parameters:
Model | GDHM11 |
Working | |
Working Type | Walk-behind Type |
Work Speed | 1-2m/min |
Work Mold | As per customer’s requirement. |
Engine | |
Gasoline Model | HONDA GX160 |
Gasoline Type | Gasoline engine, air cooling, 4 stroke, OHV, single cylinder. |
Power | 5.5Hp/3600rpm |
Fuel Tank Volume | 3.6L |
Lubricant L | 0.6L |
Fuel Consumption | 313g/kWh |
Machine Size | 1500*720*1100mm |
Package Size | 1540*790*910mm |
Weight | 160kg |
