Multi-function 7000L per Hour Output Small Concrete Pump for Sale

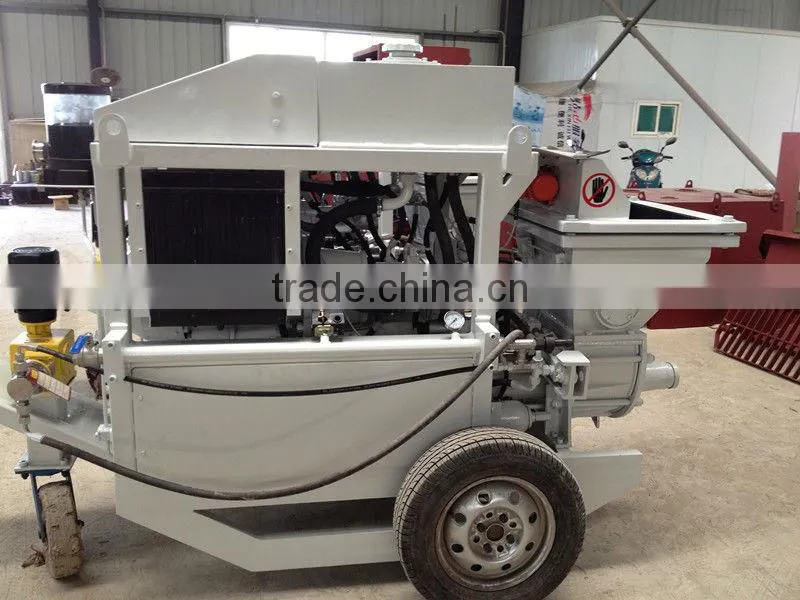

Multi-function 7000L per Hour Output Small Concrete Pump for Sale thumbnail-1

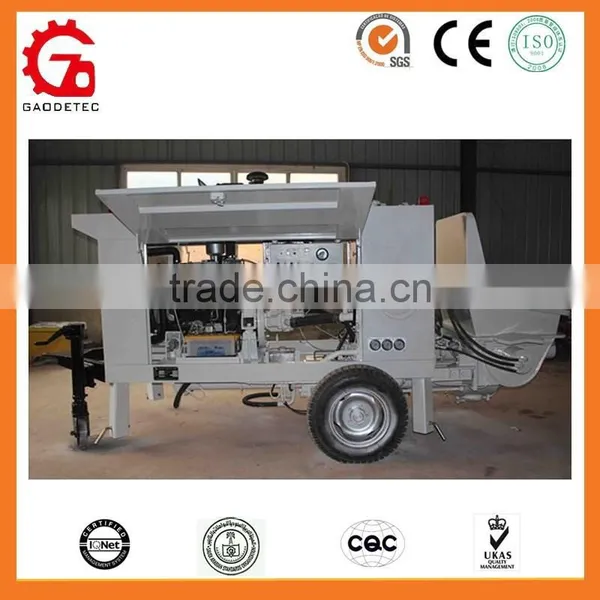

Multi-function 7000L per Hour Output Small Concrete Pump for Sale photo-1
US$ 15,000 - 50,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Max. Conveying Distance:
150m
Max Aggregate Size:
15mm
Contact Supplier Request Quote Chat Now
Zhengzhou Gaode Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Shanghai or Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Max. Conveying Distance 150m
Max Aggregate Size 15mm
Hose Inner Diameter 51 mm
Air Consumption 10m3/min
Place of Origin Henan, China
Brand Name GEC
Model Number GPS-7
Voltage 380V
Power(W) 11000
Dimension(L*W*H) 2500*1010*1450mm
Weight 960kg
Certification CE
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas

Choose GEC,choose high quality!

multi-function 7000L per hour output small concrete pump for sale



Product Description

 GPS-7 multi-function small concrete pump mainly used for wet spraying for roads, railways, mining and tunnel, spraying mixed vegetation for slope of road and railway, grouting for wall, pumping fine aggregate concrete and so on. It’s adopted internationally hydraulically driven wet spray technology, thus transmission distance and height increased 3-5 times than the rotor wet spray machine.

feature:

1. The wet spraying concrete pump is a stepless speed change pump and the output is 0-7m3/h.

2. The pump has hydraulic power, the outlet is connected with high pressure hose, nozzle is connected with a small 10m3   air compressor to work as a wet spraying machine. It changes the traditional machine which use 20 m3 air compressor to work as a wet spraying machine.It is more convenient and economical.

3.  It is easy operation, high performance and low cost.



technical data:



Parameter

Unit

Data

  Productivity

m3/h

7

  Max. particle size

mm

15

  Fineness modulus of aggregate



≥2.5

  Dosage of liquid accelerator

%

3.5

  Hose diameter

mm

51 (2″)

  Concrete slump

cm

8~15

  Systematic wind pressure

MPa

≥0.5

  Pump outlet pressure

MPa

6

  Wind consumption

m3/min

≤6

  Max. conveying distance

Horizontal

m

300

Vertical

m

80

   Dust alongside machine

mg/m3

<6

Rebound(Under standard technology)

%

Average≤15

 Motor power

kW

11/15

 Gauge

mm

600.762.900

Overall dimension(Tyre type)(L×W×H)

mm

2500×1010×1450

 Weight

kg

960

Note: It’s optional for tyre type and track type walking structure.



Related Products

We also have concrete pump of other output,7-70m3/h is all ok for us.

multi-function 7000L per hour output small concrete pump for sale

multi-function 7000L per hour output small concrete pump for salemulti-function 7000L per hour output small concrete pump for sale



Trade assurance advantages:
1. Quickly lock trusted seller, saving time and energy;
2. Reduce the risk of online purchasing;
3. If there is a trade disputes, you can complain to Alibaba and get benefits compensation.

We are a member of trade assurance on Alibaba, and our trade assurance amount is USD78000.00 Through trade assurance you can 100% payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.



 If you are interested in our products, please contact us with no hesitation. We are sure any of your questions will get our prompt attention& reply. And we are looking forward to your visit to our factory. Welcome ~

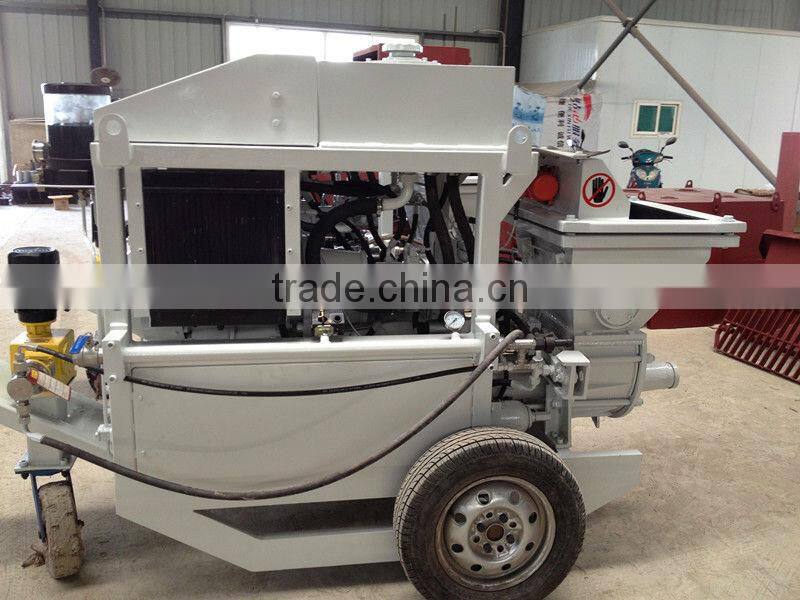

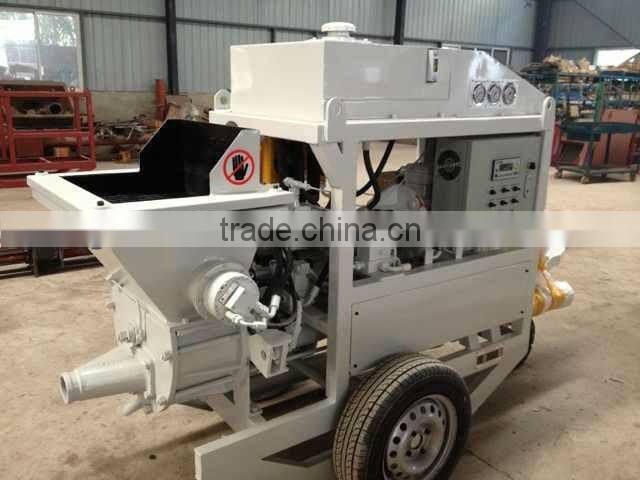

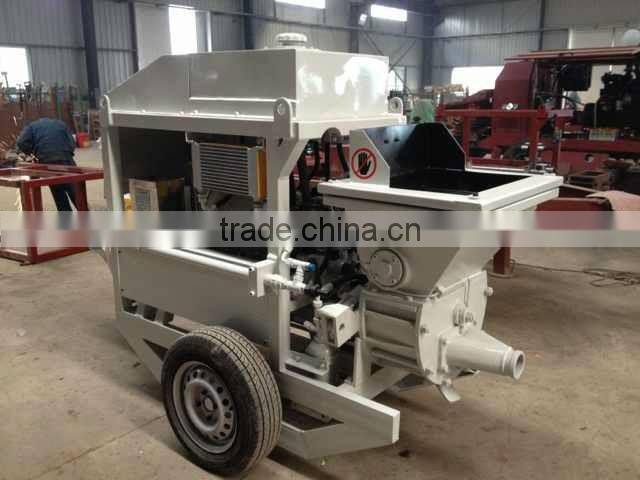

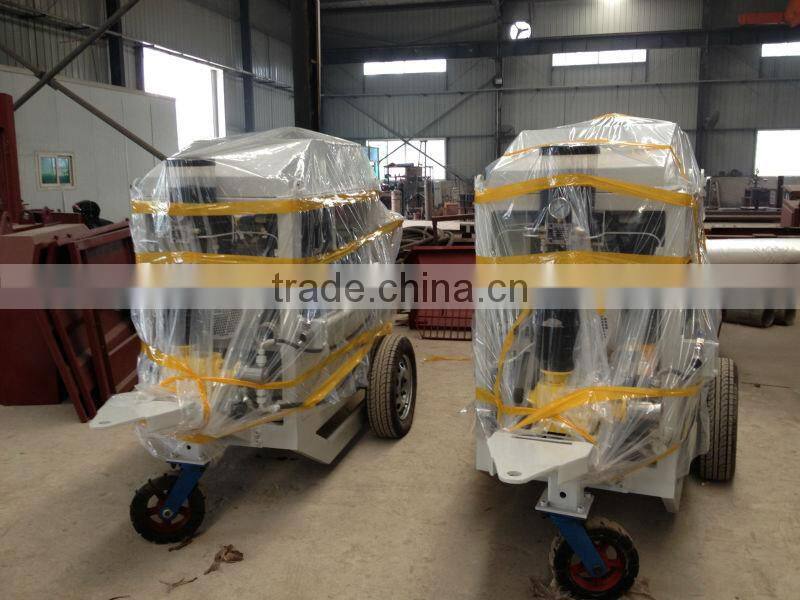

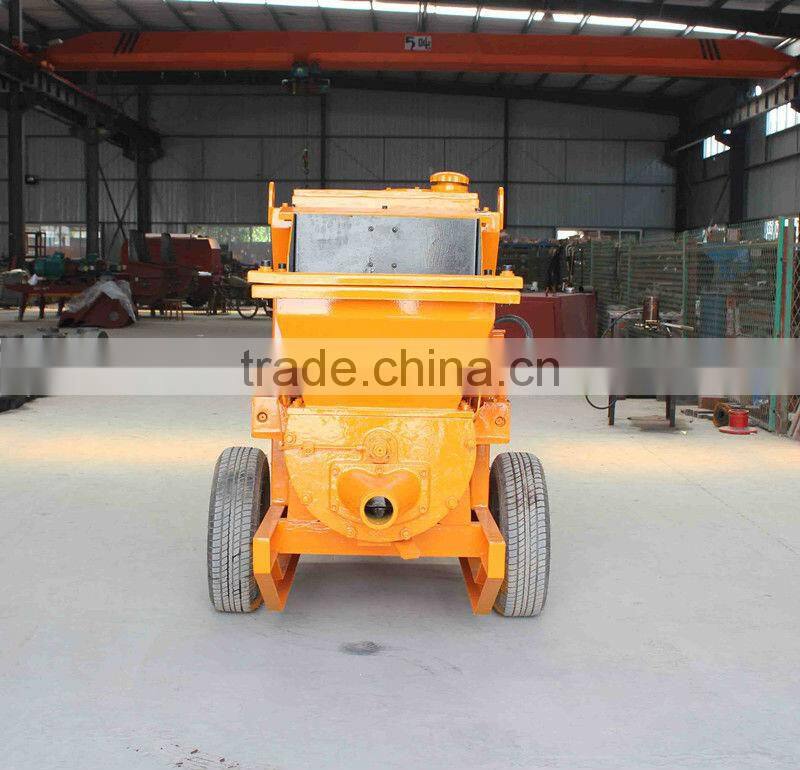

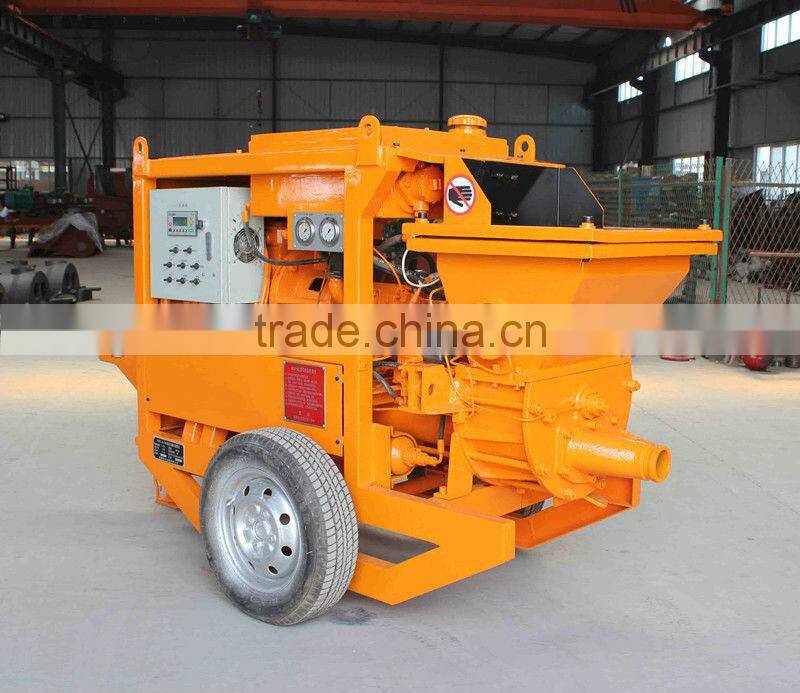

Detailed Images



multi-function 7000L per hour output small concrete pump for salemulti-function 7000L per hour output small concrete pump for salemulti-function 7000L per hour output small concrete pump for salemulti-function 7000L per hour output small concrete pump for sale



If you have any question please feel free to contact me.

Gaode Equipment Co.,Ltd.

Tel:+86-371-55951210 Fax:+86-371-63526676

Skype: lena.liu8

Whatsapp&viber: 86-15903613994

Thank you for your time and Welcome to Visit our factory!
