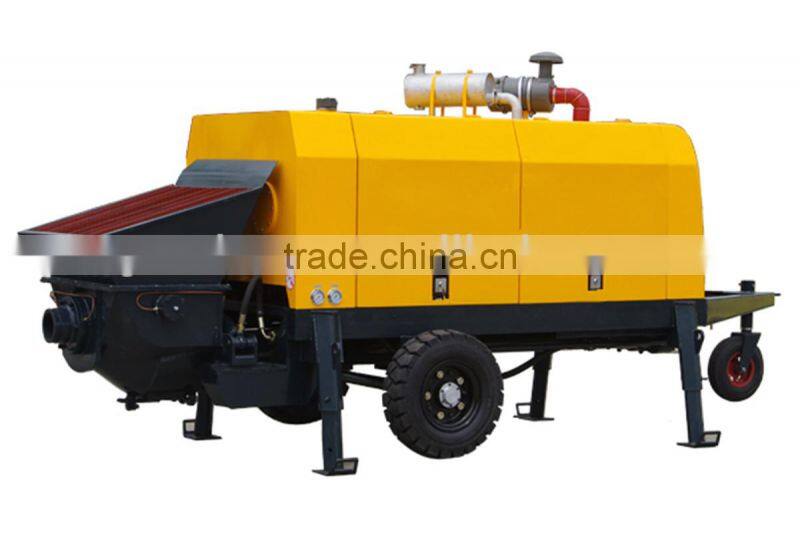

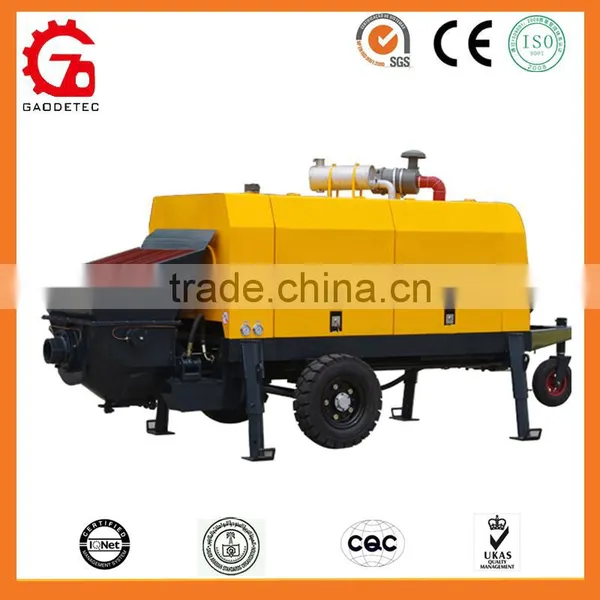

2017 GBT series OEM diesel engine concrete pump with CE ISO
Application:
1. Open country without power supply
2. Railway, tunnel, bridge construction
3. Special applications, hydropower, mining and national defense projects
Features:
1. Intelligent power control system to regulate the engine speed automatically, for smooth and efficient operation
2. Plunger pump with constant power, to ensure the efficiency of main engine
3. Good sealing S-valve, installed with floating wear resistant ring
4. High-quality wear resistant alloy components for long service-life
5. High delivery pressure for demand of high-rise and long distance projects
6. Air cooling system, without dependence of external water
7. PLC system to ensure best control performance
8. With re-pumping function to smooth construction of better accessibility
Diesel engine concrete pump technical data:
Diesel engine concrete pump | ||||||
Item |
GBT20-10RSD |
GBT30-10RSD |
GBT40-11RSD |
GBT60-11RSD |
GBT80-11RSD |
|
Pressure (Mpa) |
high pressure |
10 |
10 |
11 |
9.3 |
11 |
Low pressure |
5.5 |
5.5 |
5.3 |
4.7 |
6.4 |
|
Output(m3/h) |
high pressure |
12 |
16 |
23 |
27 |
48 |
Low pressure |
21 |
30 |
48 |
55 |
80 |
|
Conveying distance (m) |
horizontal |
350 |
350 |
400 |
350 |
400 |
verticle |
130 |
130 |
150 |
130 |
150 |
|
Max. particle (mm) |
Φ76mm |
25 |
||||
Φ89mm |
30 |
30 |
||||
Φ108mm |
35 |
35 |
||||
Φ133mm |
40 |
40 |
40 |
|||
Φ150mm |
45 |
45 |
||||
Diesel engine power(kw) |
40 |
46 |
66 |
112 |
161 |
|
Hopper Volume (m3) |
0.4 |
0.45 |
0.5 |
0.6 |
0.6 |
|
Filling height(mm) |
1100 |
1100 |
1200 |
1400 |
1400 |
|
Hydraulic oil tank volume(L) |
120 |
180 |
320 |
460 |
460 |
|
Diesel thank volume |
80 |
90 |
90 |
120 |
120 |
|
Selector valve |
S valve |
|||||
Main weight(kg) |
2500 |
3100 |
3360 |
6000 |
6600 |
|
Dimension(L*w*H) (mm) |
4300*1670*1680 |
4300*1670*1680 |
4300*1670*1680 |
5100*2160*2600 |
5860*2230*2600 |
|
