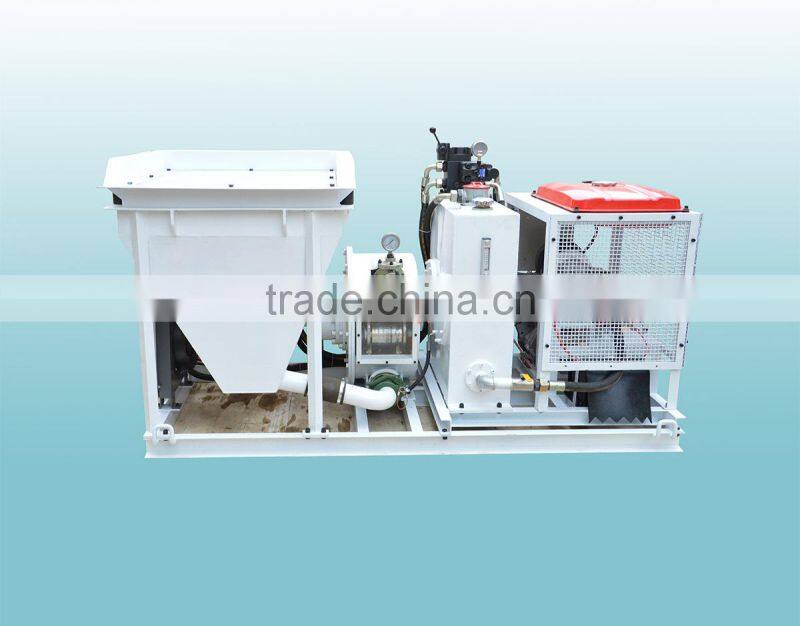

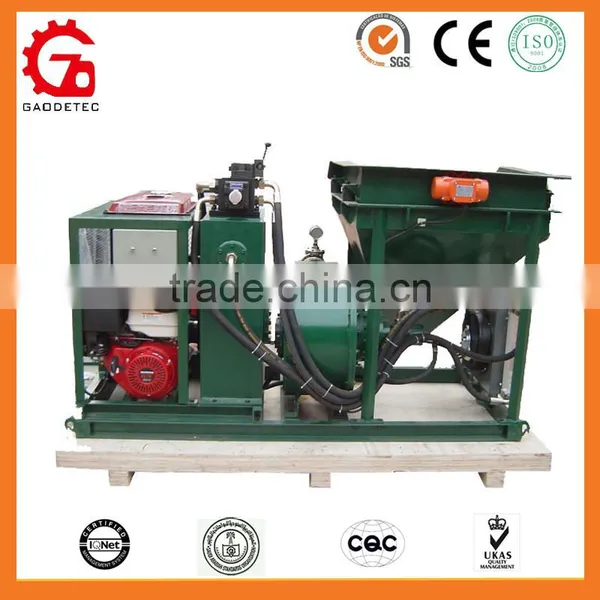

GDS1500G with CE&ISO GX390 gasoline motor concrete pump
Choose GEC,choose high quality!
GDS1500G Concrete Pump Describe
The GDS1500G is a gasoline-powered lightweight shotcrete pump run by a highly-reliable direct drive planetary gearbox and hydraulic power pack.

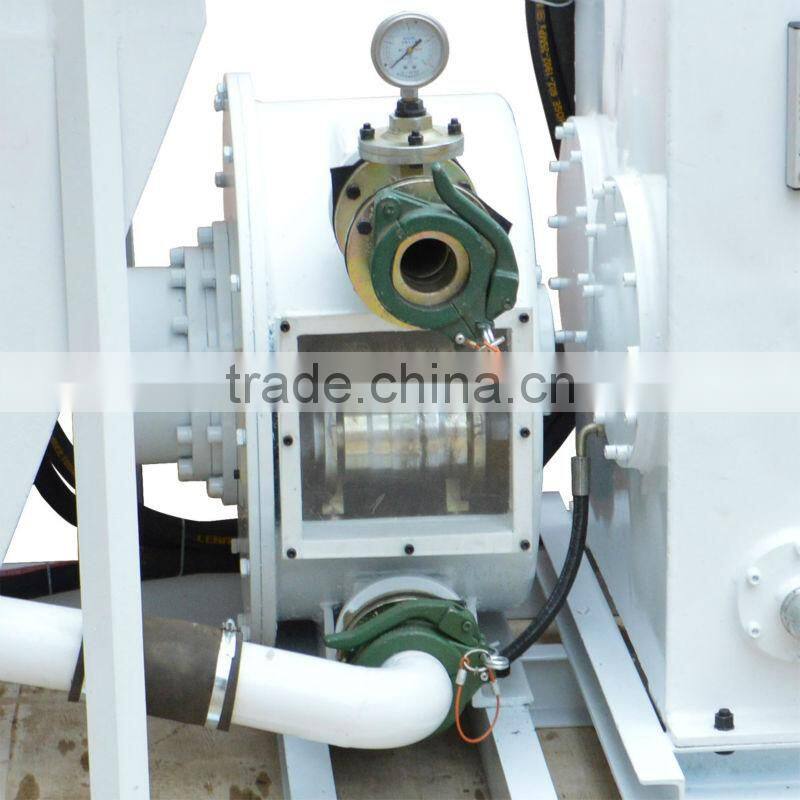

GDS1500G Shotcrete Pump sturdy workhorse is made better with the added improvement of a direct drive to the carousel.

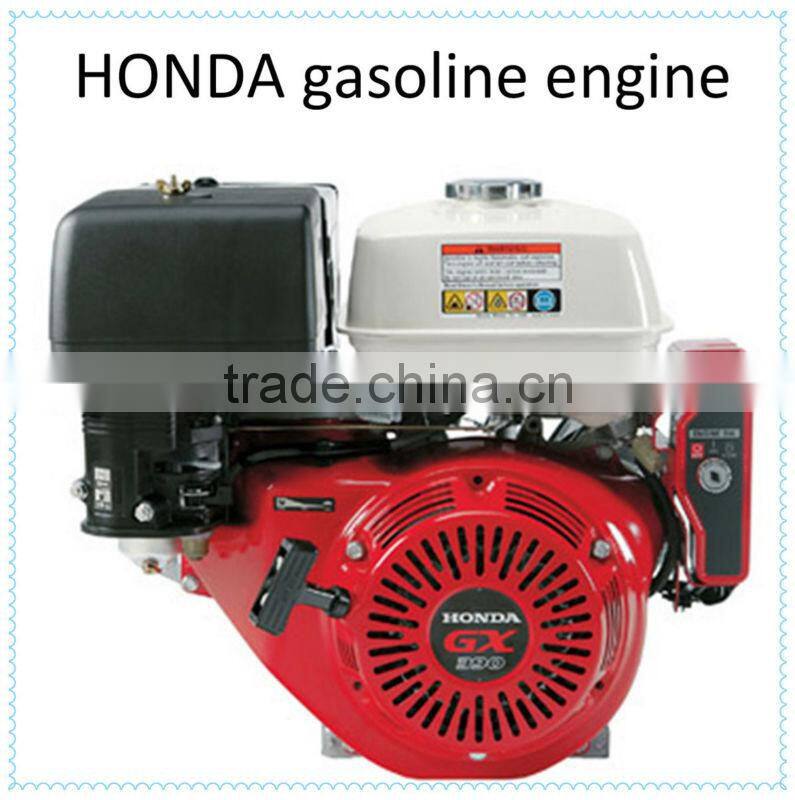

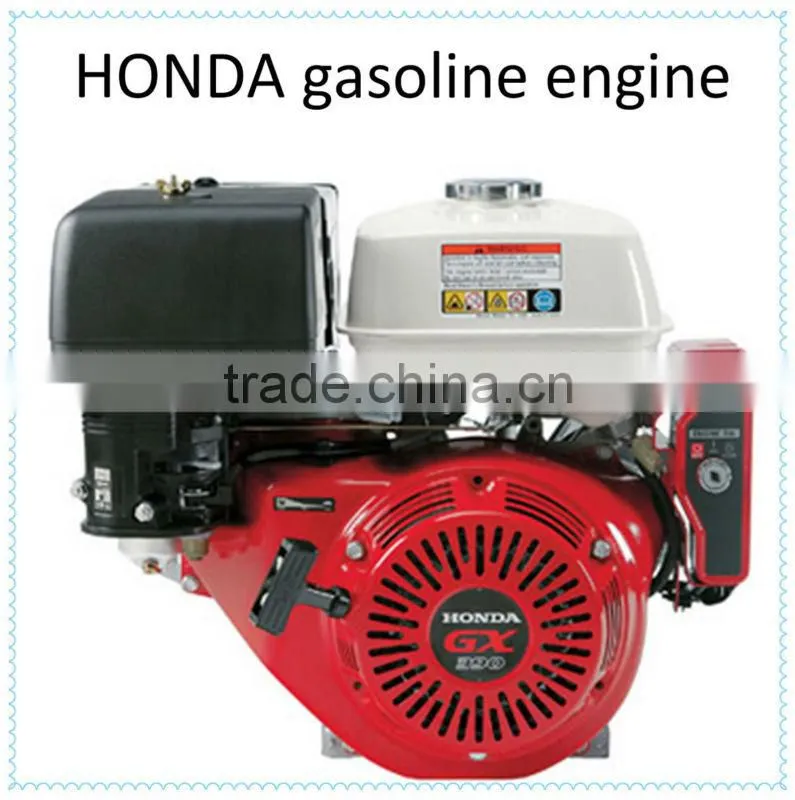

The GDS1500G Direct Drive uses a Honda GX390 power pack, is skid mounted.
GDS1500G Concrete Pump Features
1 highly-reliable direct drive planetary gearbox
2 infinite speed variation
3 Easily operating on site work
4 Standard spare part supply
GDS1500G Concrete Pump Technical Data
Item | Description |
Working Pressure | 1.5 Mpa (Chinese Hose)/3.5 Mpa (Trelleborg Hose) |
Output | 1.5-3m3/h |
Max. Aggregate | 10mm |
The Squeeze Hose | ID 50mm |
Conveying Hose | ID 38mm |
Squeeze pump | GH50-455 |
Power | Honda GX390 Gasoline engine |
Overall Dimension | 1900x850x1250mm |
Hopper volume: | 200 Liter |
Oil tank | 120 Liter |
Weight | 610kg |
Requested air compressor | 3m3/min, 0.5Mpa Pressure |
Vertical Conveying Distance | 15 m (Chinese Hose)/30 m (Trelleborg Hose) |
Horizontal Conveying Distance | 40 m (Chinese Hose)/80 m (Trelleborg Hose) |
Note: the Diesel engine or Electric motor is optional.
You also have the following option:
GDS1500D Concrete Pump Technical Data
Item | Description |
Working Pressure | 1.5 Mpa (Chinese Hose)/3.5 Mpa (Trelleborg Hose) |
Output | 1.5-3m3/h |
Max. Aggregate | 10mm |
The Squeeze Hose | ID 50mm |
Conveying Hose | ID 38mm |
Squeeze pump | GH50-455 |
Power | CFZ12 Diesel Engine, 10hp |
Overall Dimension | 2150x1100x1150mm |
Hopper volume: | 130 Liter |
Weight | 660kg |
Requested air compressor | 3m3/min, 0.5Mpa Pressure |
Vertical Conveying Distance | 15 m (Chinese Hose)/30 m (Trelleborg Hose) |
Horizontal Conveying Distance | 40 m (Chinese Hose)/80 m (Trelleborg Hose) |
Trade assurance advantages:
1. Quickly lock trusted seller, saving time and energy;
2. Reduce the risk of online purchasing;
3. If there is a trade disputes, you can complain to Alibaba and get benefits compensation.
We are a member of trade assurance on Alibaba, and our trade assurance amount is USD78000.00 Through trade assurance you can 100% payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.
Photoes

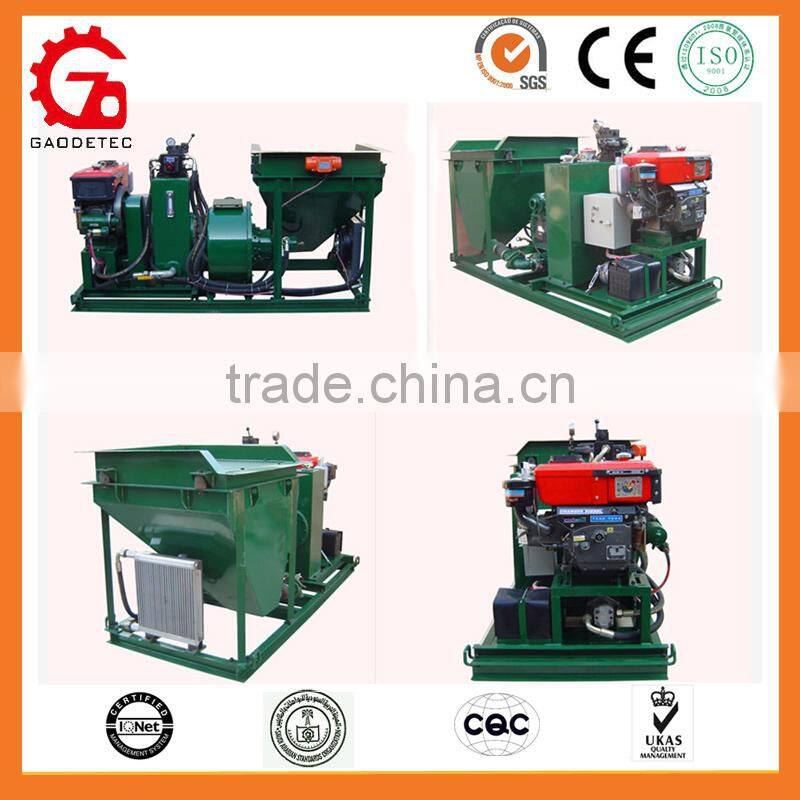

There are also have other types for choose:
If you have any question please feel free to contact me.
Gaode Equipment Co.,Ltd.
Tel:+86-371-55951210 Fax:+86-371-63526676
Skype: lena.liu8
Whatsapp&viber: 86-15903613994
Thank you for your time and Welcome to Visit our factory!
