Product Details
| Condition | New | Max. Conveying Distance | 150m | |
| Max Aggregate Size | 15mm | Hose Inner Diameter | 51 mm | |
| Air Consumption | 10m3/min | Place of Origin | Henan, China | |
| Brand Name | GEC | Model Number | GPS-7 | |
| Voltage | 380V | Power(W) | 11000 | |
| Dimension(L*W*H) | 2500*1010*1450mm | Weight | 960kg | |
| Certification | CE | Warranty | one year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Choose GEC,choose high quality!

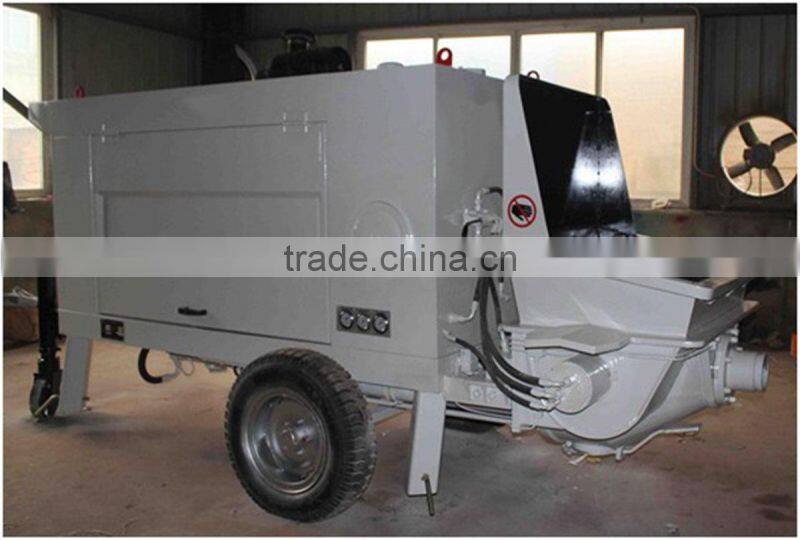

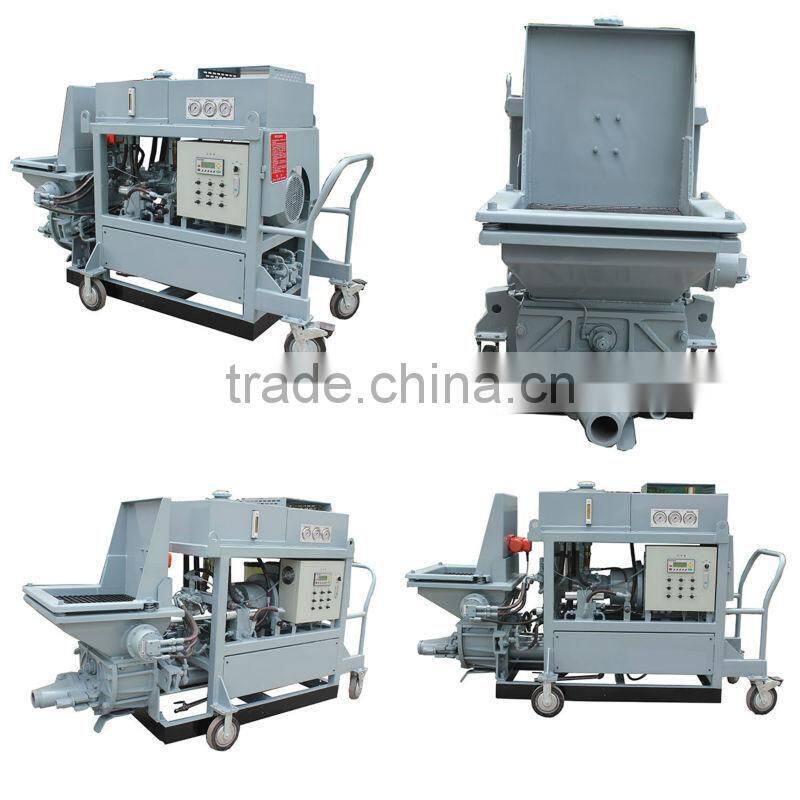

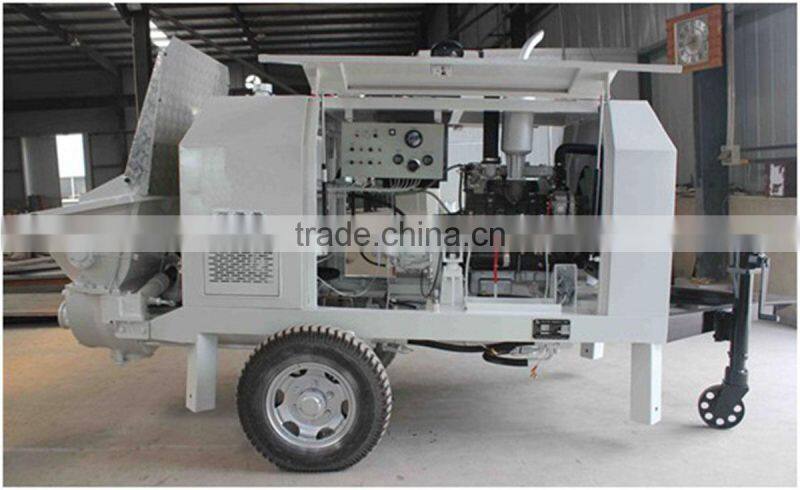

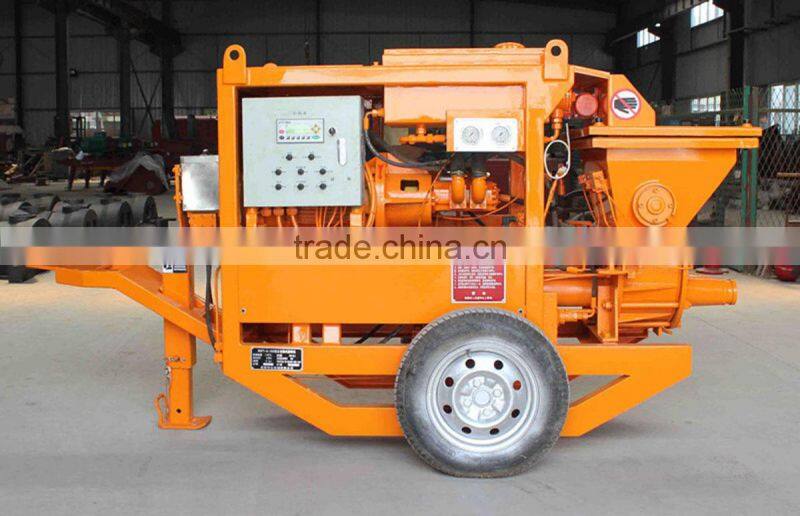

GPS-7 CE ISO wet spraying concrete pump concrete machine

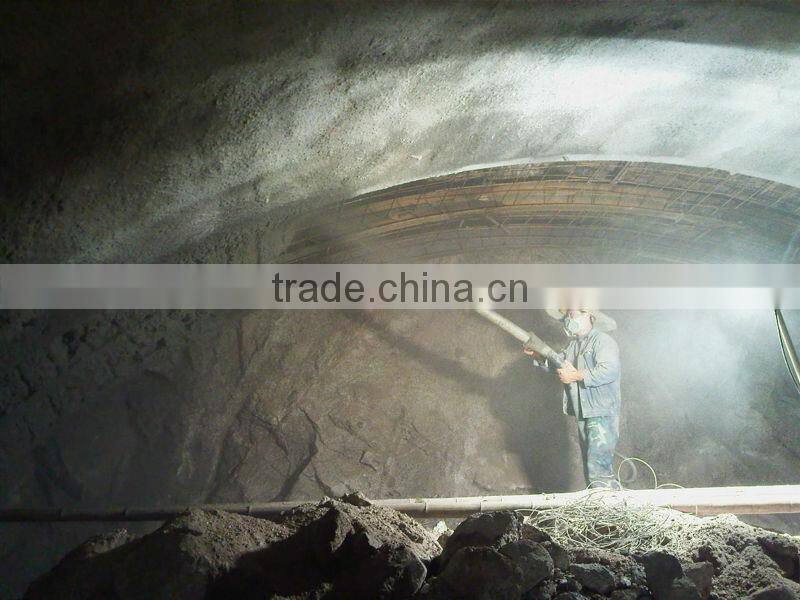

GPS-7 multi-function wet spraying concrete pump mainly used for wet spraying for roads, railways, mining and tunnel, spraying mixed vegetation for slope of road and railway, grouting for wall, pumping fine aggregate concrete and so on. It’s adopted internationally hydraulically driven wet spray technology, thus transmission distance and height increased 3-5 times than the rotor wet spray machine.
GPS-7 small concrete pump feature:
1. The wet spraying concrete pump is a stepless speed change pump and the output is 0-7m3/h.
2. The pump has hydraulic power, the outlet is connected with high pressure hose, nozzle is connected with a small 10m3 air compressor to work as a wet spraying machine. It changes the traditional machine which use 20 m3 air compressor to work as a wet spraying machine.It is more convenient and economical.
3. It is easy operation, high performance and low cost.
GPS-7 small concrete pump data:
Parameter | Unit | Data | |
Productivity | m3/h | 7 | |
Max. particle size | mm | 15 | |
Fineness modulus of aggregate |
| ≥2.5 | |
Dosage of liquid accelerator | % | 3.5 | |
Hose diameter | mm | 51 (2″) | |
Concrete slump | cm | 8~15 | |
Systematic wind pressure | MPa | ≥0.5 | |
Pump outlet pressure | MPa | 6 | |
Wind consumption | m3/min | ≤6 | |
Max. conveying distance | Horizontal | m | 300 |
Vertical | m | 80 | |
Dust alongside machine | mg/m3 | <6 | |
Rebound(Under standard technology) | % | Average≤15 | |
Motor power | kW | 11/15 | |
Gauge | mm | 600.762.900 | |
Overall dimension(Tyre type)(L×W×H) | mm | 2500×1010×1450 | |
Weight | kg | 960 | |
Note: It’s optional for tyre type and track type walking structure.
Trade assurance advantages:
1. Quickly lock trusted seller, saving time and energy;
2. Reduce the risk of online purchasing;
3. If there is a trade disputes, you can complain to Alibaba and get benefits compensation.
We are a member of trade assurance on Alibaba, and our trade assurance amount is USD78000.00 Through trade assurance you can 100% payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.
We also have concrete pump of other output,7-70m3/h is all ok for us.
