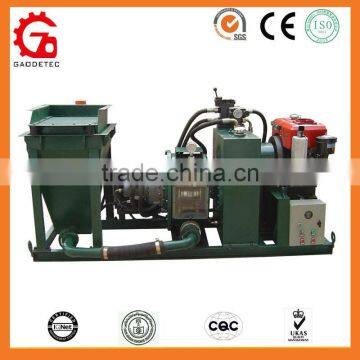

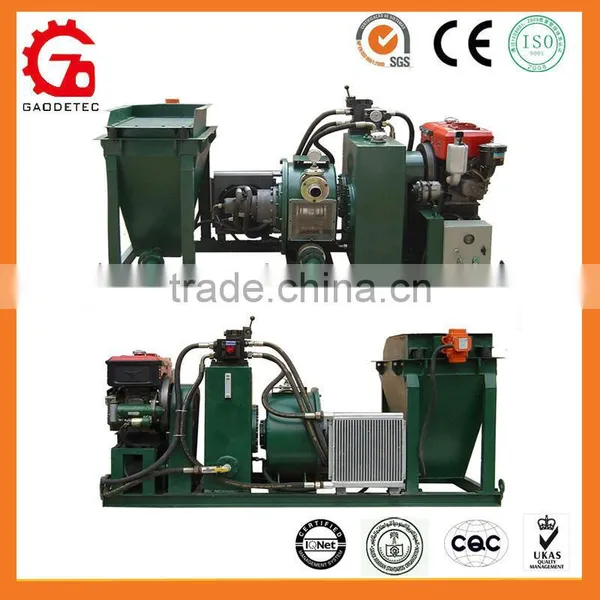

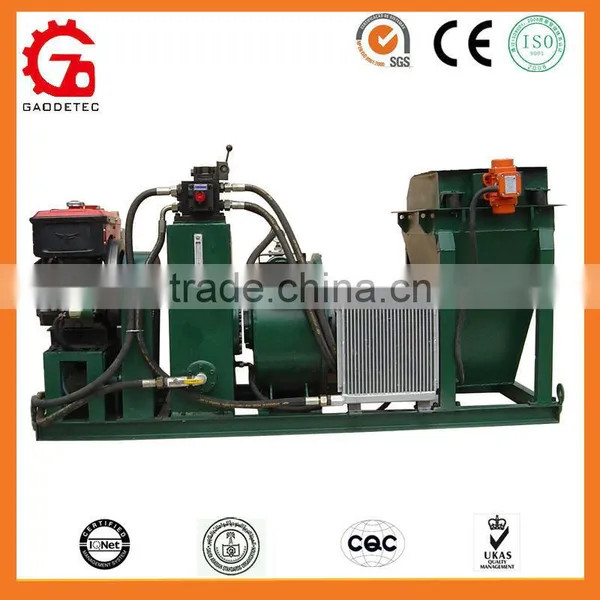

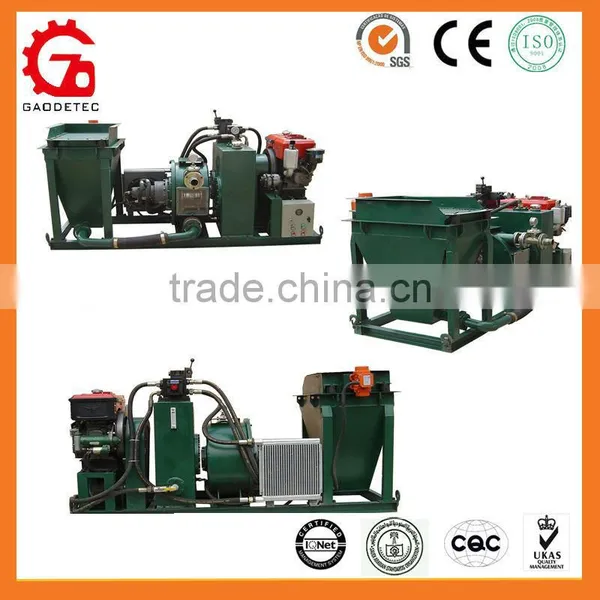

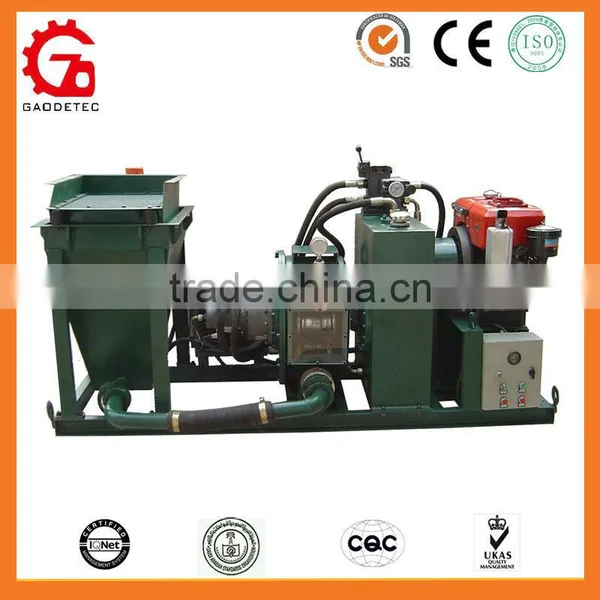

GDS1500D ISO supplier shotcrete diesel shotcrete concrete pump
GDS1500D ISO supplier shotcrete diesel shotcrete concrete pump description:
The GDS1500D shotcrete concrete pump is a diesel-powered lightweight shotcrete concrete pump run by a highly-reliable direct drive planetary gearbox and hydraulic power pack. This sturdy workhorse is made better with the added improvement of a direct drive to the carousel. The GDS1500D Direct Drive uses a 10hp diesel power pack, is skid mounted.
GDS1500D ISO supplier shotcrete diesel shotcrete concrete pump feature:
1) highly-reliable direct drive planetary gearbox
2) infinite speed variation
3) Easily operating on site work
4) Standard spare part supply concrete pump
GDS1500D ISO supplier shotcrete diesel shotcrete concrete pump Technical Data Sheet
Item |
Description |
Pressure |
1.5 Mpa |
Output |
1.5-3m3/h |
Max. Aggregate |
8mm |
The Squeeze Hose |
ID 50mm |
Conveying Hose |
ID 38mm |
Squeeze pump |
GH50-455 |
Power |
CFZ12 Diesel Engine, 10hp |
Overall Dimension |
2150x1100x1150mm |
Hopper volume: |
130 Liter |
Weight |
660kg |
Requested air compressor |
3m3/min, 0.5Mpa Pressure |

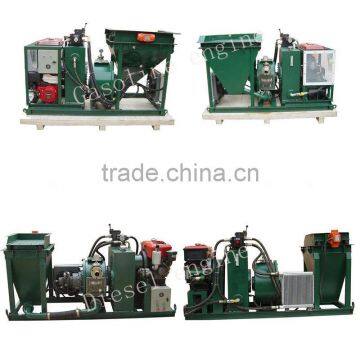

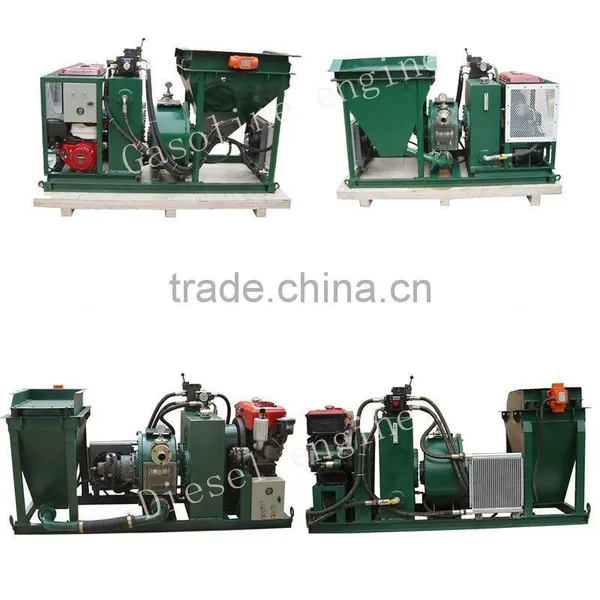

Note: the Gasoline engine or Electric motor is optional.
Application at site
Package:
Workshop:
Certificate:
