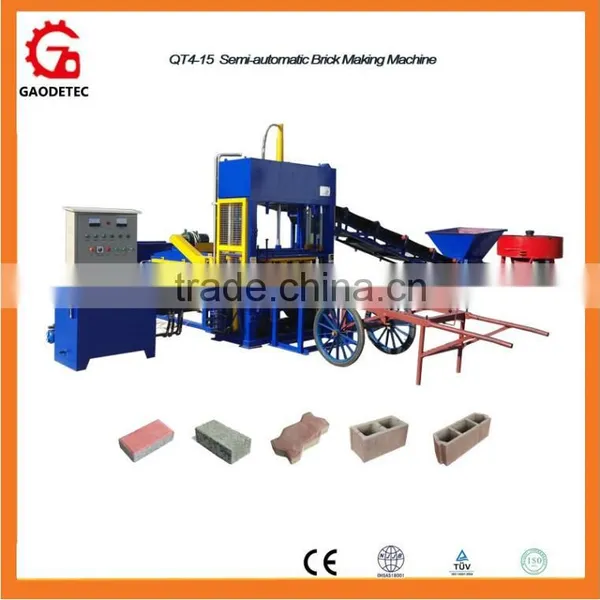

QT4-15 Automatic Hydraform Interlocking Brick Machine in kenya
Features
1.Way of moulding is vibration combined with hydraulic pressure.So blocks havegood strength and density.
The machine can produce hollow block,solid block,paving block by changing mould.
2.The way of concrete feeding into mould is compulsive by three shaft with blades.It is quick speed and well
distributed.The vibration is oil-immersed to have a good lubrication.
3.Only two vibration motors is always working,other motors works fitfully.So it is power saving.
4.Concrete feeder,pallet feeder,up mould and down mould is powered by hydraulic system.
5.Mould is made with heat treatment,Carburizing.So working life of mould is improved.
Main Technical Specification:
Description |
Data |
Block making machine type |
QT4-15 |
Vibration Frequency |
4200r/min |
Vibration Force |
70KN |
Cycle Time |
15-25sec |
Power |
19.9KW |
Mode of Vibration |
Table Vibration |
Pallet Size |
960x630mm |
Weight |
4500KG |
Dimension |
2800x1570x2600mm |
Production Capacity
Block Type |
Picture |
Size(L x W x H) |
Pcs./Pallet |
Pcs./Hour |
Pcs./8 Hours |
Hollow Block |
|
390x190x190mm |
4 |
625 |
5000 |
Hollow Block |
|
390x150x190mm |
5 |
780 |
6240 |
Hourdi Block |
|
530x160x195mm |
5 |
780 |
6240 |
Stock Brick |
|
220x110x70mm |
20 |
4500 |
36000 |
Paving Block |
|
200x100x60mm |
16 |
2300 |
18400 |
Paving Block |
|
225x112.5x60mm |
14 |
2000 |
16000 |
Recommendation Configuration
Description |
Quantity |
Remark |
Main Machine |
1set |
|
Hydraulic System |
1set |
|
ElectricControl Cabinet |
1set |
|
Concrete Feeder |
1set |
|
Pallets Feeder |
1set |
|
Belt Conveyor |
1set |
|
Pallet Stand |
1set |
|
HT350 Mixing Machine |
1set |
|
Pallet |
15 pieces |
|
Manual Cart |
4sets |
|
Colour Feeder |
1set |
Optional Parts |
Pallet(960x630x30mm) |
1000pieces |
Optional Parts |

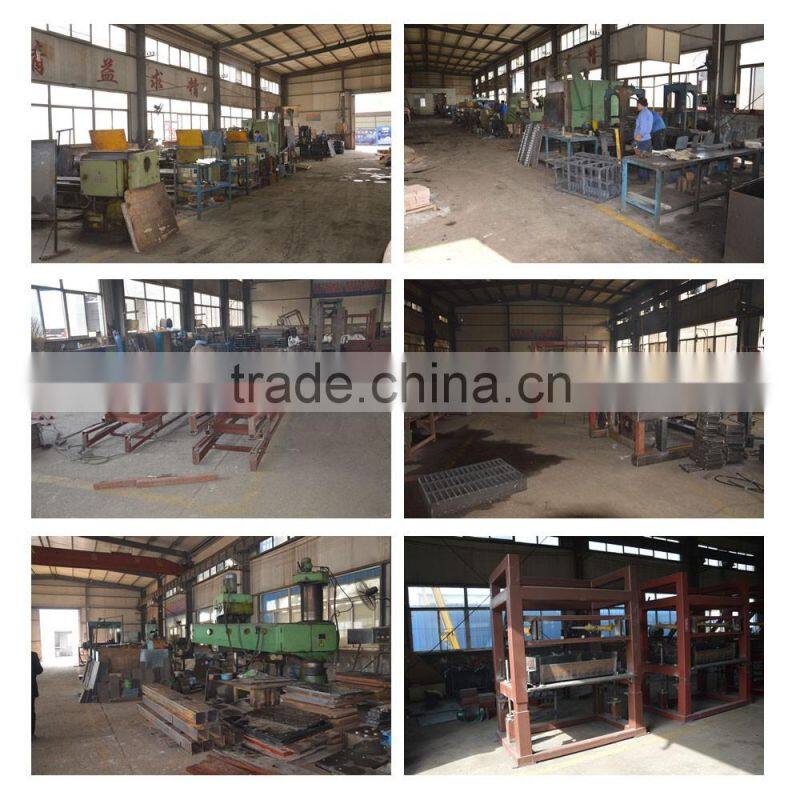

Our factory show
