QT5-15 Top Quality Automatic Brick Making Machine Price List Hollow Block Machine From China
The brick making machine adopts siemens PLC contorl system with program control and automatic diagnostic program to realize the manless operation.
The machine has a good design and simple operation, which will make you feel the value of the technology. For simple operation, morden way of moulding, power-saving and special technology, the value of the machine is higher than price.
Raw material:Crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel,
perlite, and other industrial wastes.
Main Features
1. The machine is made of super-strong steel with special welding techniques. So the machine is highly firm and shake-resistan.
2. The mould, gears and shafts have heat treatments of quenching, boronizing, carburing and so on in order to ensure the quality of block machine.
3. Integrative and simultaneous viberation will make the machine have the best soild and pressure effects.
4. The machine adopts four-pole-orientation, extended and wear-resistant bushing to ensure the right movement of head of mould.
5. Adopting orienting way operation, the materials spreader will decrease the friction with mould and have a perfect spreading.
6. The hydraulic parts is from Taiwan, Japan, and Germany.
7. Vibration system: German inverter technology, the host variable frequency control, the exciter assembly with oil-immersed, improved brick density, more energy, and rapid prototying.
8. The machine has a high production and good density.The blocks can be stacked once after being moulding.
9. The machine has excellent energy-saving quality and it belogs to energy-saving machines.
10. It uses high emission hydraulic pump and the system can move quickly.
11. The solid bricks can be stacked once after moulding and then you can avoid the cost for ground, pallets and labours 1 to 2cents.
Main Technical Parameters :
Description |
Data |
Block making machine type |
QT5-15 |
Vibration Frequency |
4200r/min |
Vibration Force |
70KN |
Cycle Time |
15-25sec |
Power |
24.7KW |
Mode of Vibration |
Table Vibration |
Pallet Size |
1100 x700x30mm |
Overall Weight |
6T |
Overall Dimension |
3000x1900x2930mm |

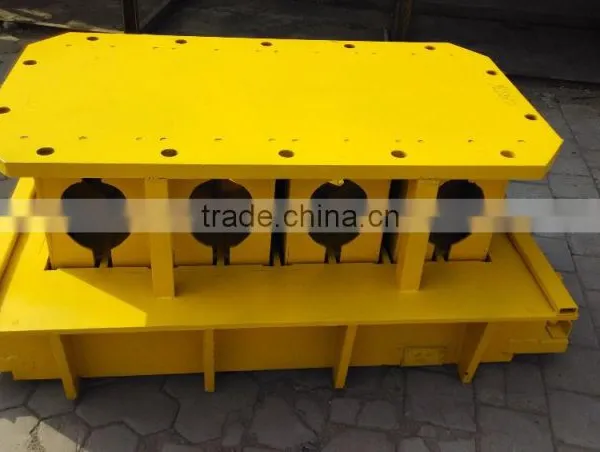

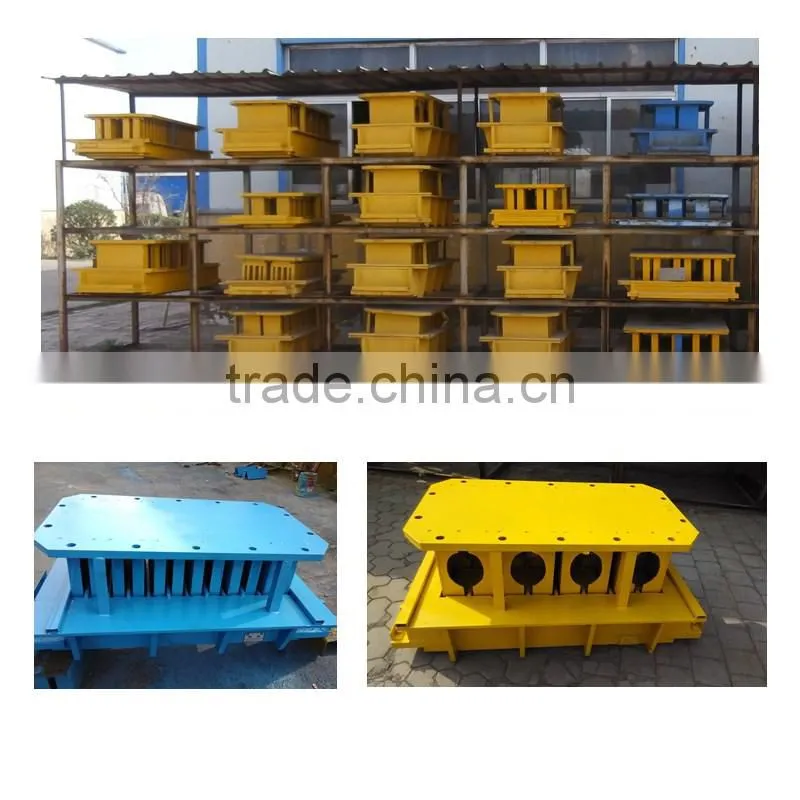

Brick Mould
Recommendation Configuration
Description |
Quantity |
Remark |
Main Machine |
1set |
|

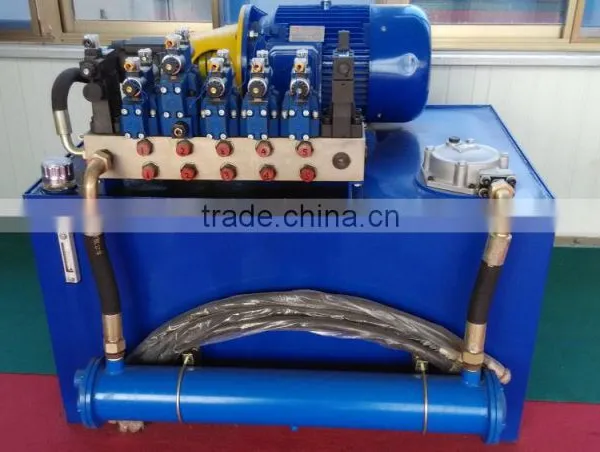

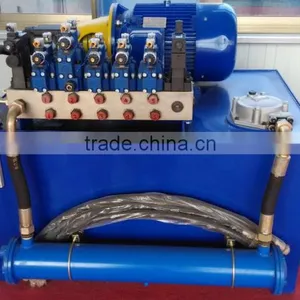

Hydraulic System |
1set |
|
ElectricControl Cabinet |
1set |
|
Concrete Feeder |
1set |
|
Pallets Feeder |
1set |
|
Belt Conveyor |
1set |
|
Pallet Stand |
1set |
|
HT350 Mixing Machine |
1set |
|
Pallet |
15 pieces |
|
Manual Cart |
4sets |
|
Colour Feeder |
1set |
Optional Parts |
Pallet(960x630x30mm) |
1000pieces |
Optional Parts |
Production Capacity
Block Type |
Picture |
Size(L x W x H) |
Pcs./Mold |
Pcs./Hour |
Pcs./8 Hours |
Hollow Block |
|
390x190x190mm |
5 |
780 |
6240 |
Hollow Block |
|
390x150x190mm |
6 |
940 |
7520 |
Hourdi Block |
|
530x160x195mm |
6 |
940 |
7520 |
Stock Brick |
|
220x110x70mm |
24 |
5400 |
43200 |
Paving Block |
|
200x100x60mm |
22 |
3160 |
28280 |
Paving Block |
|
225x112.5x60mm |
20 |
2880 |
23040 |
Block/brick Samples
Our Brick Making Machine at worksite
1. Methods of Payment:
2. Handling time for an order
Based on order quantity, normally it takes 25 days for production after payment.
Only 2 or 3 days if we have stock on your request size.
3. Shipping way
Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air
Bulk order: we suggest by air or by sea.
4. Quality Control
We have our own experienced QC, ISO9001.
There will be strict inspection and testing for every order before shipping out.
5. After Services:
a. Our sales team will response for your question within 24 hours (Holidays Excluded)
b. Technical Support will be available in any time
