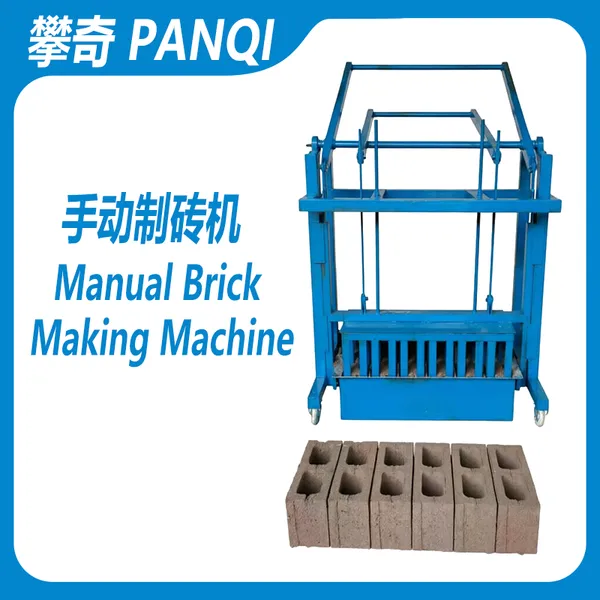

MANUAL BRICK MAKING MACHINE
Fully Manual Power-Free Design · Mobile & Stationary Two Types · Multiple Block Molds Available
Product Overview
This fully manual brick-making machine comes with two optional versions: mobile model and stationary model. The machine adopts labor-saving lever compression structure, 100% no electricity or generator required, which can be put into production directly in rural areas and remote construction sites without power grid access.
Both versions share the same pressing system and operation flow, only different in base frame. Full mechanical manual driving design without any electric parts, few spare parts and ultra-low maintenance cost. Interchangeable customized molds support production of hollow blocks, solid standard bricks, interlocking grass pavers, slope protection special-shaped bricks and other non-fired blocks.
Technical Parameters
| Parameter Name | Parameter Value |
|---|---|
| Overall Dimensions | 1270*980*1370mm |
| Machine Weight | 350kg |
| Molding Cycle | 30 seconds per cycle |
| Output Per Molding | 400×200×200mm Hollow Block: 4 pcs per cycle |
| 400×150×200mm Hollow Block: 5 pcs per cycle | |
| 400×100×200mm Hollow Block: 7 pcs per cycle | |
| Daily Output (8 Working Hours) | 300-400 molding cycles per day |
| Required Operators | 1-2 persons |
Applicable Range
Finished Products: Solid standard bricks, hollow blocks, interlocking grass pavers, permeable special-shaped blocks and other small non-fired bricks. Fast mold replacement meets construction demands of rural housing, farm roads, slope protection and other medium & small engineering projects.
Applicable Raw Materials: Fine raw materials including clay, silt sand, cement, aggregate, fly ash, crushed construction waste and slag are all acceptable. Easy local material access greatly reduces production cost. No power supply required, perfectly suitable for field construction and remote rural sites widely seen in Africa & Southeast Asia.
|
Clay |
Sand Aggregate |
Fly Ash |
|
Crushed Construction Waste |
Slag |
Silt Sand |

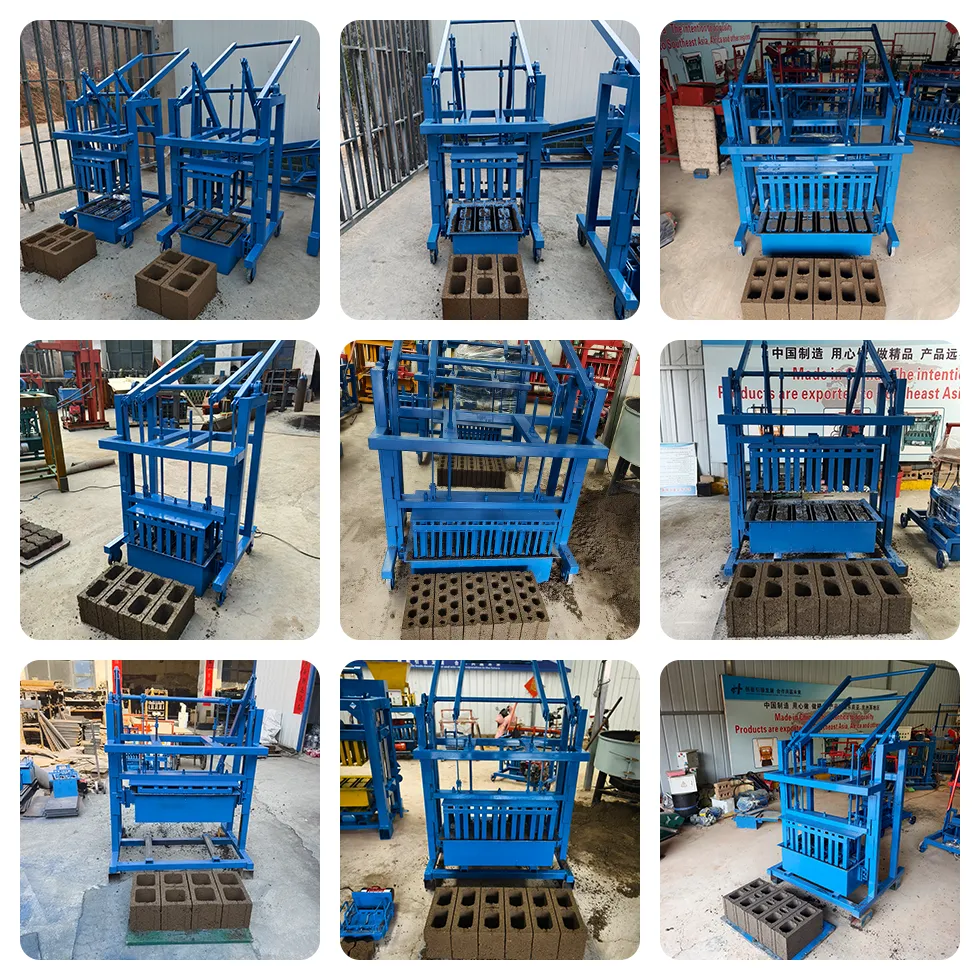

Machine Display

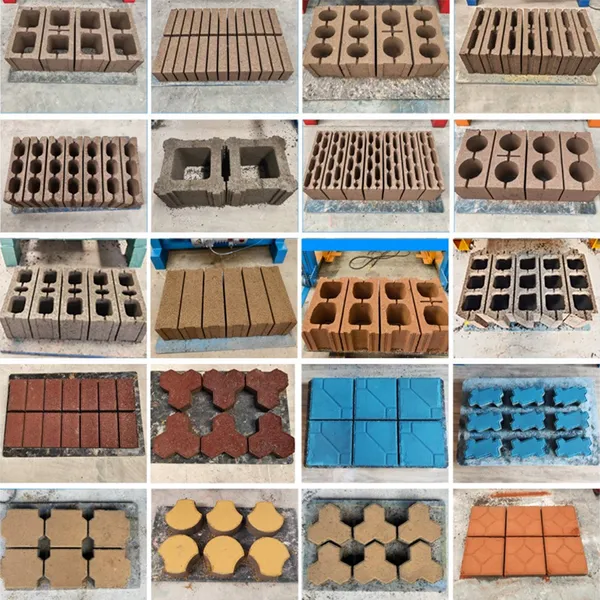

Molding Effect
Adopting labor-saving lever compression technology, the machine delivers stable and fast production. Finished bricks feature high density, neat edges and standard dimensions without chipping, cracking or hollow defects.
Mold Display
The molds are manufactured with high-quality wear-resistant steel, featuring high hardness, anti-deformation performance and long service life. Custom special-shaped molds are available to meet diverse customized production requirements from global buyers.

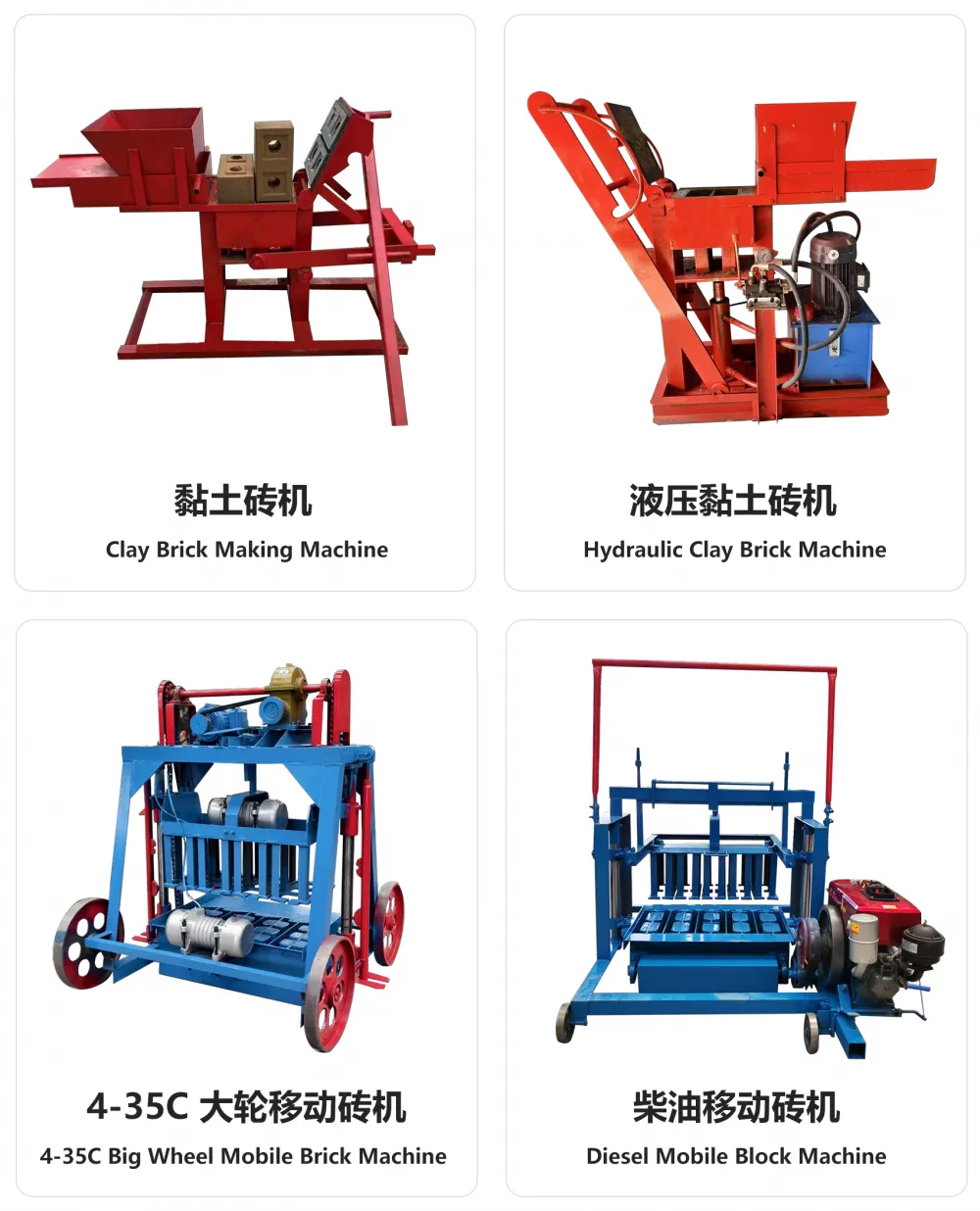

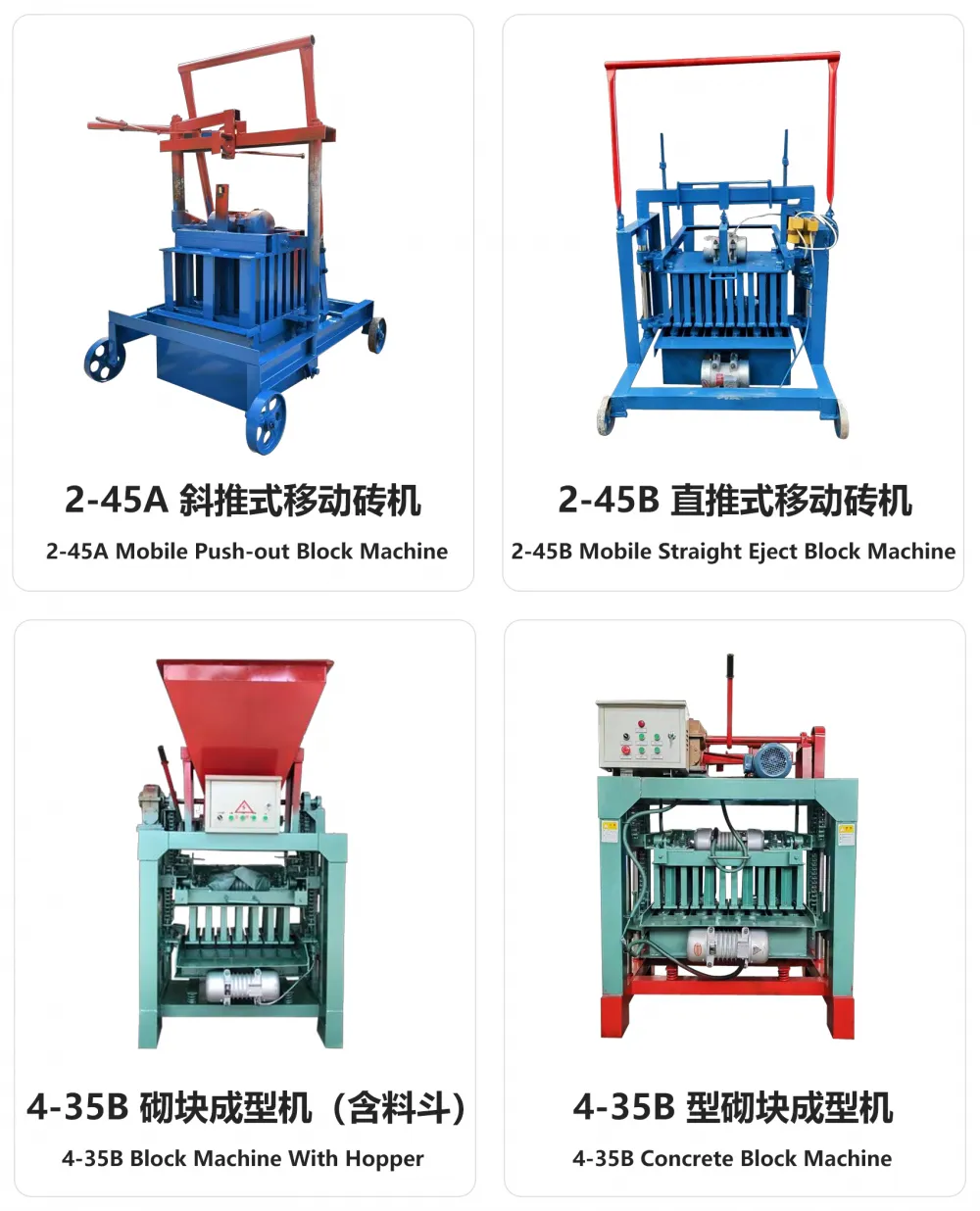

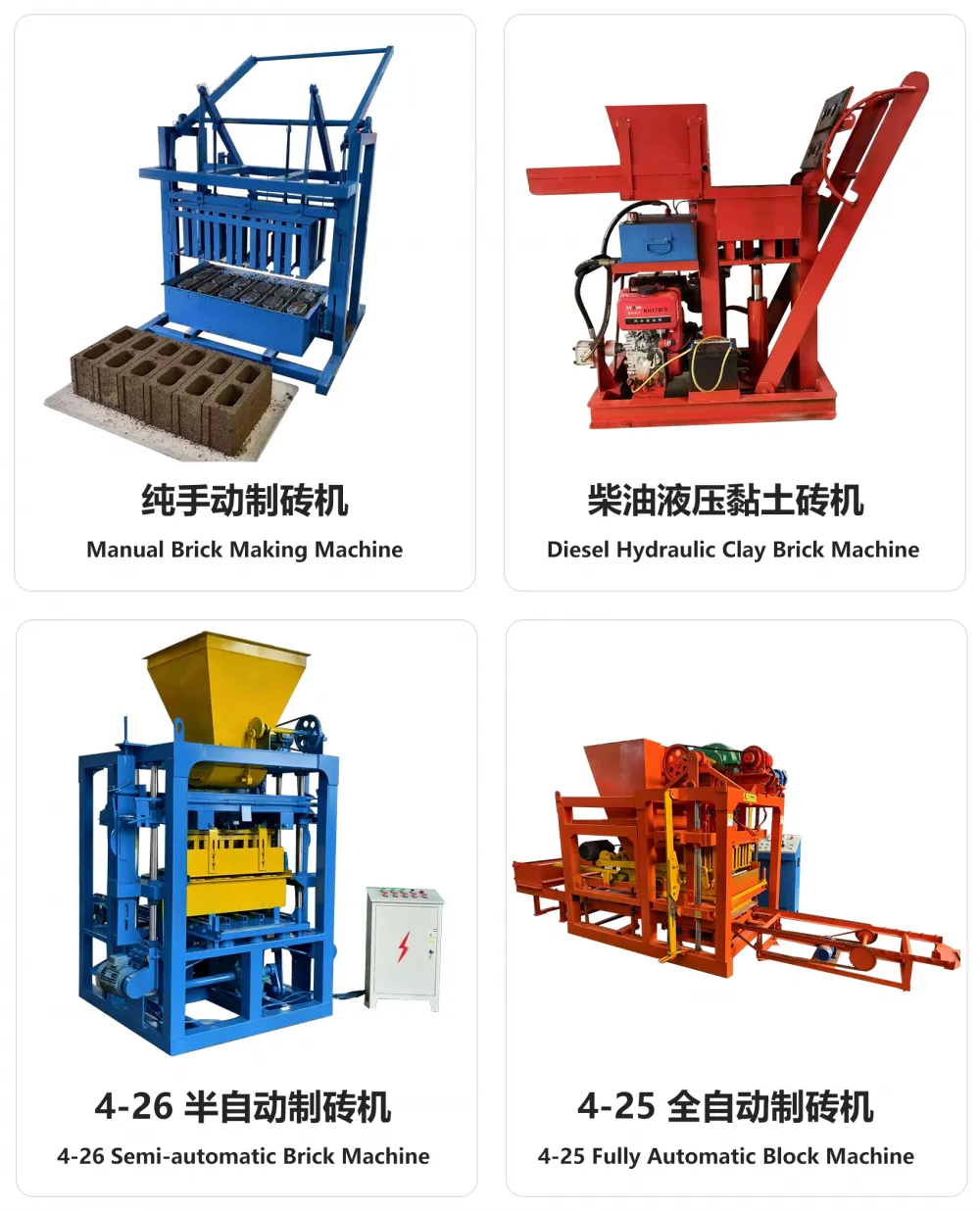

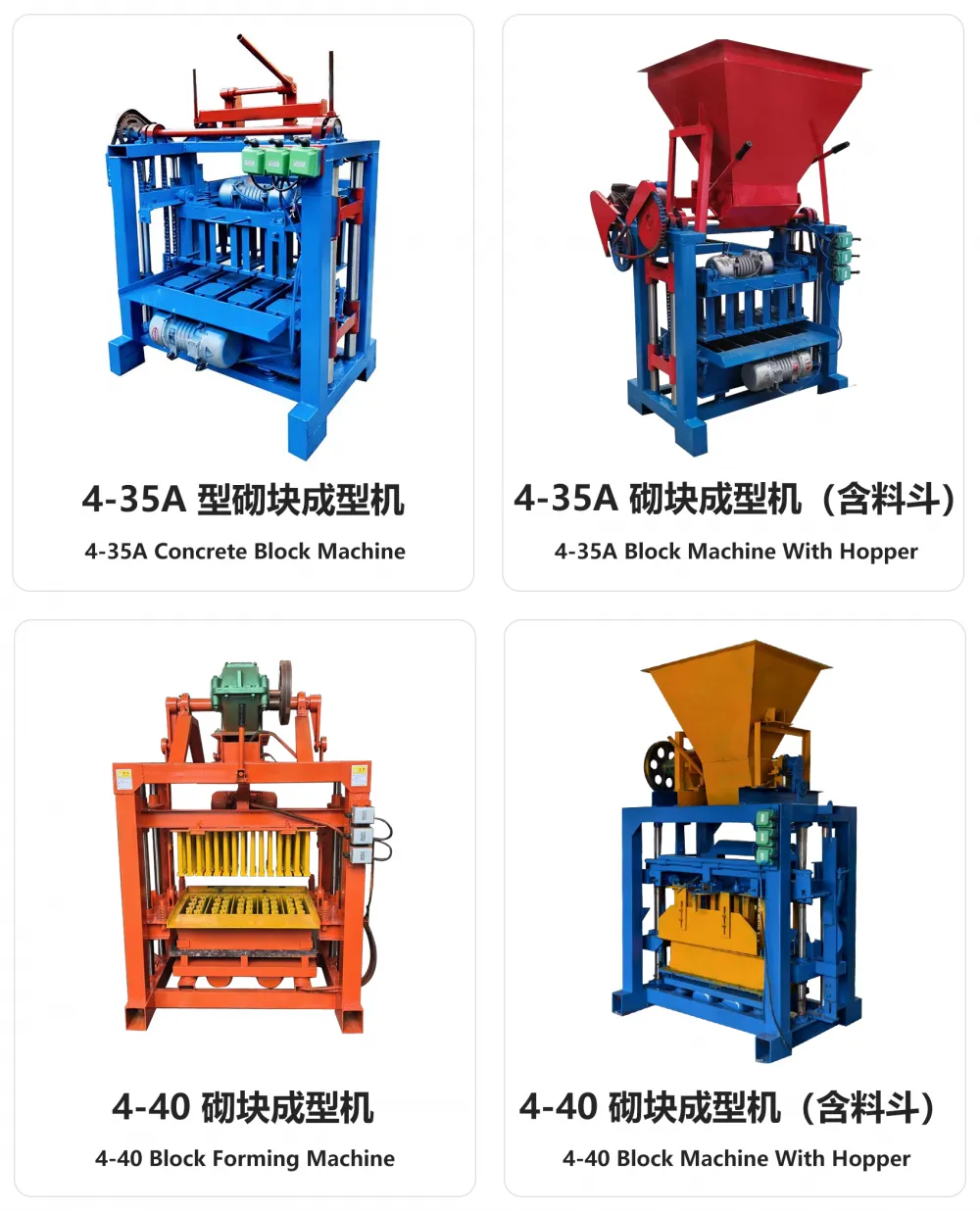

Full Range Models
Our factory specializes in brick making machinery, supplying complete series including manual type, electric hydraulic type, fully automatic type and diesel mobile brick machines, suitable for clay bricks and cement block production lines.
Company Introduction
Henan Panqi Heavy Industry Technology Co., Ltd. is located in Xingyang, Zhengzhou, with an independent production base in Wen County, Jiaozuo. We have focused on recycling & construction machinery for over 10 years, integrating independent R&D, manufacturing, global sales and after-sales service. We own a 15,000 ㎡ standardized production workshop and have passed ISO9001 quality management system certification.
Our core product line covers metal balers, metal shears, hydraulic waste balers, plastic shredders and solid waste sorting machines. We also supply matched solid waste crushing equipment and complete non-fired brick production lines with customized turnkey solutions. Our machines are widely sold to domestic factories and exported to Africa, Southeast Asia, South America and other overseas markets. We provide free site survey, customized solution design, on-site installation & commissioning service, and accept FOB bulk wholesale orders.
Delivery Scene
FAQ

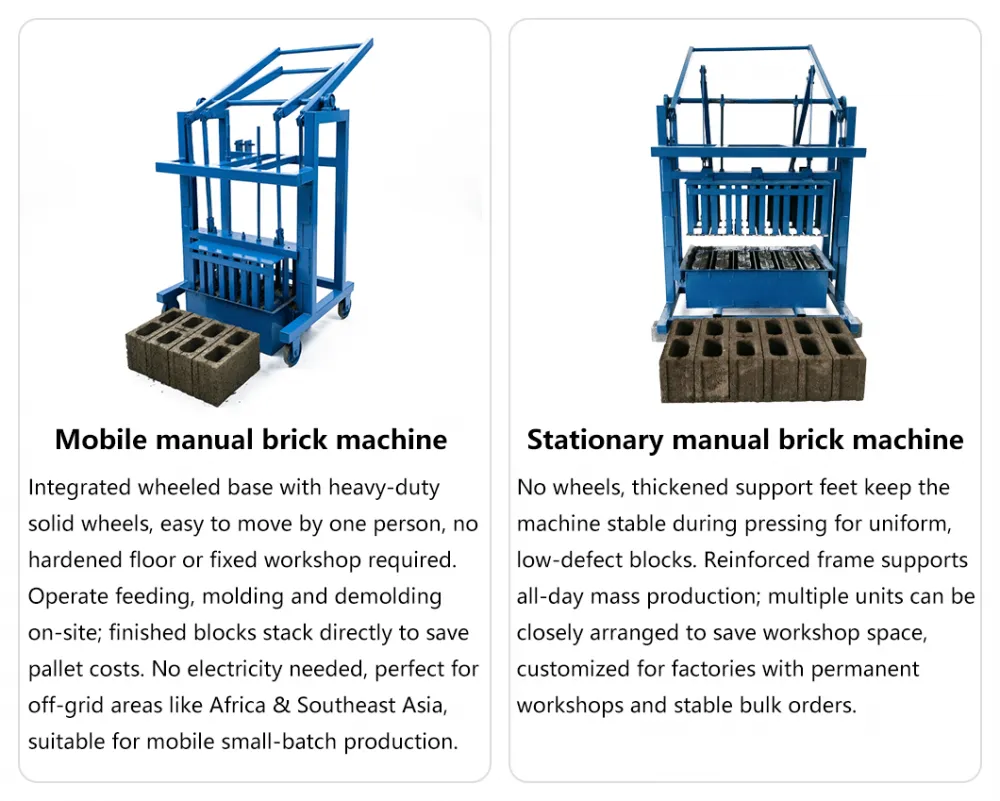

| ❓ How to choose between mobile model and stationary model? |
| Choose mobile type for field mobile production without fixed workshop; stationary model is better for long-term mass production inside fixed factory building. |
| ❓ Does this machine require electricity? Can it work in remote mountain areas without power? |
| 100% pure manual lever driving, no motor or electric circuit. It can work all day in mountain villages and off-grid construction sites with zero power supply. |
| ❓ One mold only produces one type brick? Is mold replacement complicated? |
| One mold matches one brick specification. The disassembly structure is very simple, one worker can finish mold replacement within 10 minutes. |
| ❓ What is the real daily output within 8 working hours with 30s molding cycle? |
| After deducting material feeding and rest time, stable 300-400 molding cycles every 8 hours. Total finished bricks depend on your matched mold size. |
| ❓ Machine total weight 350kg, can single person push the mobile version? |
| Equipped with thick solid load-bearing wheels, easy to push by one person on flat ground. Two workers recommended for rough dirt rural roads. |
| ❓ What is the maximum aggregate size allowed? Can large stones be used directly? |
| Only fine aggregate below 10mm is acceptable. Large stones must be crushed and screened in advance to avoid mold jamming and broken brick blanks. |
|
